Description

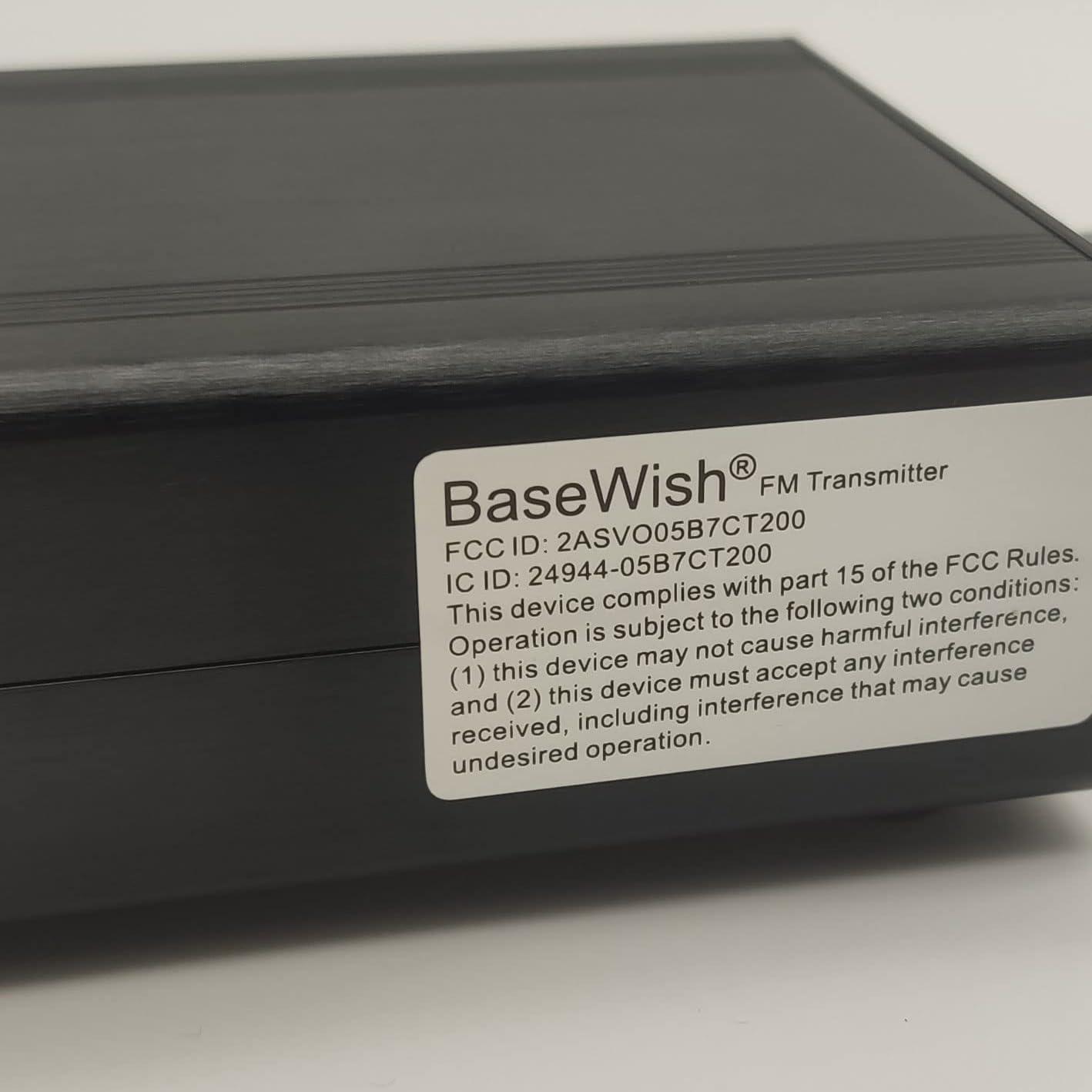

- FCC Certified(FCC ID: 2ASVO05B7CT200) with two power modes (0.5W and 0.1W).
- High Stability with next-generation integrated NC FM stereo radio transmitter chip BH1415, built-in PLL advanced modulation system, audio pre-emphasis, limiter and low pass filter circuit.
- Clear Stereo Sound with AT89C2051 and AT24C02 control panel, three power amplifiers (two 2SC3355 and one 2SC2053) to ensure great sound quality output effect.
- Excellent Heat Dissipation with high quality aluminum alloy material, lightweight and excellent heat dissipation.

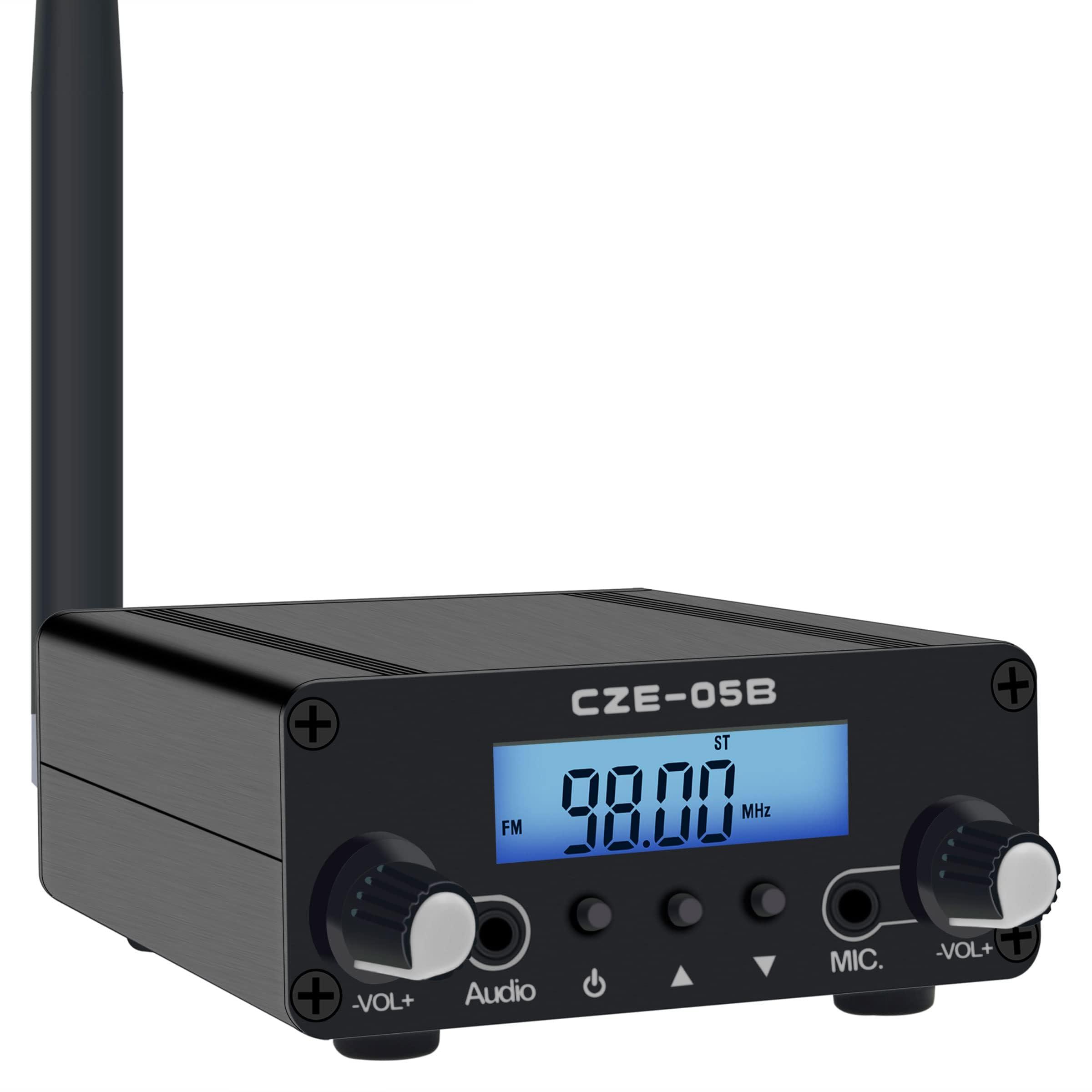

- Easy to Use with LCD display to show transmission frequency, easy to adjust and intuitive.
Specification:
Operating Voltage: DC 12V
Operating Current: Less than 0.5A
Two Power Level: 0.5W or 0.1W
Frequency Stability: 10PPM
Frequency Step: 100KHZ
Operating Temperature: -10~45
Frequency Deviation: Less than 75kHz (100%)
Clutter and Harmonic: Less than 60dB
Frequency Response50Hz-15000Hz
Package Included:
1x FM Transmitter
1x Power Supply
1x 3.5mm Audio Cable
1x English manual
