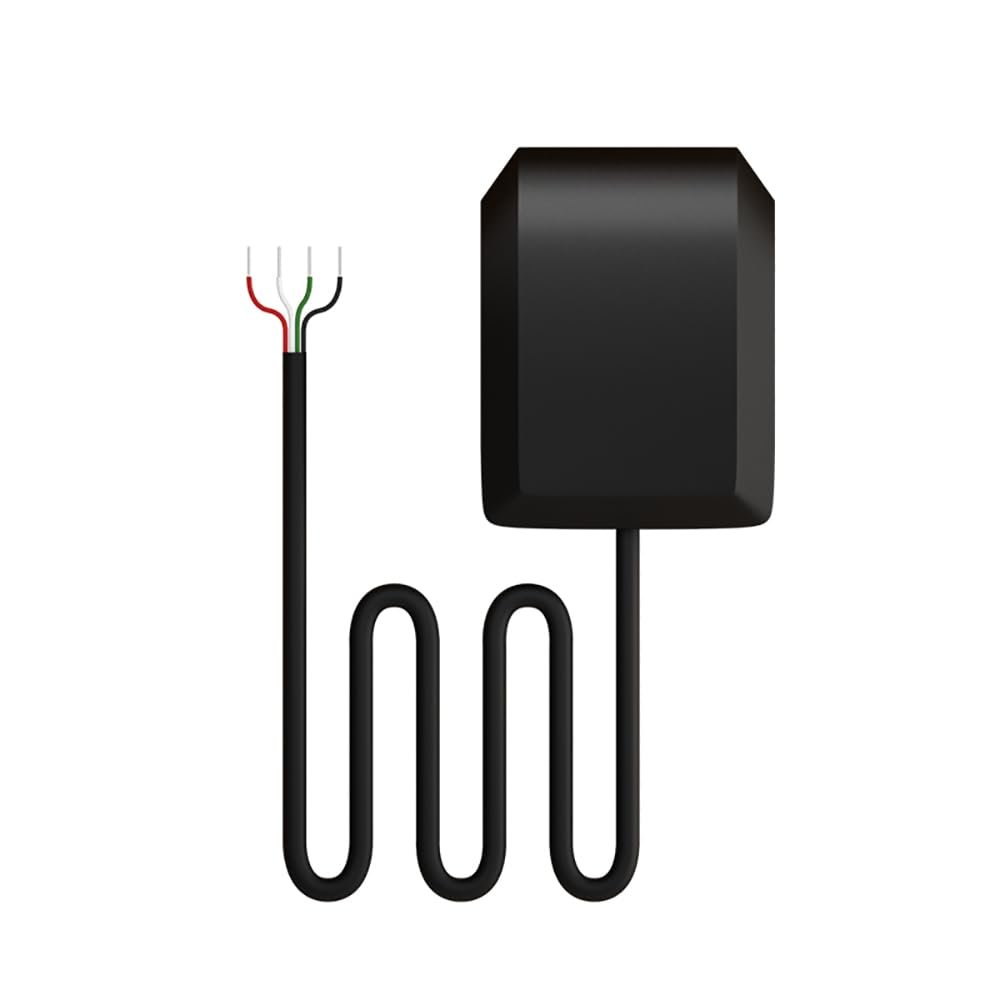

BDS/GPS/GLONASS/Galileo GNSS Positioning Module RS232/RS485/TTL E108-GN04G IP67 Waterproof Low Power Ceramic Antenna (RS232)

Description

• Application Scenario- Vehicle positioning and navigation equipment; Wearable devices, such as GPS trackers;UAV positioning, industrial computers, etc;Industrial equipment that requires GNSS positioning or navigation; Asset tracking;
• Support BDS/GPS/GLONASS/GALILEO multi-system joint positioning and single-system independent positioning; Support BeiDou B1I and B1C;
• The maximum positioning information update rate in single-system independent positioning mode can reach 25Hz; Support PPS output; Support A-GNSS service; Built-in reset controller; Support UART,GPIO,RS232,RS485 interface interface
• E108-GN04G series with shell, support IP67 waterproof; With active antenna detection and protection; Output format: Support NMEA 4.11
• High sensitivity: cold start -148dBm, hot start -159dBm, recapture -160dBm, tracking -167dBm' The software and hardware are compatible with those of other manufacturers, which greatly reduces the user's development time

The E108-GN04 series is a high-performance, highly integrated, low-power, low-cost multi-mode satellite positioning and navigation module that supports BDS/GPS/GLONASS/GALILEO satellite positioning. It is with small in size and low power consumption. It can be used in GNSS positioning applications such as vehicle navigation, smart wearables, and drones. It also provides software and hardware interfaces that are compatible with other suppliers modulers, greatly reducing the user's development time cycle. The module adopts the integrated design of RF base band, integrating DCDC, LDO, RF front end, low power application processor, RAM, Flash storage, RTC and power management, etc. It can power RTC and backup RAM through button battery or farad capacitor to reduce the first positioning time. It also supports multiple ways to connect with other peripherals, supports UART, GPIO,RS232,RS485 interface, if you need I2C, SPI,USB interface, please contact customer service for customization.
