Bias Tee Broadband Amplifier Module 0.1-200MHz for Optical Modulation

Description

• Power: Bias tee utilizes RF power from active antennas supporting DC bias and coaxial feeds for efficient signal transmission.
• Installation: RF microwave coaxial module has fitted connectors and excellent insulator material for straightforward setup.
• Reliability: DC blocker in the bias tee prevents DC current entry enhancing system longevity and component protection.
• Input: RF terminal input allows isolated output and efficient data injection via T structure for clear communication.
• Amplification: Broadband amplifier module amplifies frequencies from 0.1 to 200MHz ensuring effective signal transmission.

Specification

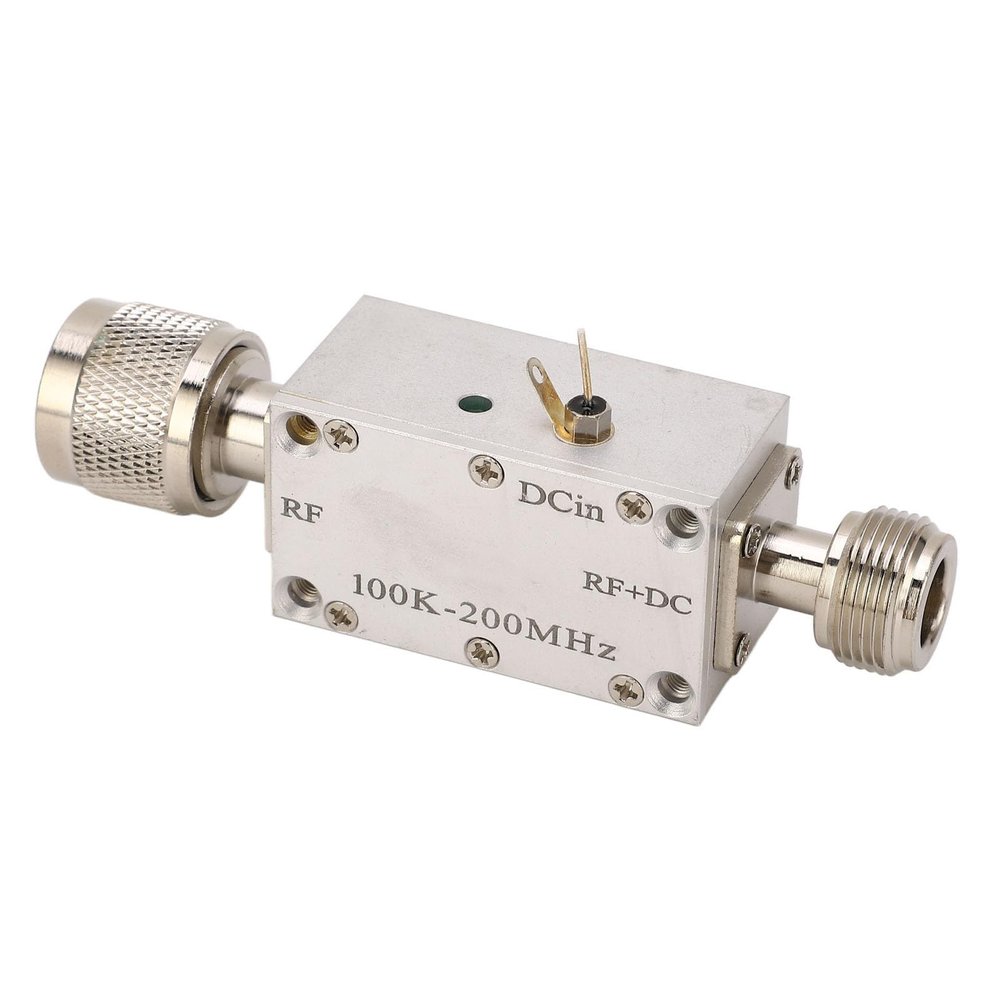

Item Type: Bias Tee
Material: Aluminium alloy
Operating Parameters:
1. Frequency Range: 100KHz-200MHz
2. Insertion Loss: 0.05dB at1MHz 0.08dB at100MHz (refer to S11 and S21 parameters) for VSWR and transmission parameters
3. Maximum Voltage: 50V
4. Maximum Current: 1000mA
5. RF Connector: N head (default shipping capacitor end is male, feed end is female)
6. System Impedance: 50 wiring method

Wiring methods
1. DC: External DC power supply
2. RF: RF terminal (this port can only transmit RF signals)
3. RF and DC: RF DC bias (this port can transmit both RF and DC bias)
4. GND Piece: Common ground for DC supply
5. VCC Feedthrough Capacitor: of the DC supply

Package List
1 x Bias Tee
