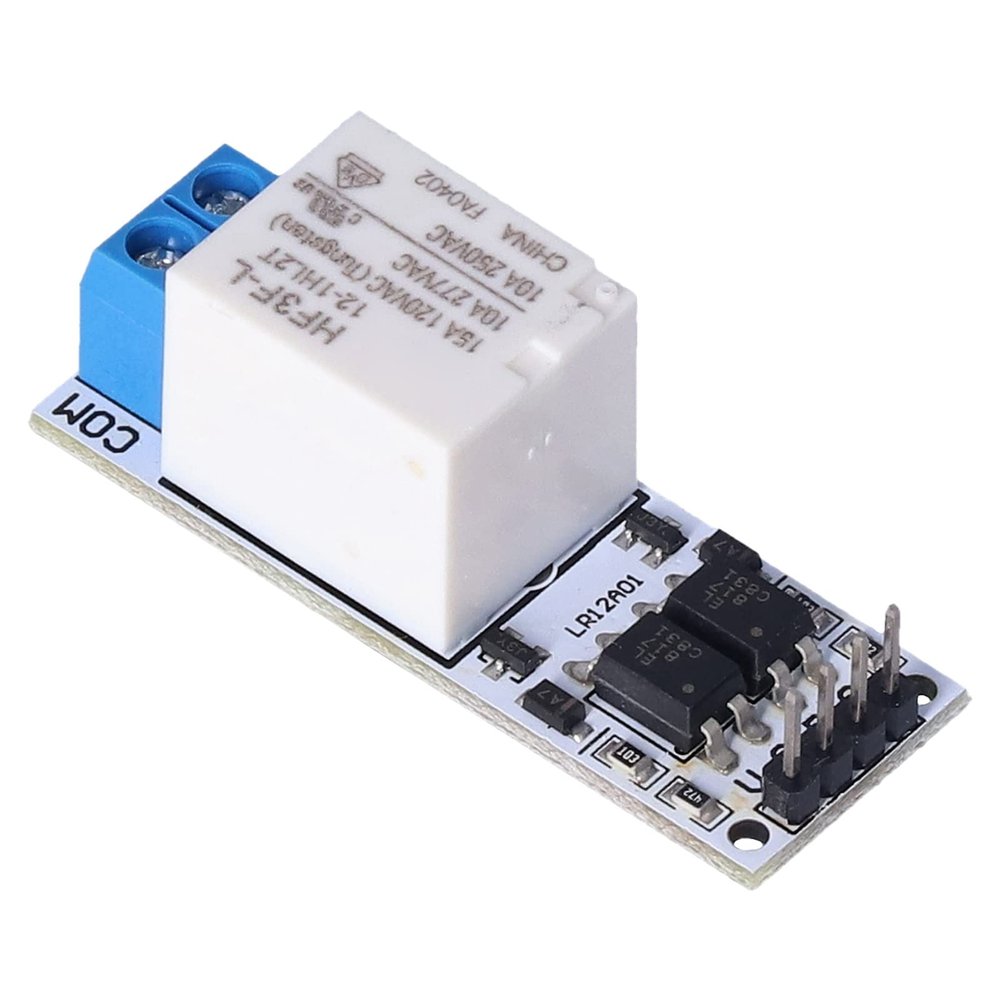

Bistable Latching Relay Module, Self Locking Hold Switch DC12V 10A LR12A01 for Time Control, Power Saving, 18 Functions, Compatible with CE030 FRM01 Relay Module

Description

• Power Hold Switch: Support power hold switch, you can select energy saving mode, very practical
• Bistable Self Locking Actuator: Latching relay module adopt bistable self locking Actuator, possess
• 18 Functions: A total of 18 functions can be selected, the function is compatible with CE030 FRM01 relay module
• Excellent Performance: Self locking flip flop come with stable structure, excellent performance and long service life
• Time Control Between 0.1s-270h: Time control is adjustable between 0.1 second and 270 hours, which is a wide range

Specification:
Item Type: Latching Relay Module
Model: LR12A01
Working Voltage: DC 12V (8-18V)
Working Current: 60mA(only provide current when the state changes)
Standby Current: 20A(or standby power consumption)
Charging Current: AC 250V/10A, DC 30V/10A
Actuator Mode: Low pulse Actuator
Module Interface:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. R: Reset (relay closed)
4. S: Setting (relay on)
Relay Output:
1. NO: Normally open the relay interface
2. COM: Common interface relay

Package List:
1 x Latching Relay Module
