Description

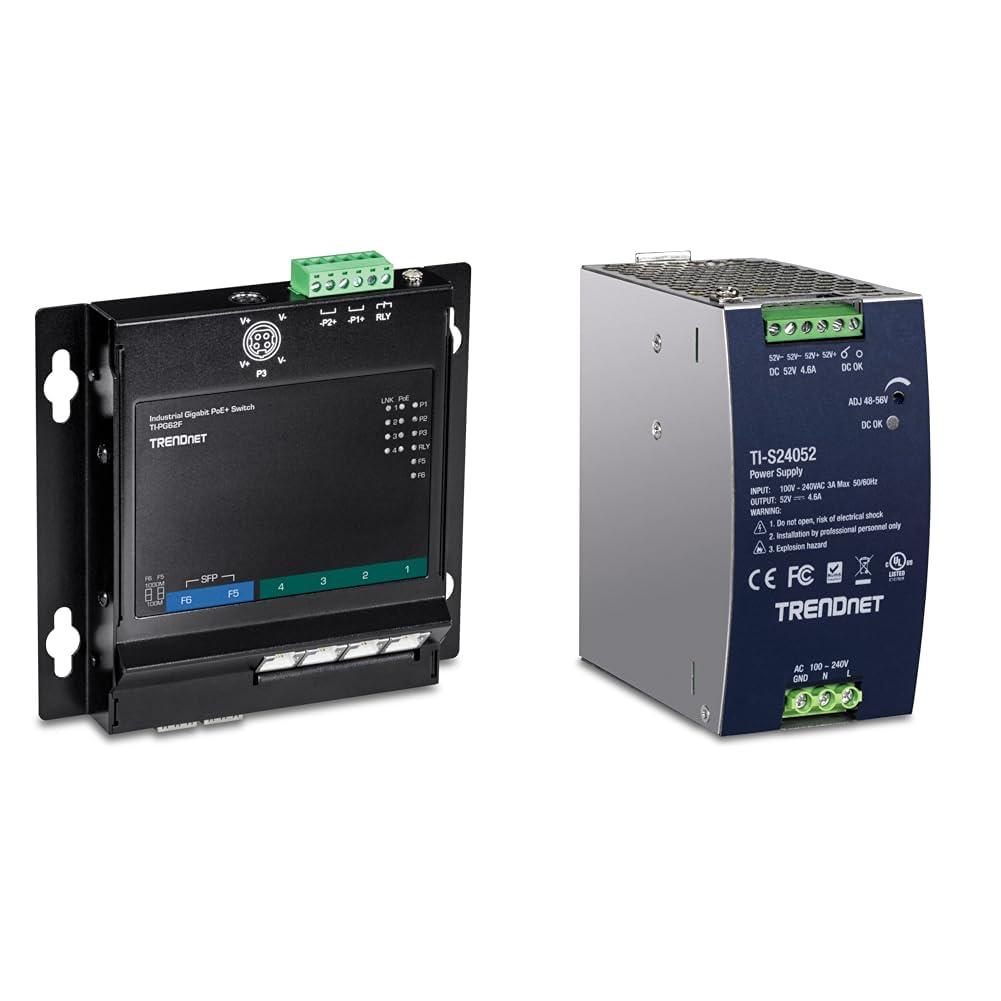

- DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 2 x Gigabit SFP slots (100/1000Base-FX); 6-pin removable terminal block; LED indicators; DIN-Rail/Wall/Magnet mount; Grounding point
- DEVICE INTERFACE: Input: 90 264V AC, 47 63Hz, 3.15A 127 370V DC; Output: 240W, 48 56V, 0 4.6A; DIN-rail: TS-35/7.5 or 15
- WALL-MOUNTED FRONT ACCESS SWITCH: The wall mountable flat switch provides front access to ports and power interfaces for easier installation. Ideal for cabinet installations where space is limited.
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
- POE+ POWER: A 120W PoE power budget and 12 Gbps switching capacity supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- HARDENED INDUSTRIAL DESIGN: Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 75 C (-40 167 F) for industrial environments.
- EXTREME ENVIRONMENT READY: Designed for industrial environments with an operating temperature range of -25 70 C (-13 158 F)
- MOUNTING HARDWARE: This 6 Port Gigabit PoE+ switch includes a DIN-Rail bracket and magnetic wall mount kit.
- ACTIVE PFC: Built-in active Power Factor Controller (PFC, PF > 0.98) helps eliminate unusable reactive power
