Description
- Number of Poles: 1 - Number of runs: 2 - Number of taps: 2
- 760 amps 600 Volts rated
- Application: industrial control feeder, HVAC system and wire ways
- Provided capability to create as many Poles as required, up to 30 tap Conductor accommodated
- UL Listed and CSA Certified and RoHS compatible

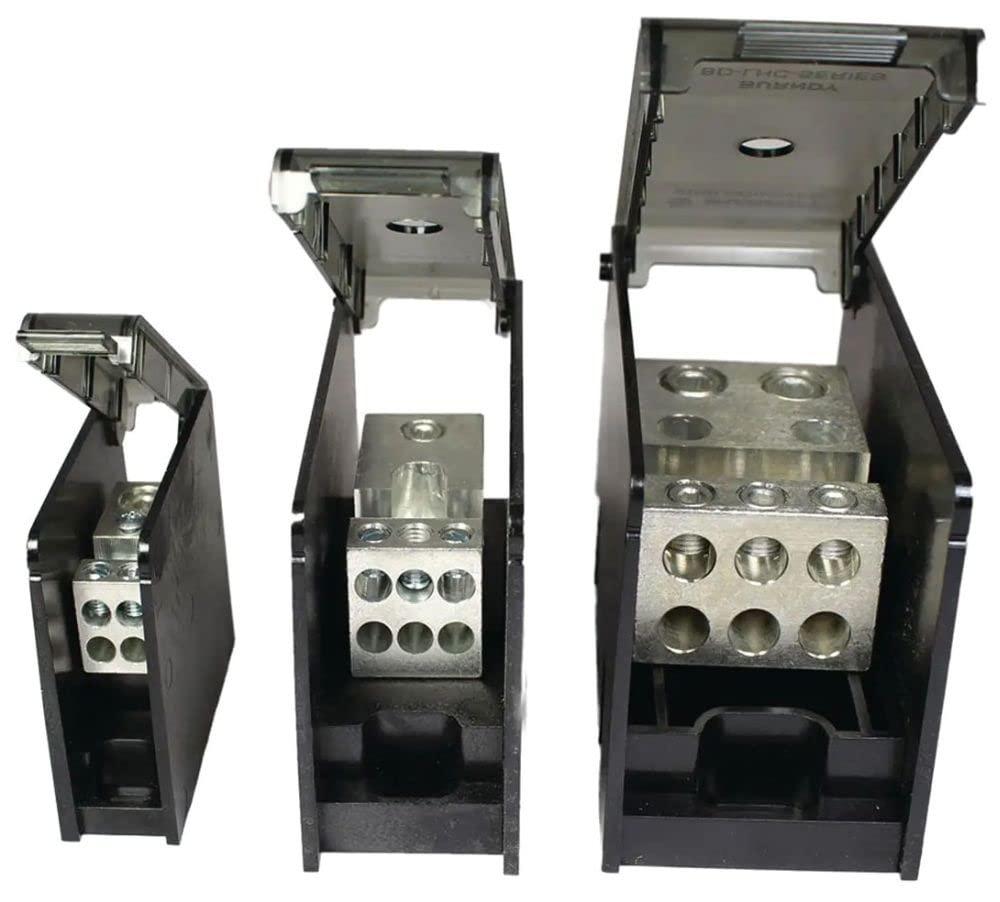

The burndy power distribution blocks are listed to the power distribution block standard UL 1953. They contain the same features and characteristics as the non-listed blocks however, these have spacing's that are suitable for installations in most industrial control panel Feeder and branch circuits, HVAC systems, and wire ways (with optional cover; sold separately). they are available in one, two, or three pole confi gurations. An adder is also available with optional end barrier (sold separately), to allow user customized configurations. Burndy was founded on July 19, 1924 as burndy engineering company in Brooklyn, new York, by science historian and civic leader Bern dibner. The name burndy is a contraction of dr. Dibners first name and last initial, Bern D. dr. Dibner designed and patented a universal connector, requiring Neither soldering nor welding thereby enabling a Unified grid. Burndy today is a global organization that has pioneered in the manufacture of connectors, fittings and tools for electrical utilities, commercial, industrial and residential contractors, maintenance and repair companies, as well as the telecommunication and renewable energies market.
