CANADUINO Atmega32u4 Pro Micro - 5V 16MHz - Compatible with Arduino IDE

Description

• Pro Micro Atmega32u4 is compatible with Arduino and uses the same MCU as the Leonardo Module. The integrated USB transceiver makes an additional USB-TTL UART bridge IC obsolete and even adds Keyboard and Mouse functionality. Pro Micro Atmega32u4 Footprint is 25% smaller than Arduino Nano, and only has half of the Nano's height.
• 9x analog IN; 12 digital IO; 5x PWM Out; Logic Level 5V, Power Supply 6-9V; Clock Speed 16MHz; Micro-USB Port; Please see Sparkfun website for more details
• Dimensions: Size 34 x 18 mm; Weight 2.3 g
• Content: Pro Micro Atmega32u16 Module; 2x male Pin Header (not assembled); Micro-USB Cable ASIN B08NWK16NR optional
• NOTE: Visit our Amazon Store for more exciting Electronics. For Downloads, Documentation and Product Support please visit UNIVERSAL-SOLDER Website.

Pro Micro Atmega32u4 is compatible with Arduino IDE, very small and powerful microcontroller development board. The integrated USB transceiver makes an additional USB-TTL bridge IC obsolete. Together with the micro USB port, Pro Micro Atmega32u4 is only 4 mm high. With dimensions of 34 x 18 mm is Pro Micro Atmega32u4 only 3/4 of the size of an Arduino Nano, and only half of its height. The tiny little Pro Micro Atmega32u4 board does all of the Arduino tricks that youre familiar with:
9 channels of 10-bit ADC, 5 PWM pins, 12 digital I/O as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favourite Arduino-compatible boards but this little guy can go just about anywhere.
There is a voltage regulator on board which can accept a power supply of 6-9VDC (max. 10V). Make sure to connect the input voltage to the RAW pin and not VCC (5V).

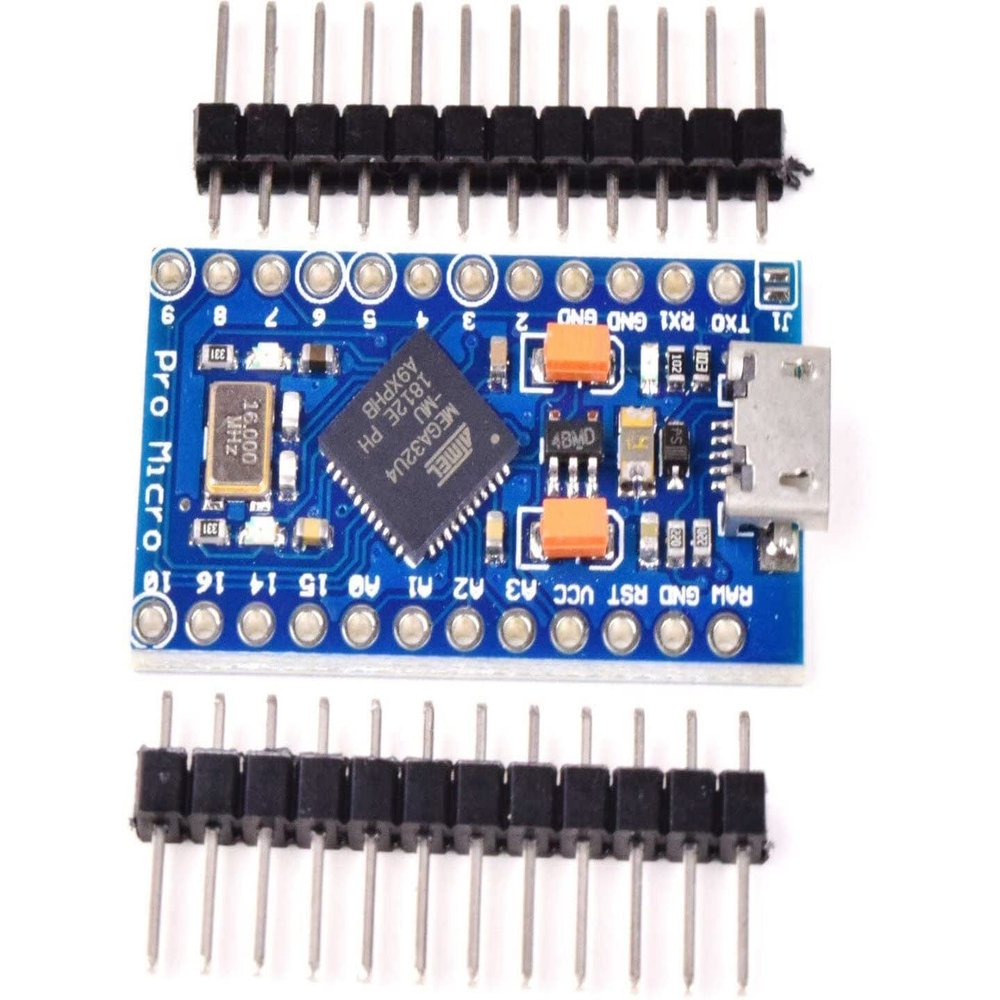

The Pro Micro board is originally developed as open hardware by the company Sparkfun. It comes with the Atmel Atmega32u4 MCU and runs with 16MHz. A pair of pin headers are included, as shown in the picture. Features: ATmega32U4 running at 5V/16MHz Supported under Arduino IDE v1.0.1 and above On-Board micro-USB connector for programming 9 x 10-bit ADC pins 12 x Digital I/Os (5 are PWM capable) Rx and Tx Hardware Serial Connections
