Description
- From the Authorized Distributor Zack Electronics
- HDTV-SDI 75 Ohm Serial Digital Video Coaxial Cable.
- Solid Copper Center Conductor.
- Foam dielectric PE with dual Copper Braid for Flexibility.
- Precision Coax 100% Sweep Tested.

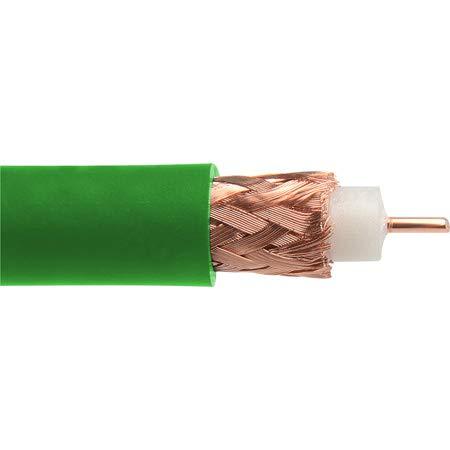

The L-5CFWGN-984 is a 75 ohm flexible digital video coaxial cable. It features a solid copper center conductor and dual copper braid for flexibility in the cable. This cable is ideal for mobile applications. Features: HD-Serial Digital Video Mobile Applications HDTV Upgrades Broadband Facilities SMPTE 259M, 292M,424M Solid Copper Center Conductor Foam PE Dielectric Dual Copper Braid for Flexibility 2 Sizes Available Precision Coax 100% Sweep Tested Specifications: Standard Length: 984 Feet (300 Meters) Weight: 17.66 lbs (8.1 kg) Nominal O.D.: .303" (7.7 mm) Conductor Material: Bare copper Dielectric Insulation Type: Foam PE Insulation O.D: .193" (4.9 mm) Shield Material Coverage (mm/ends/carrieers): 0.12TA/9/24 (96% or more) Conductor D.C.R: 2.3 Ohm/100m Shield D.C.R: 0.5 Ohm/100m Nominal Capacitance: 17 @ 1KHz (55 pF/m) Nominal Impedance: 75
