Description
- Supports AHD, TVI, CVI, CVBS, IP Video inputs
- Max. 24Ch ip camera inputs, each channel up to 5mp
- Up to 5mp resolution recording
- Supports HDMI and VGA output
- Smart search & playback
- Supports two HDD, each up to 8TB
- 2TB HDD included

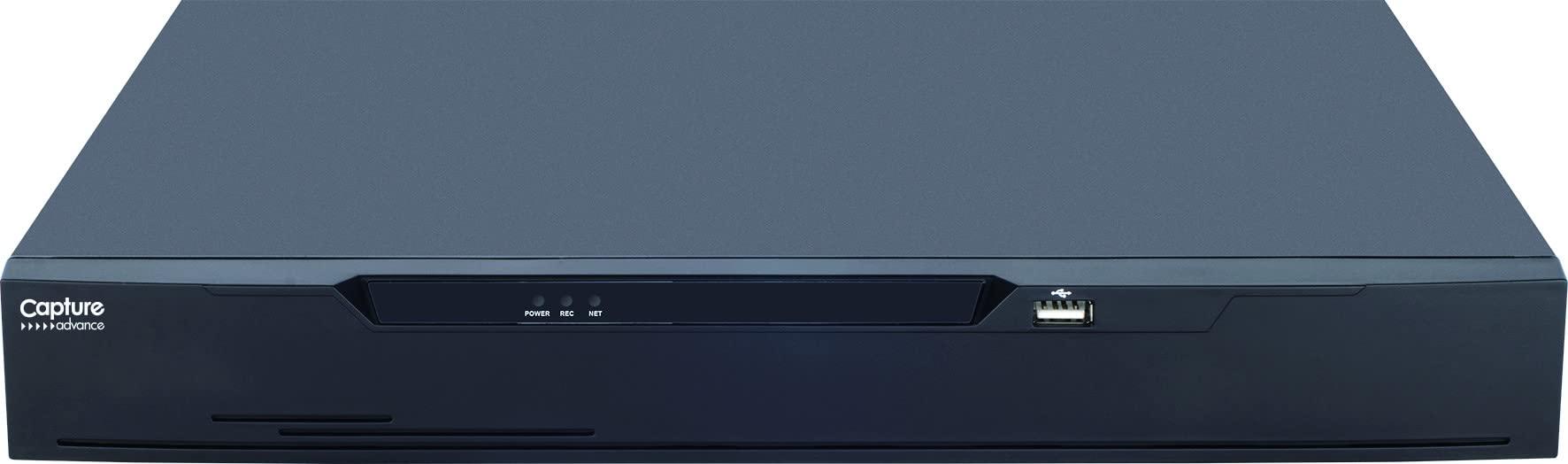

Capture Advance R2-HDVR16C2T 16CH HD Digital Video Recorder; Supports HDMI and VGA Output; Supports up to 2 HDD, Each up to 8TB; 2TB HDD Included
The R2-HDVR16C2T is a 16 channel H.265 HD Digital Video Recorder (2TB) that offers flexibility to connect HD Multi Format and Network cameras. This new generation DVR is widely applied in the areas of public security, education, communication, transportation, finance/banking and various other installation applications.
Key Features:
- Supports AHD, TVI, CVI, CVBS, IP Video inputs
- Max. 24Ch ip camera inputs, each channel up to 5mp
- Up to 5mp resolution recording
- Supports HDMI and VGA output
- Smart search & playback
- Supports two HDD, each up to 8TB
- 2TB HDD included
Specifications:
- Analog Video Input: 16-CH BNC
- AHD Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
- TVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
- CVI Input: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
- CVBS Input: PAL/NTSC
- IP Video Inout: 24-channels, each up to 8MP
- Audio IN/OUT: 2/1
- HDMI Output: 3840x2160, 1920x1080, 1440x900, 1280x1024
- VGA Output: 1920x1080, 1440x900, 1280x1024
- Encoding Resolution: 8MP, 5MP, 4MP, 1080P, 720P, 960H, D1, CIF
- Frame Rate: 8MP-N@8FPS, 5MP@7FPS, 4MP@8FPS, 1080P@15FPS
- Network Interface: 1 RJ45 10M/100M
- Remote Users: 4
- Sata: 2 Sata Interfaces
- Capacity: Up to 8 TB Capacity
- Power Supply: DC12V/2A
- Overall Dimensions (WxHxD): 13.78 x 1.93 x 12.01 inches
