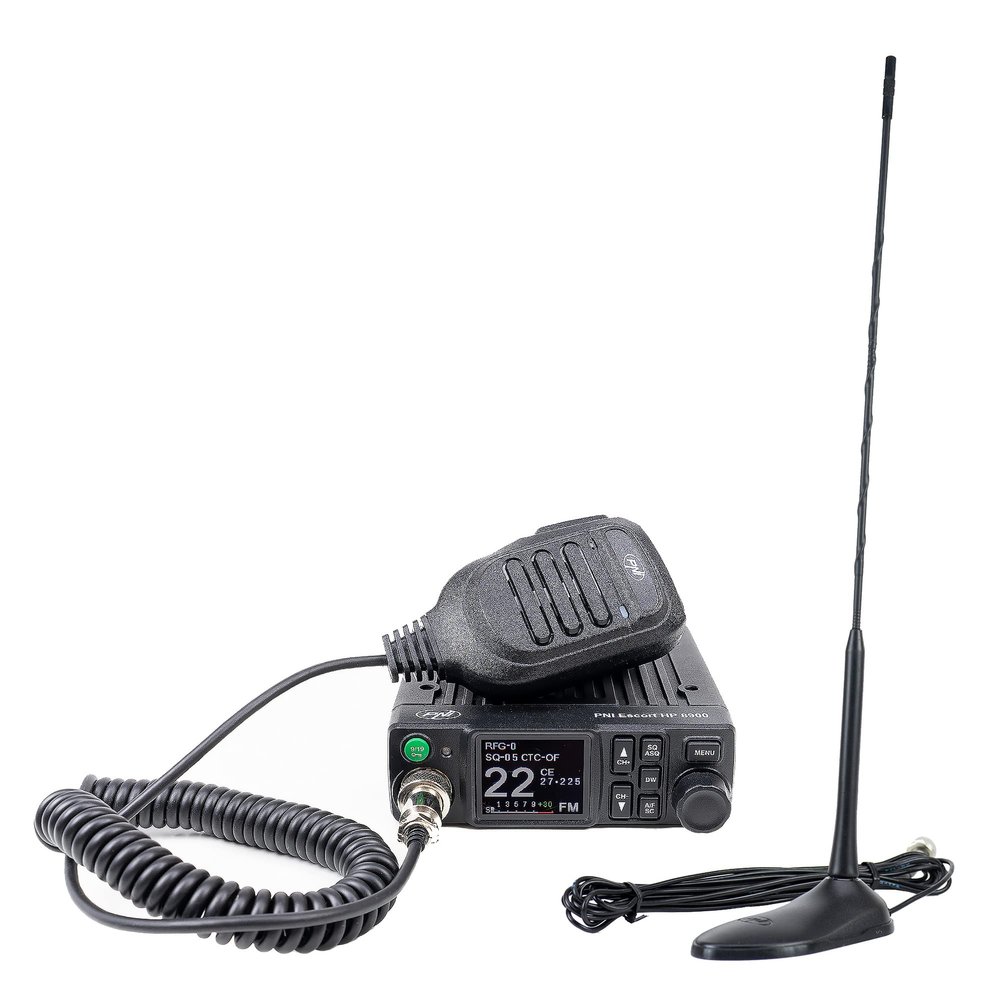

CB PNI Escort HP 9700 USB Radio and CB PNI Extra 45 Antenna with Magnetic Base

Description

• By changing the norm, the procedure is easy to perform with a simple key combination, and by changing the modulation (AM / FM) according to the norm, the CB PNI Escort HP 9700 radio station can be used in several European countries, such as Romania, Italy, Spain, UK, Germany, Poland etc.
• CB 9700 PNI Escort CB Radio allows for the most accurate control over CB band-specific background noise. The 28-level adjustable SQ function and 5-level ASQ allow the user to filter and eliminate noise, making communication clearer.
• The 9-level RF Gain function allows control over the reception frequency, reducing distortion. The ANC (Automatic Noise Canceling) function automatically extracts and cancels the noise level on the reception.
• The PNI Extra 45 antenna is easy to install, by simply screwing the spike on the magnet fixed on the car's dome, but also by calibrating it, by rotating the tip with a screw, until the desired performances are obtained. It is recommended that the adjustment / calibration of the antenna be performed by specialized personnel with the related equipment.
• The PNI Extra 45 antenna has a special aerodynamic design that allows air to slide around the spike, eliminating wind noise.

1.Radio CB PNI Escort HP 9700 USB, ANC, ASQ, 12V / 24V power supply, cigarette lighter plug included
Product identification
Manufacturer of PNI
Product code PNI-HP9700USB
CB radio product type
General characteristics
AM / FM band type
Channel 40
Frequency 26,965 - 27,405 MHz
Microphone type (pins) 6 pins
Sensitivity (20dB SINAD) greater than 1 V AM / FM
4 W emission power
70% -90% (AM) / 1.9KHz (FM) modulation
12 V / 24 V power supply
Dimensions (W x H x H / Weight) 115 x 150 x 38 mm / 0.8 kg
Montage 1DIN
Special features
Channel scan
RF Gain 9 levels
ASQ 5 levels
Keypad lock
Urgent channel
ANC (Noise Canceling) noise filter
Blue multicolor screen
Manual squelch Yes, 28 levels
Operating temperature -26 C ~ + 60 C
Display Yes
LCD display type
Channel monitoring
Use, destination by car, truck, or at home
Rear panel connections
Additional speaker connection
Front panel connections
USB port
The package contains
CB radio
Microphone
CB radio mounting bracket and screws
Microphone holder and screws
Power cord
Lighter plug
User manual

2. CB PNI Extra 45 antenna, with magnet included, length 45 cm, SWR 1.0, 26-30MHz, 150W, fiberglass
Product identification
Product code PNI-EXTRA45
CB work band
Product color (spike) Black
General characteristics
Working frequency 26 - 30 MHz
Number of channels 80
Maximum applied power 150W
S.W.R. minimum in the center of the band 1.0
Length 45cm
Impedance 50 Ohm
Material Fiberglass
PL connector type
Cable length 4m
Weight 0.265 kg
Dimensions Height 50 cm
Vertical polarization
Working distance 10 km
Operating temperature -26 C ~ + 60 C
The package contains
CB radio antenna
RG58 cable No.
Cable RG174 D 4 m
PL259 socket
Magnetic base
