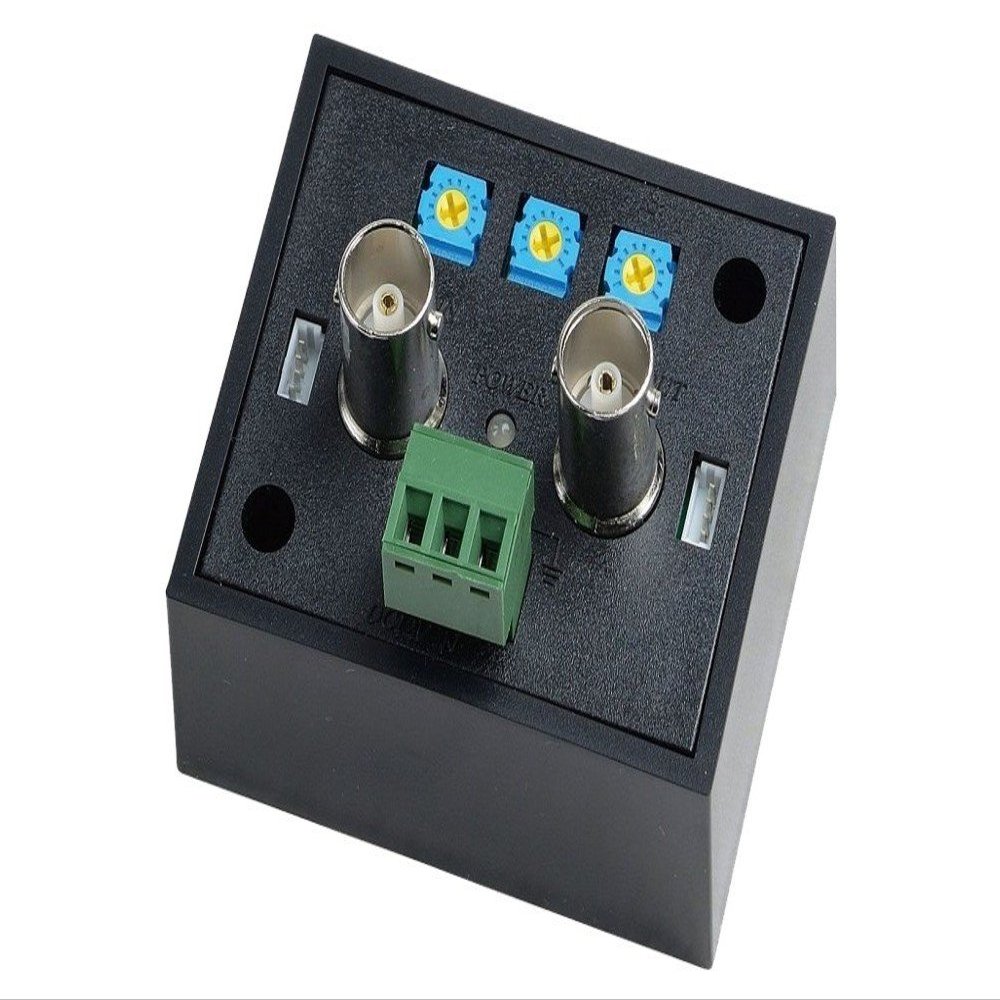

CCTV Camera Pros AMP-101HD HD CCTV Camera Video Amplifier, AHD HD-TVI HDCVI, RG59 BNC in/Out, HD Security Camera Amp

Description

• Multiple Video Formats Supported - This amplifier is capable of supporting multiple video formats including AHD, HDCVI, and HD-TVI in addition to Analog CCTV (CVBS).
• Single Unit Amplification - Amplification as far as 800 meters / 2600 feet is possible when using one amplifier with AHD and HDCVI cameras.
• Multiple Unit Amplification - Multiple amplifiers can be used on a single cable run to extend the range even further.
• PAL / NTSC - This amplifier supports both PAL (European standard) and NTSC (North American standard).
• Power Supply Included - A 12V-DC power supply is included and can power up to three AMP-101HD amps using the including power jumper cables.

The AMP-101HD is an HD CCTV camera video amplifier that works with the following camera types: AHD, HD-TVI, HDCVI, and analog CCTV (CVBS). This is a single channel amp that uses a BNC video input and output. It is designed to be used with 75ohm RG6 or RG59 coax cable. 1080p AHD and HDCVI video transmission can be boosted up to 800 meters (2600 feet) and 1080p HD-TVI cameras can be boosted up to 600 meters (2000 feet) using one amplifier. This device also works with 720p resolution cameras. NTSC and PAL formats are both supported.
Multiple amps can be combined on a single cable run to extend the video transmission distance even further. For example, one AMP-101HD can be installed on the camera side of the cable run and another on the DVR or monitor side to boost AHD and HDCVI camera up to 1500 meters / 5000 feet and HD-TVI up to 1200 meters / 4000 feet.
A 12V-DC power supply is included. Up to 3 units can be powered from the same power adapter using the included power jumper cables.
This product does NOT work with HD-SDI security cameras.
