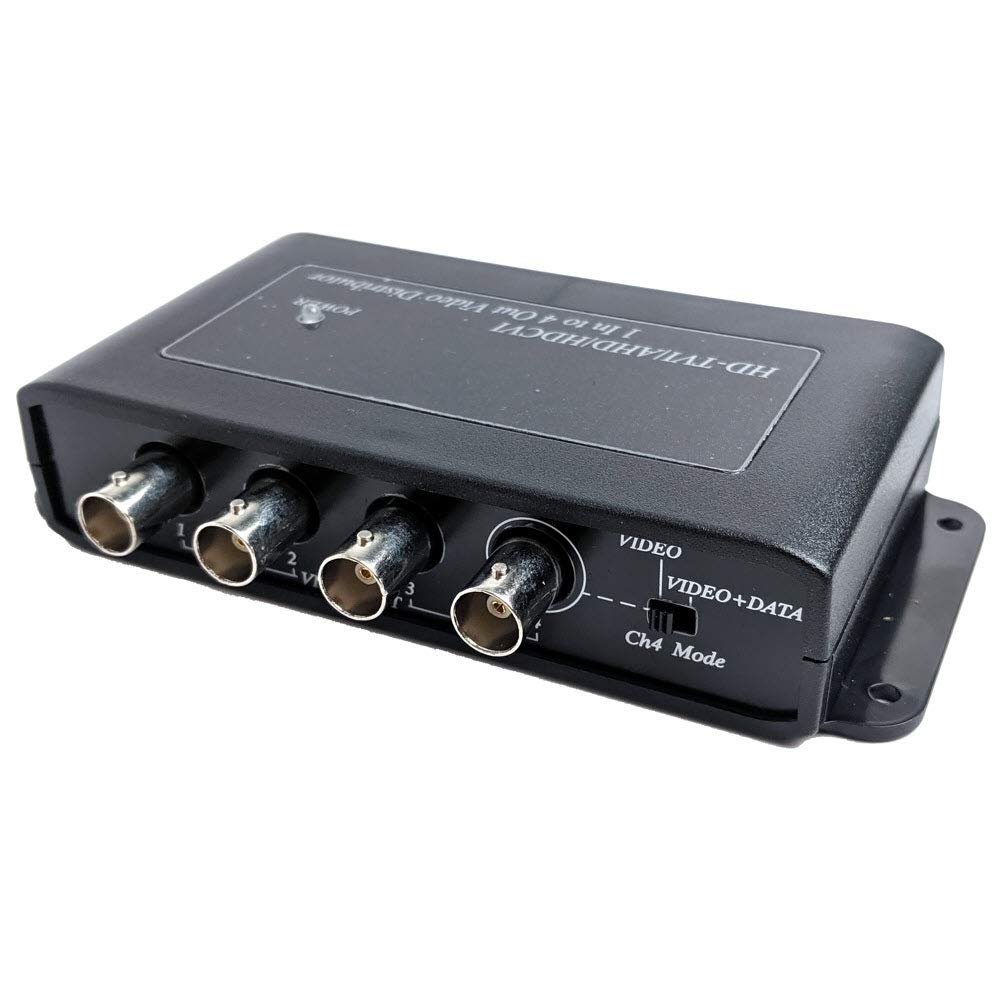

CCTV Camera Pros VDS-104HD HD CCTV Video Distribution Box | 1 to 4 BNC Security Camera Splitter | AHD HD-TVI HDCVI | Surveillance DVR Loop Out | RG59 / RG6 Coaxial Cable Transmission

Description

• 1 BNC Video Input / 4 BNC Video Outputs - Split the video signal from one camera to multiple monitors or DVRs.
• This splitter supports multiple HD camera formats including AHD, HD-TVI, and HDCVI in addition to standard Analog CCTV cameras.
• Multiple Resolutions Supported - This unit is capable of supporting 5 Megapixel, 4 Megapixel, 3 Megapixel, 1080p, 720p, 960H, D1, and CIF video resolutions.
• OSD Control - Output channel 4 has a video + data option that allows a DVR to control the OSD (On Screen Display) of some HD security cameras.
• Power Supply Included - A 12V-DC power supply is included with this unit so that it is entirely plug-and-play.

The VDS-104HD is a one to four channel CCTV video distribution box that is compatible with analog CCTV cameras and HD security cameras - HD-TVI, AHD, and HDCVI. The following video resolutions are supported: 5 Megapixel, 4 Megapixel, 3 Megapixel, 1080p, 720p, 960H, D1, CIF. This video splitter has one BNC video input and distributes video from that input to 4 BNC outputs.
This is an excellent device for surveillance video applications that require a security camera to be connected to multiple monitors or DVRs. Output channel four has a video + data option that allows a DVR to control the OSD (On Screen Display) of some HD security cameras. A 12V DC power supply is included with this splitter.
This product is made for use with HD-TVI, AHD, and HDCVI cameras and does NOT work with HD-SDI security cameras.
