Description

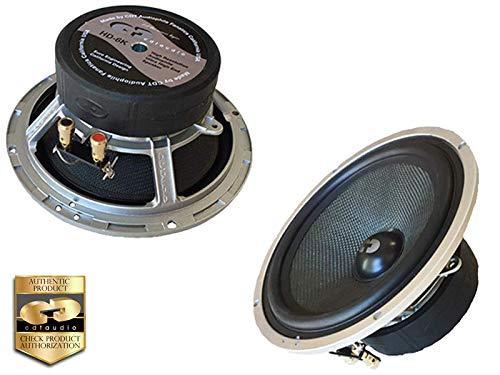

The main goal of CDT Chrome High-Resolution Audio mid-woofers is to interpret and provide superior solutions to the acoustical situations characteristic of car audio.
The devil is in the details and so is the magic. The Chrome High-Rez mid-woofers fabulously smooth, Kevlar cones extract all the music and add no coloration to the sound. Experience airier crispier sound stage. They start and stop on a dime for the most lucid recreation of the musical experience.
Technical specifications
Diameter 6.7"
Sensitivity 90.8dB/1W
Power handling 200WRMS with 100Hz HPF
Frequency Response 55-5000 Hz
Nominal Impedance 2 Ohms
Voice Coil Diameter 1.0" (25.4mm)
Peak Xmax 10mm
Xmax = 5mm
Thiele-Small Parameneters
Fresh Air Resonance 52.3Hz
Voice Coil DC Resistance 3.2 Ohms
Voice Coil Inductance at 1kHz: 0.5mH
Mechanical Q (Qms) 2.157
Electrical Q (Qes) 0.557
Total Q (Qts) 0.443
Compliance Volume (Vas) 13.55; 0.478 cu ft
Moving Mass, Diaphragm 10.65 Ger
Motor Force Factor 5.124Tm
Pair
The devil is in the details and so is the magic. The Chrome High-Rez mid-woofers fabulously smooth, Kevlar cones extract all the music and add no coloration to the sound. Experience airier crispier sound stage. They start and stop on a dime for the most lucid recreation of the musical experience.
Technical specifications
Diameter 6.7"
Sensitivity 90.8dB/1W
Power handling 200WRMS with 100Hz HPF
Frequency Response 55-5000 Hz
Nominal Impedance 2 Ohms
Voice Coil Diameter 1.0" (25.4mm)
Peak Xmax 10mm
Xmax = 5mm
Thiele-Small Parameneters
Fresh Air Resonance 52.3Hz
Voice Coil DC Resistance 3.2 Ohms
Voice Coil Inductance at 1kHz: 0.5mH
Mechanical Q (Qms) 2.157
Electrical Q (Qes) 0.557
Total Q (Qts) 0.443
Compliance Volume (Vas) 13.55; 0.478 cu ft
Moving Mass, Diaphragm 10.65 Ger
Motor Force Factor 5.124Tm
Pair
