Description
- Who is it for: If you live in a very rural area with uneven or no signal, this broadband cellular antenna allows you to find signal towers up to 10-15 miles away.
- Cellular Antenna-Outdoor Parabolic Antenna works with all cell phone signal boosters brands: Cel-Fi,weBoost, WiFi boosters, SureCall, etc., and hotspot boosters (Netgear Nighthawk, Pepwave, MoFi, etc).
- Full frequency band 600-6500mhz Compatibility: All cells in the 600-6500 MHz frequency band: 5G / 4G / LTE / 3G GSM / CDMA, etc. All North American operators: ATT / Verizon / T-Mobile / Sprint / Rogers / Bell / Telus / US Cellular / Telcel / Movistar, etc.
- High gain 26dbi, at some frequencies, it can even reach 30dbi Allow him to capture distant hotspots.
- Waterproof and rust proof - it's an outdoor antenna. Not afraid of wind, rain and sun.

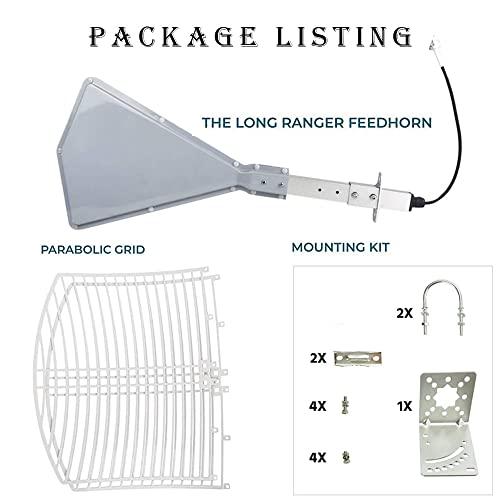

- Package list: 1pcs feed horn antenna +2pcs grid +1set screw +1 set bracket +1set screw.
Product Description

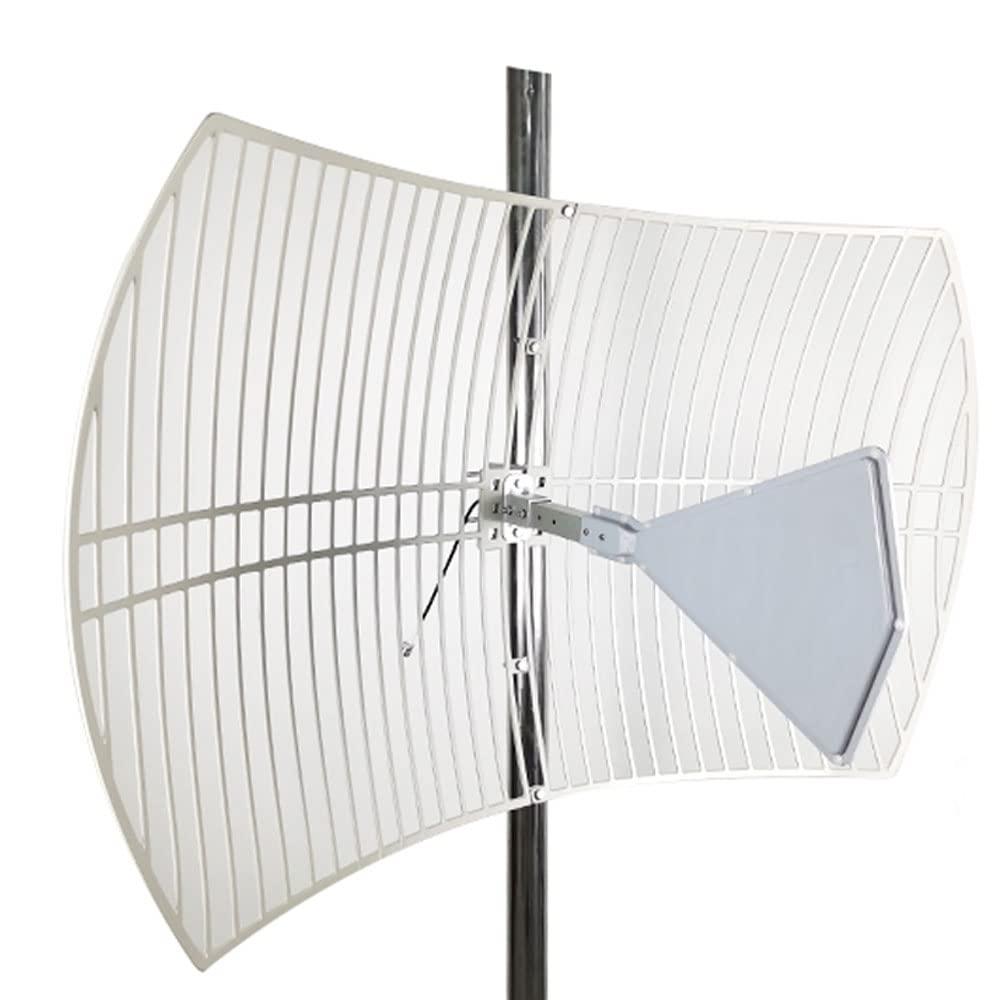

Cellular Antenna-Outdoor Parabolic Antenna Long Range-High Gain 26dbi 600-6500mhz LTE Wifi 4G 5G GSM-for Signal Booster-Works for All Carriers-Weatherproof
Improve your cellular and WiFi signals by up to +28dB, more than any other antenna
Works With Signal Boosters, Modems, Routers, and Hotspots

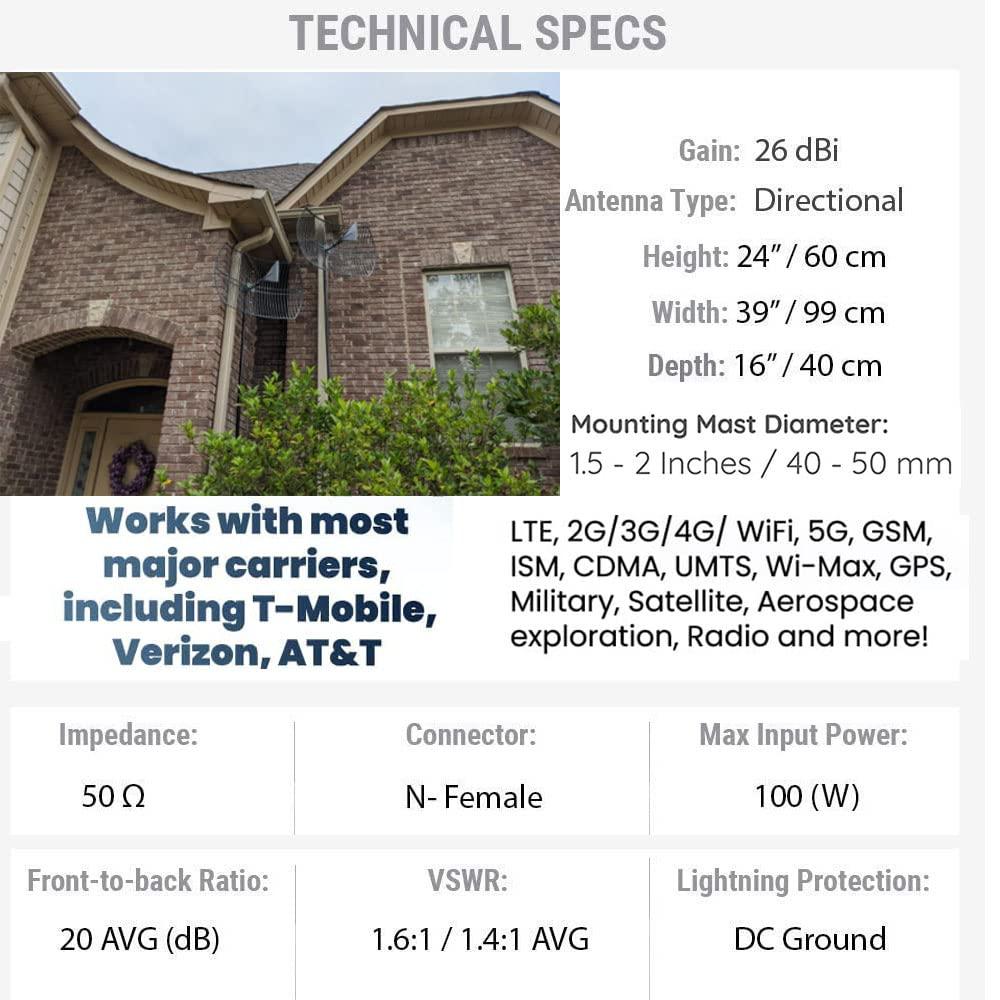

Electrical specififications
Frequency range (MHZ) :600 - 6500
Polarization :Vertical or Horizontal
Gain(dBi) : 26
Half-power beam width() :Low Band: 20 Horiz, 23 Vert
Half-power beam width() :Mid Band: 12 Horiz, 15 Vert
Half-power beam width() :High Band: 7 Horiz, 9 Vert
Front-to-back ratio(dB) :20 AVG
Impedance() :50
VSWR :1.6:1 / 1.4:1 avg
Maximum input power(W) :100
Lightning protection :DC Ground
Mechanical specififications

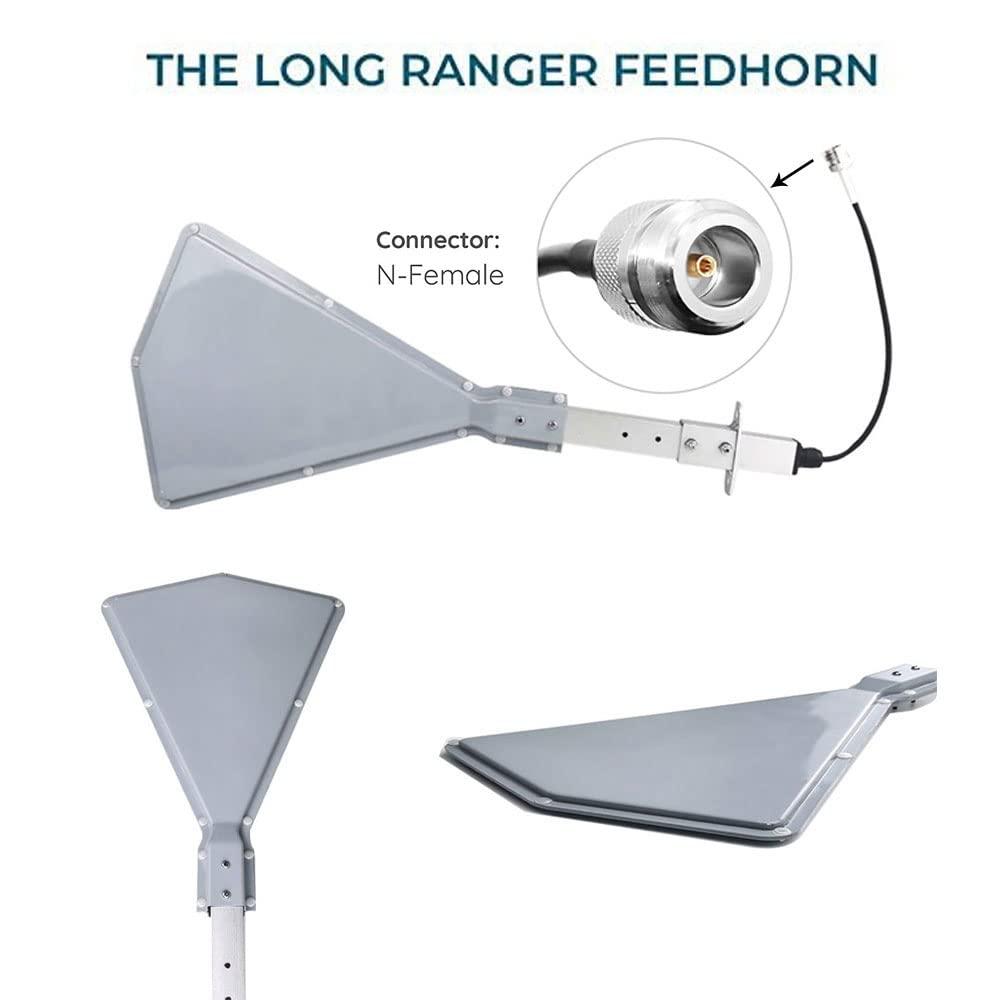

Connector :N-female
Reflector Dimensions (in / mm) :23.6x39 / 60x99cm
Antenna weight (lb / kg): 5.4 / 2.5
Packing weight (lb / kg) :14 / 3
Rated wind velocity (mph / kph) :150 / 240
Wind Load @ Rated Velo. (lb / kg) :150 / 68

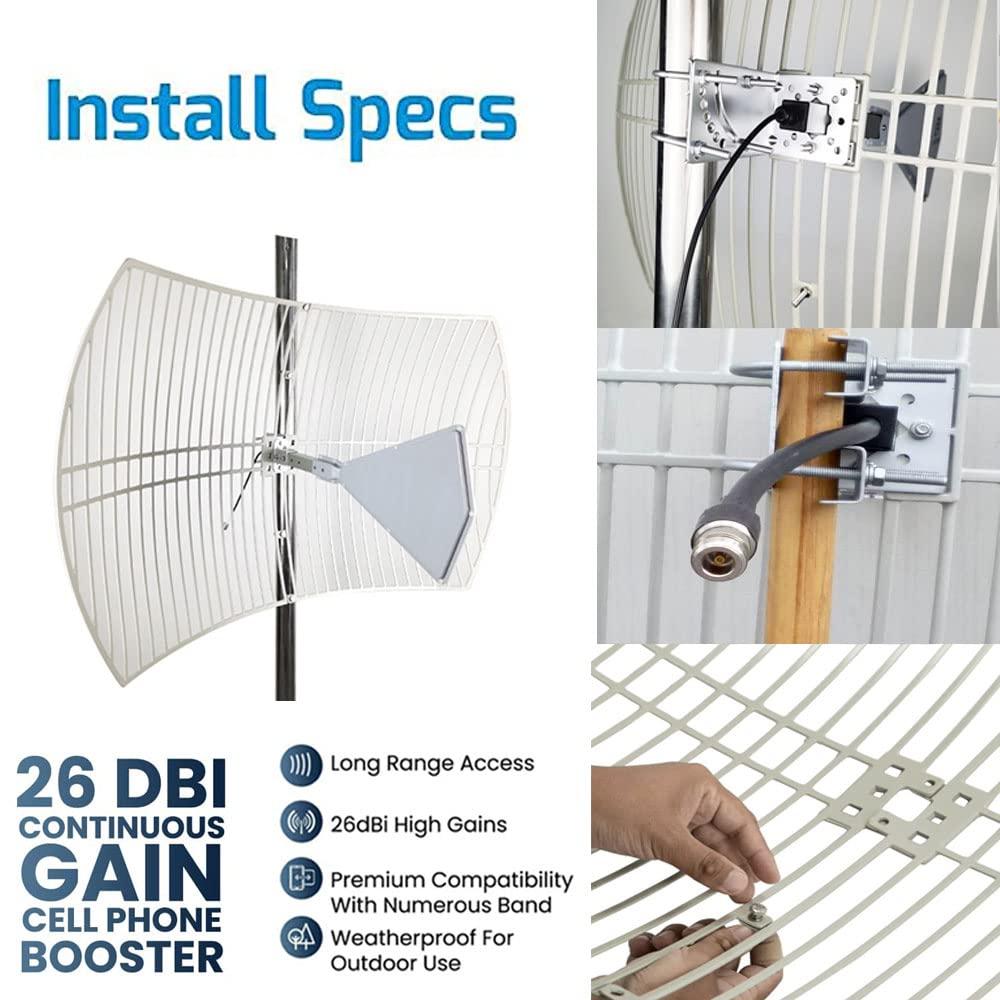

Mounting mast diam. (in / mm) :1.5-2.0 / 40-50
Reflflector material :Die-cast Aluminum
Reflflector Finish: Electrostatic Powder Coat
Radome material :ASA Anti UV
Antenna Reflflector color :Beige-White
Water resistance :IPX Weather rated
Operating temperature( / F) :-40 to +60 / -40 to +140
