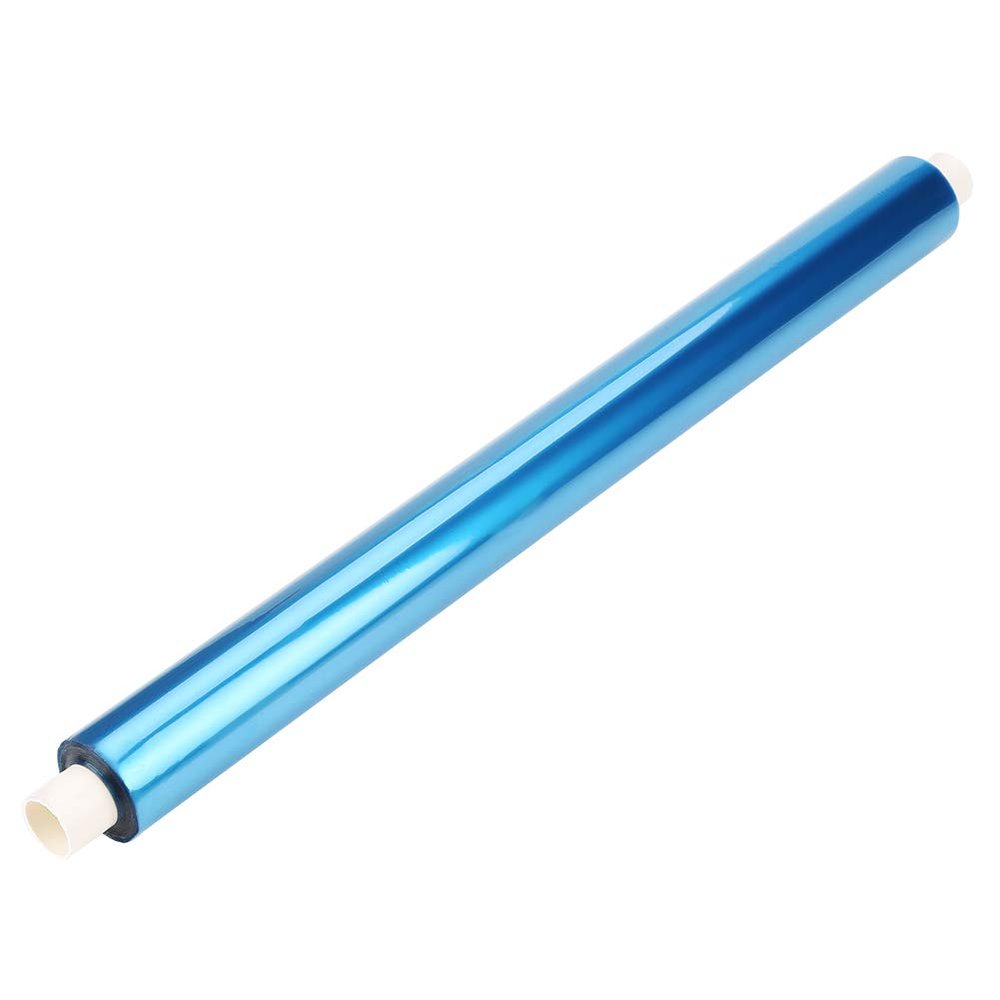

Circuit Production Film 5m Portable Circuit Production Photosensitive Dry Film Photoresist Film Photosensitive Film Photosensitive Dry Film Dry Film for Industrial PCB Board

Description

• 1. WIDE RANGE OF USES-- Photosensitive film, also known as dry film, is an important part of PCB board production. Stick it on top of a PCB to transform it into a highly sensitive board suitable for plating, hole covering and etching processes.
• 2. HOLE COVERAGE AND HIGH RESOLUTION-- This photographic film has excellent hole coverage, ensuring precise and accurate results. With its high-resolution quality, it is capable of creating complex circuit designs with fine details.
• 3. STRONG ADHESION-- The film has excellent adhesion and can be effectively attached to almost all surfaces. This ensures that the film remains firmly attached throughout the printing and processing stages.
• 4. CLEAR IMAGE-- After the required light source is irradiated, the film produces a clear and image, ensuring the visibility and accuracy of the circuit pattern. This ensures reliable performance during development and etching.
• 5. EASY-TO-FOLLOW STEPS-- The use of this photographic film involves simple steps. These include peeling, gluing, iron heat setting, PCB filming, exposure, development, etching and mold release.

1. WIDE RANGE OF USES-- Photosensitive film, also known as dry film, is an important part of PCB board production. Stick it on top of a PCB to transform it into a highly sensitive board suitable for plating, hole covering and etching processes.
2. HOLE COVERAGE AND HIGH RESOLUTION-- This photographic film has excellent hole coverage, ensuring precise and accurate results. With its high-resolution quality, it is capable of creating complex circuit designs with fine details.
3. STRONG ADHESION-- The film has excellent adhesion and can be effectively attached to almost all surfaces. This ensures that the film remains firmly attached throughout the printing and processing stages.
4. CLEAR IMAGE-- After the required light source is irradiated, the film produces a clear and image, ensuring the visibility and accuracy of the circuit pattern. This ensures reliable performance during development and etching.
5. EASY-TO-FOLLOW STEPS-- The use of this photographic film involves simple steps. These include peeling, gluing, iron heat setting, PCB filming, exposure, development, etching and mold release.

Specification:
Color: black
Material: Plastic
Dimension: 30cm*500cm / 11.8*197in
Weight: approx. 150g

Package List:
1 * Photosensitive film

Steps of use:
1. Film uncovering, the photographic film is sandwiched between two layers of films.
2. Film pasting, clean and paste flat.
3. Heat slightly to fix with electric iron.
4. Print circuit board film.
5. Exposure
6. Develop
7. Etch
8. Demould
