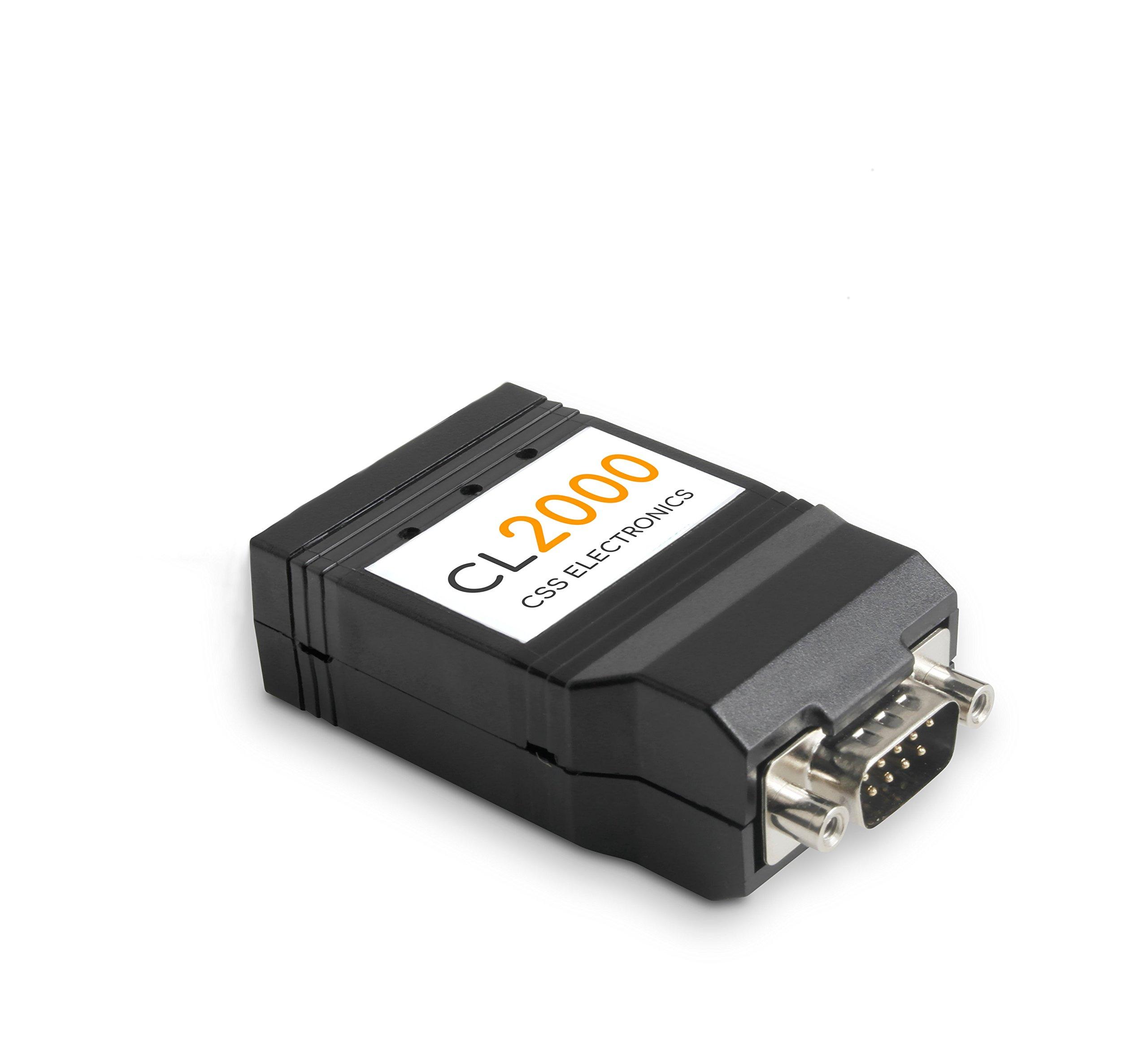

CL2000: CAN-Bus Data Logger with SD-Card and Real Time Clock

The plug & play CL2000 CAN logger records CAN bus data to an 8 GB SD card - and allows for simple extraction via USB.

Note: We've released the 'next generation' of the CL2000, the CANedge1 (B07XPCGT9H).

You can use the CL2000 to record CAN bus data from any CAN based applications - including:
- Small & Medium Duty: Cars, motorcycles, scooters, electric vehicles, vans, ...

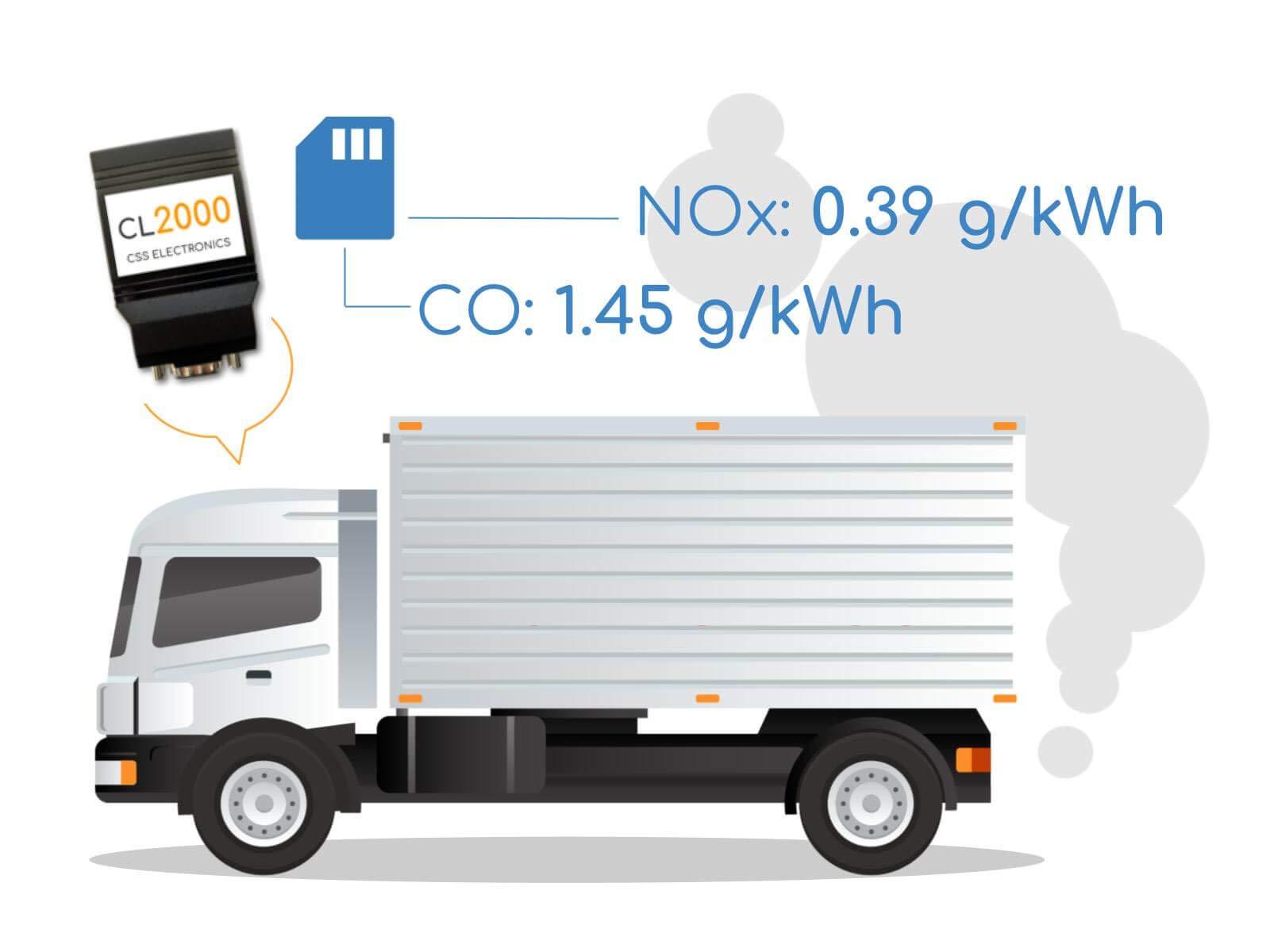

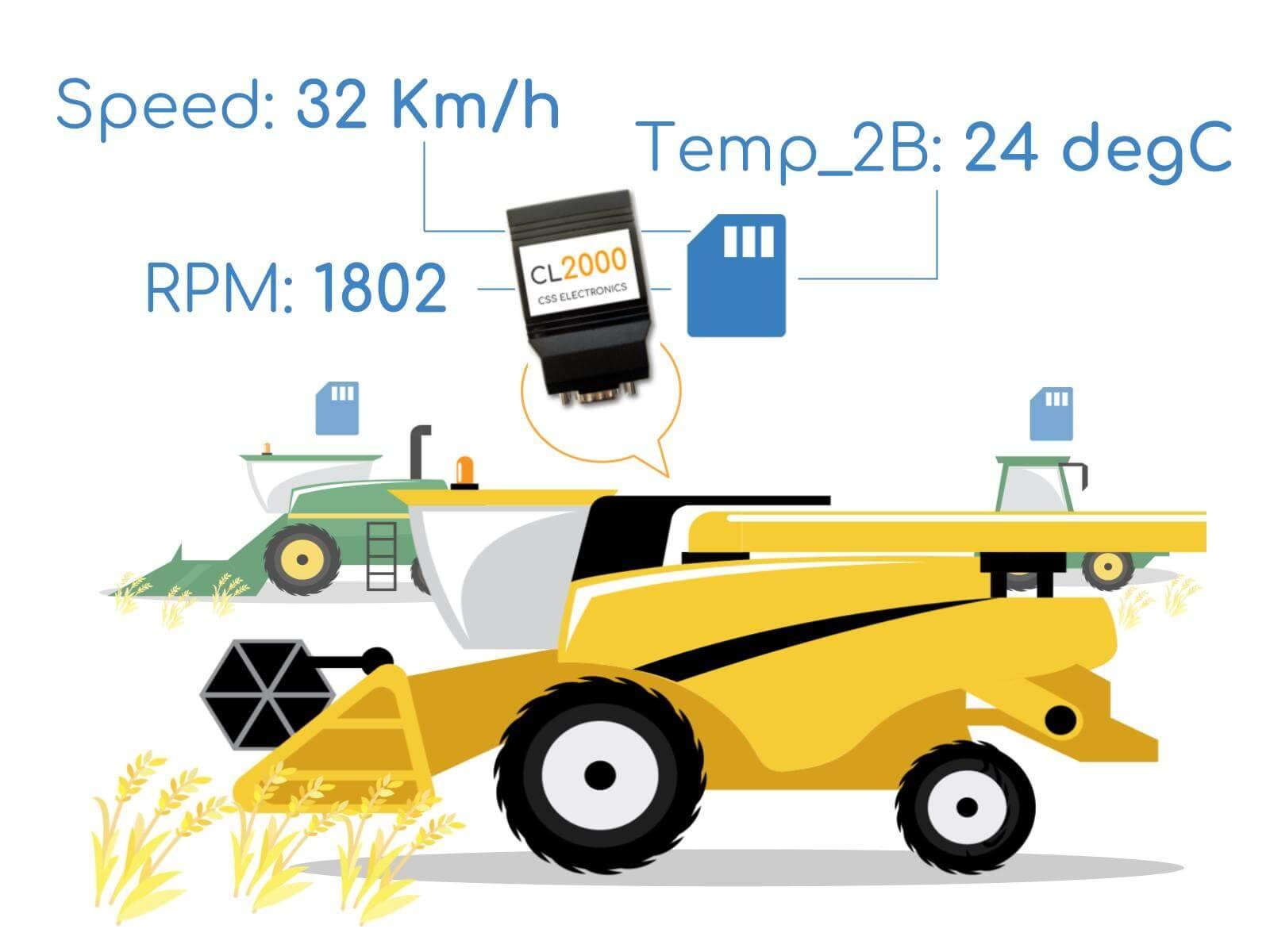

- Heavy Duty: Trucks, buses, tractors, harvesters, mobile cranes, foresters, excavators, forklifts, ...

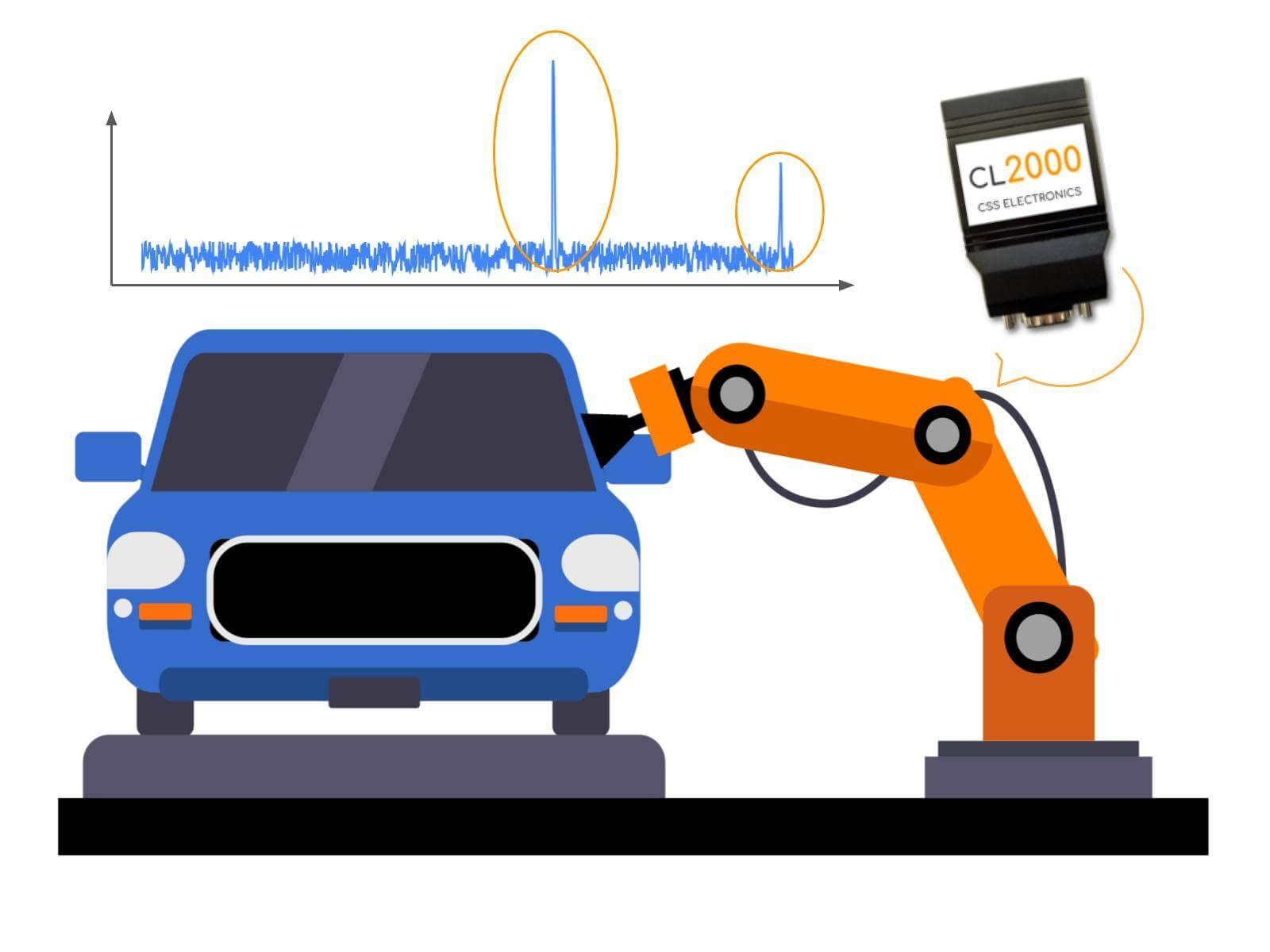

- Other: EV batteries & BMS, boats, aircrafts, industrial production machinery, robotics, ...

Specifically, the logger records all data from any high speed CAN bus (ISO 11898-2, 2.0A / 2.0B) - incl. J1939, FMS, OBD2, NMEA, CANopen.

USE CASE EXAMPLES:
- Vehicle fleet management
- Remote machinery monitoring
- Vehicle field tests & diagnostics

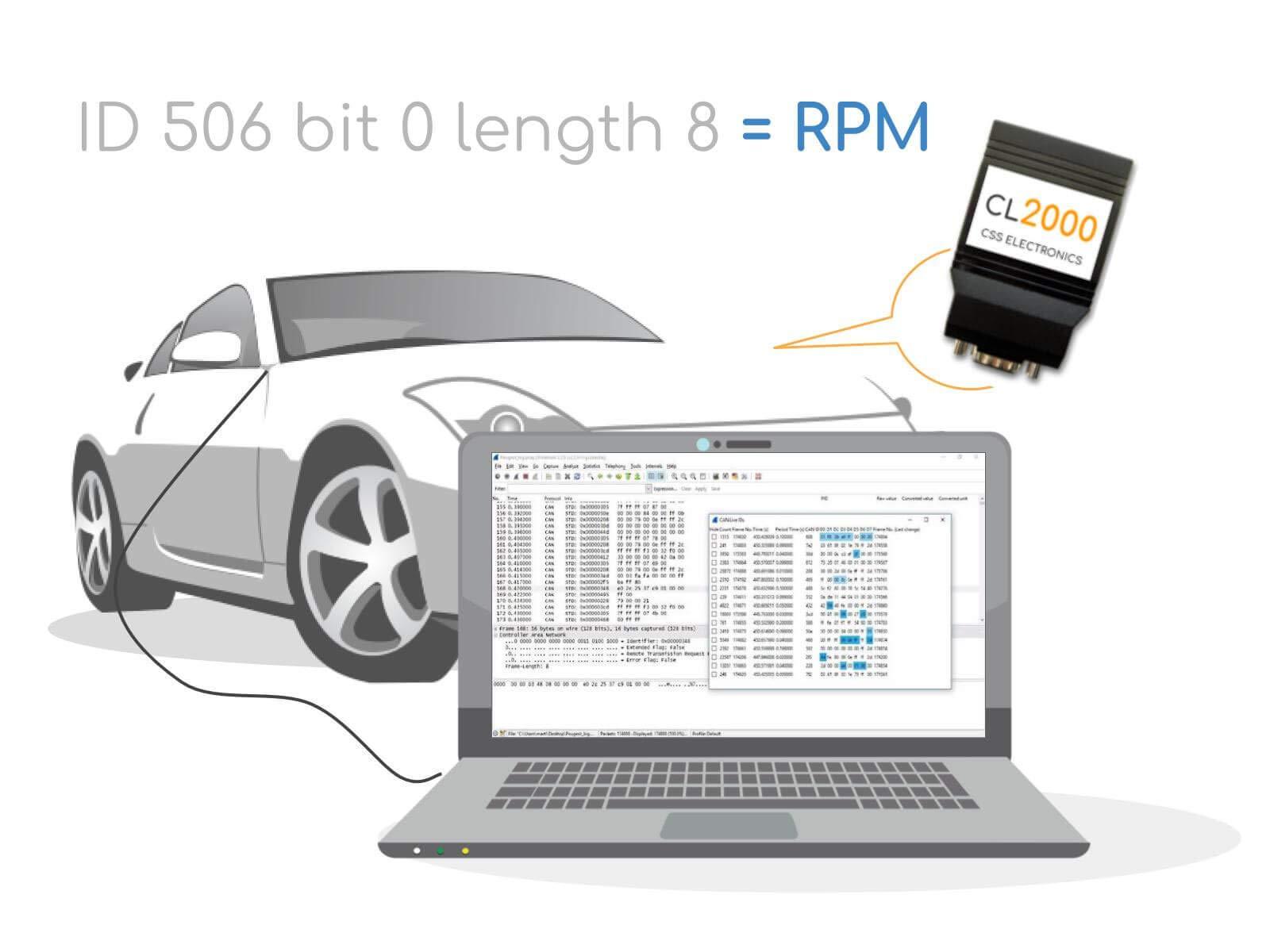

- Reverse engineering proprietary CAN data
- Prototype development & optimization

HOW TO USE:
1) Optionally configure the CL2000 (~2 min)
2) Connect it to your vehicle or machine
3) The device is powered via the CAN bus and automatically starts recording data to the SD in a *.CSV format
4) Your CAN data can then be extracted via USB
5) Optionally use our free CANvas software to convert your data (*.DBC support)

Note: We recommend to use our adapters: J1939-DB9 (B07KFKMKXW) or OBD2-DB9 (B07KFKGXW5)

OTHER KEY FEATURES:
- Real-time clock (RTC) with battery backup - date & timestamp all data
- Doubles as a USB-CAN interface
- Replaceable SD card (supports up to 32 GB)
- Silent mode, cyclic logging, downsampling, filters, transmit
- CANvas software enables log file DBC conversion, downsampling & merging
- Compact (6.6 x 4.3 x 2.4 CM, 45 grams)
- Power via the CAN-bus (+8-28V DC)
- CE, FCC, RoHS
