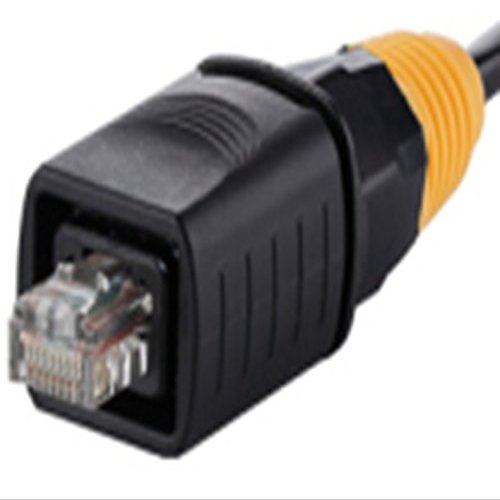

CNLINKO RJ45 Ethernet Industrial Connector, Male Plug, Outdoor Waterproof IP67, Fast Data

Description

• Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801, compatible CAT5e, data transfer rate reach 10GBIT/S
• Pairing CNLINKO Socket "YT-RJ45-JSX-05-002"
• Outdoor, waterproof IP67, desgined for data transmission in harsh environments
• Shielding system with high frequency noise immunity and electromagnetic interference protection
• Quick click-on coupling, simple operation, easy installation

Model Number: YT-RJ45-CPE-05-001 Pairing Socket Model Number: YT-RJ45-JSX-05-002 Features: Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connectors compatible CAT5e, data transfer rate reach 10GBIT/S Multi-style connecting modes: 1/4 bayonet connect (YT01), quickly plug/unplug(YT09/04) Applicable for harsh environments Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle Sheath of cable applicable for common RJ45 plugs Waterproof design, protection level IP67 Electroplated shell against wind and rain Shielding system with high frequency noise immunity and electromagnetic interference protection Specification: Cable specification 0.15m0.2m/26-24 AWG Diameter range 5.5mm7mm Contact diameter number 8 Rated Current (A) 1.5A Operating voltage (AC.V.rms) 1000V Contact resistance <30m Insulation resistance 500M Protection level IP65/IP67 Durability 500 times Working temperature -4080 Assembly Wire Plug/Unplug Housing, the insulating parts High-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needles Copper alloy (gold-plated 4U) Waterproof circle Silica gel Flammability rating UL94-V0
