Description

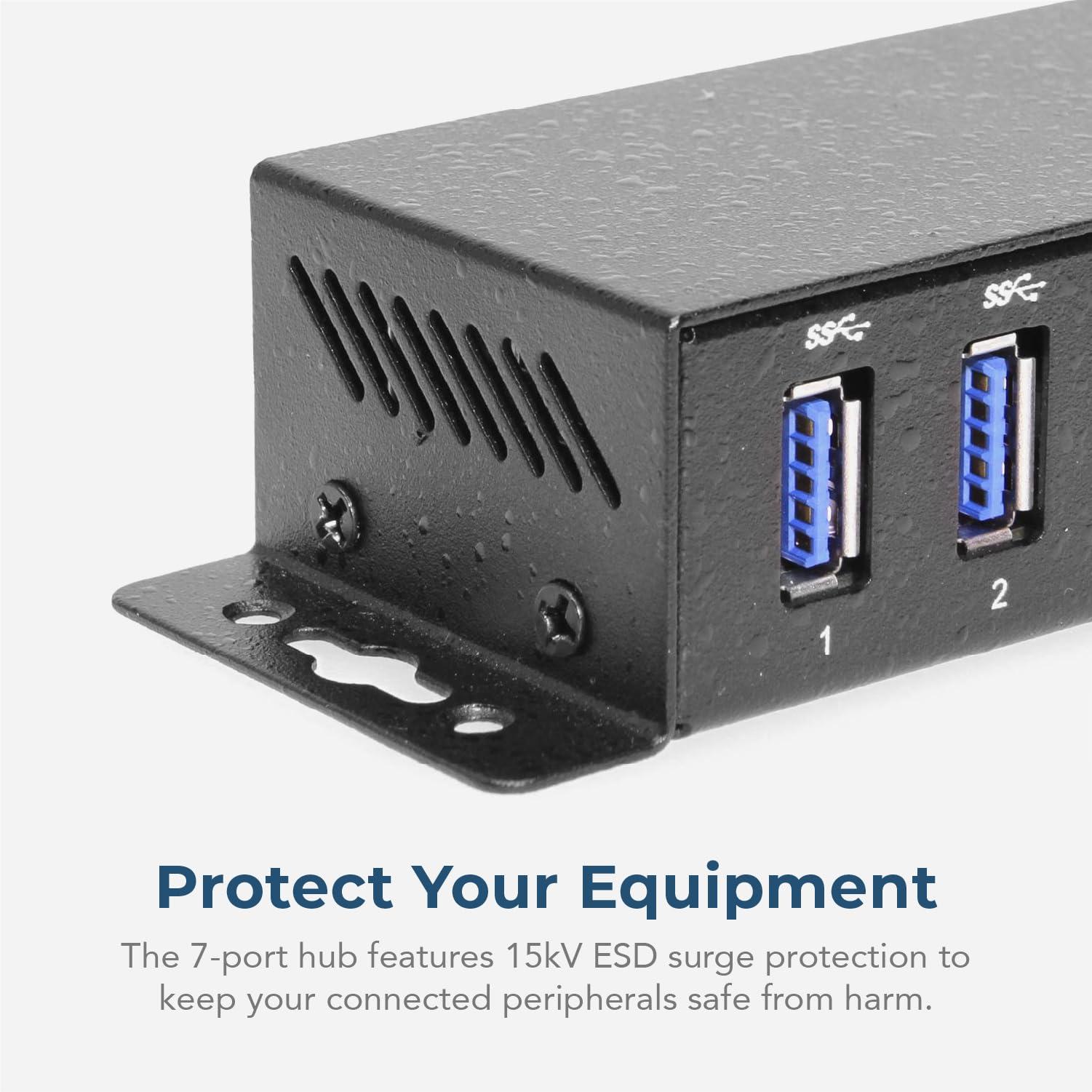

- Protect Your Equipment: The 7-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Small-Scale Quality: Housed in a compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

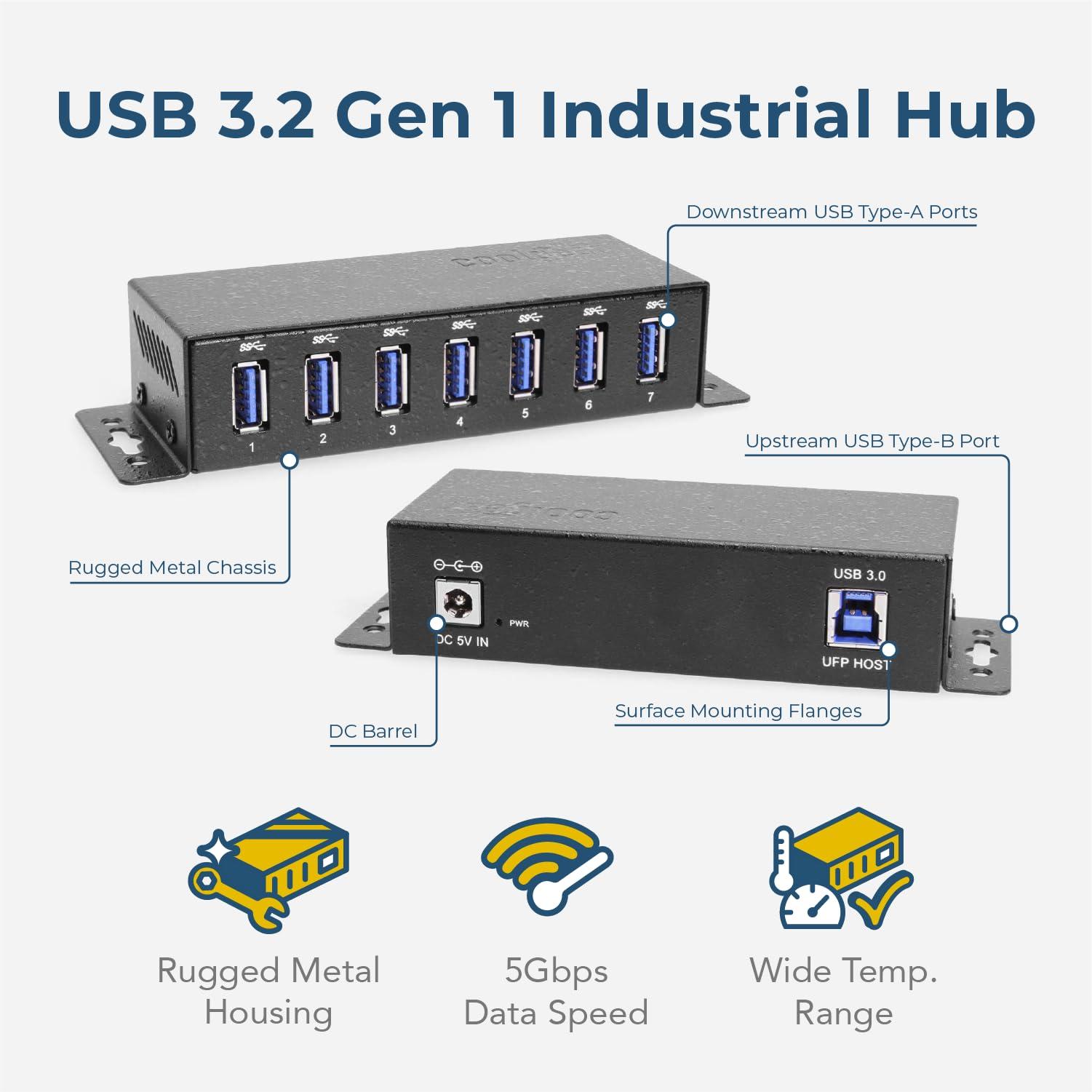

- Upstream: 1 USB port, Type B connector
- Downstream: 7 USB ports, Type A connectors
- Power Connector: DC Barrel 2.5mm ID 5.5mm OD, Center Pin Positive

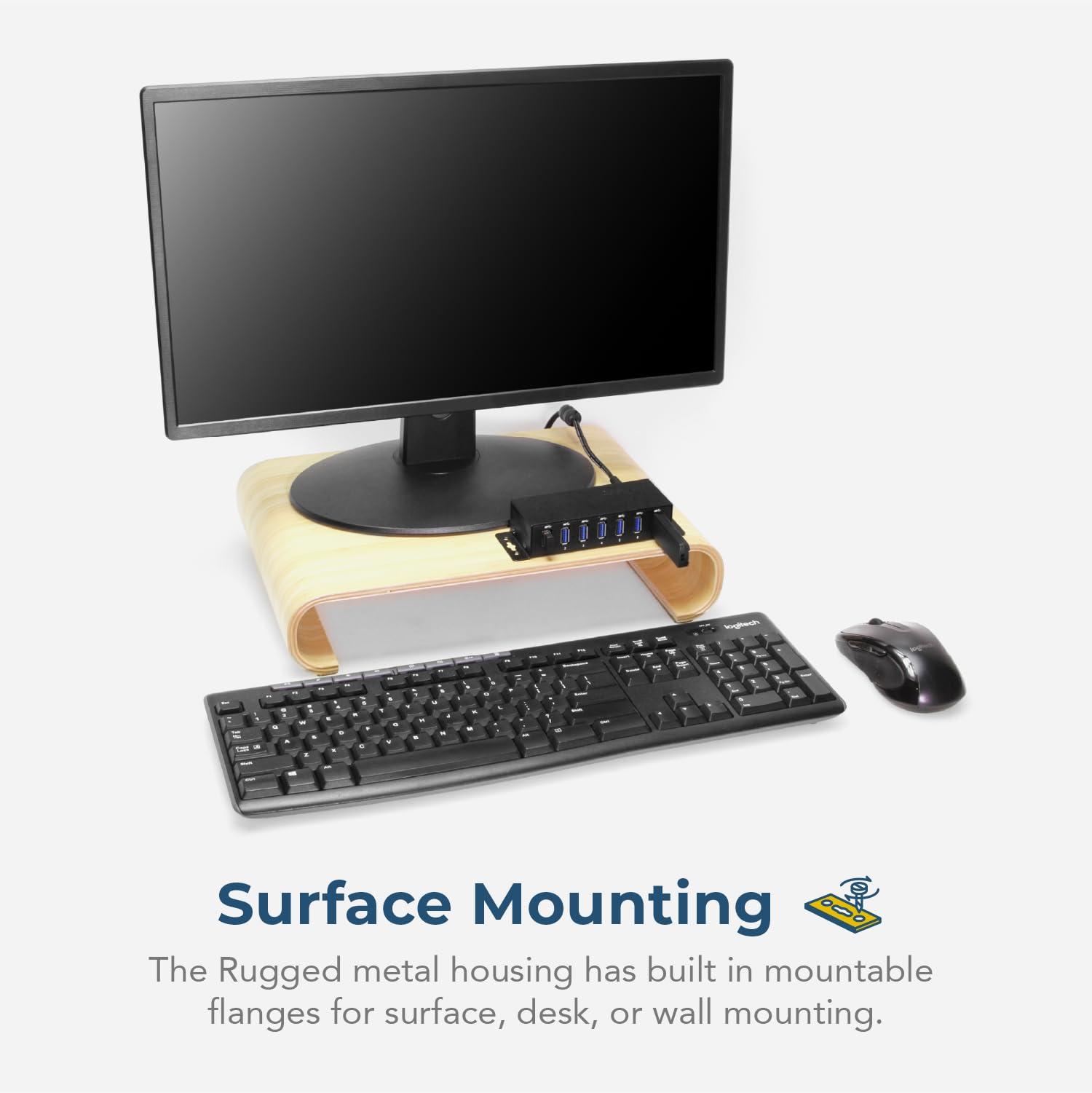

- Mounting Options: Wall & Surface
- Compliant with USB 3.2 Gen 1 Specification
- Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
- Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
- Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
- Compatible with Windows 7, 8,10,11, Linux and Mac OS X
- Chip: GL3510
- USB 3.2 Gen 1 Gen Compliant
- Supports High Speed and Full Speed transmit and Receive
- Complies with USB-IF battery charging specification rev1.2
- Automatic switching between self-powered and bus-powered modes

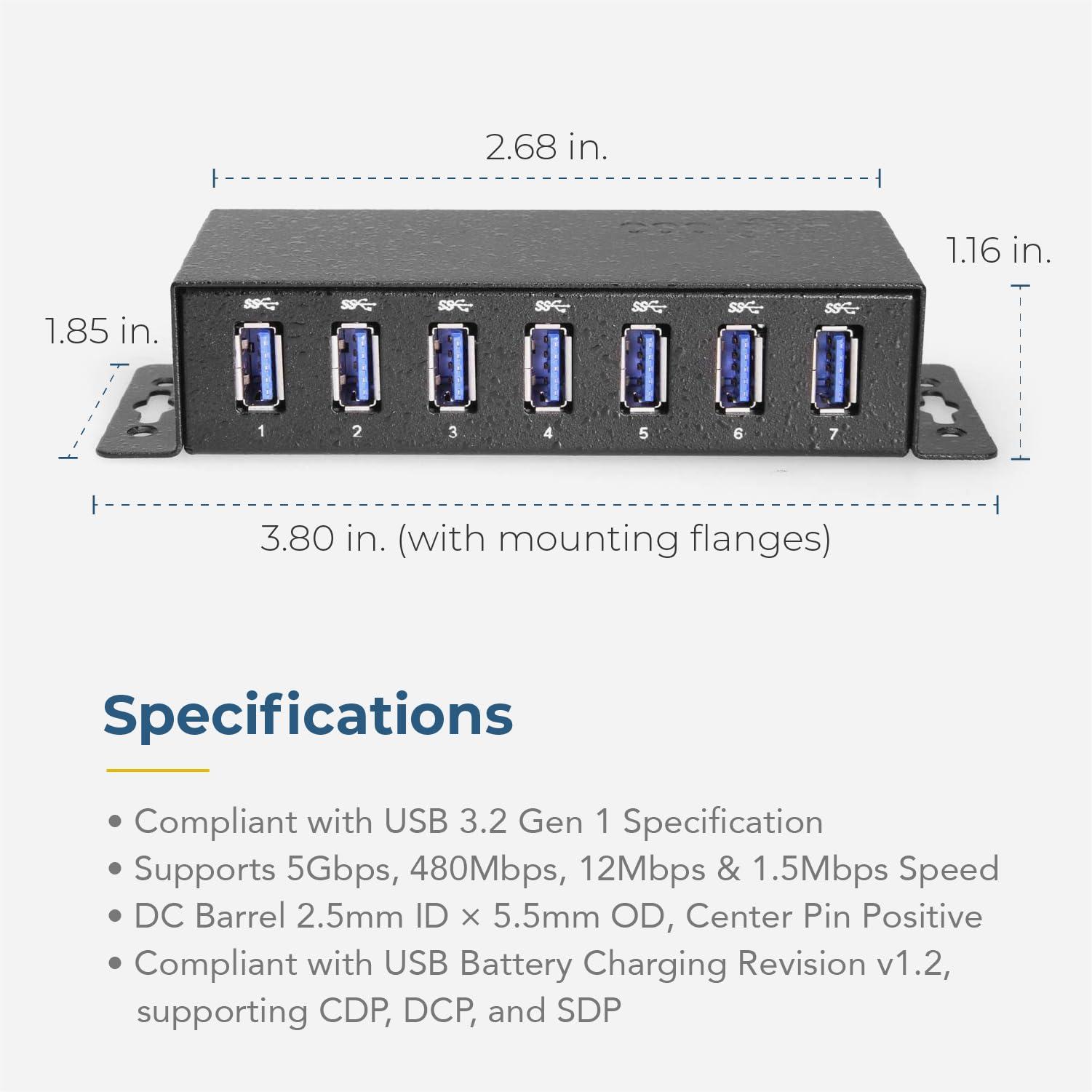

- Item Dimensions: 4.61(L 5.57 w/ears) x 1.85(W) x 1.16(H)
- Item Weight: .56 lbs. (5.2 oz)

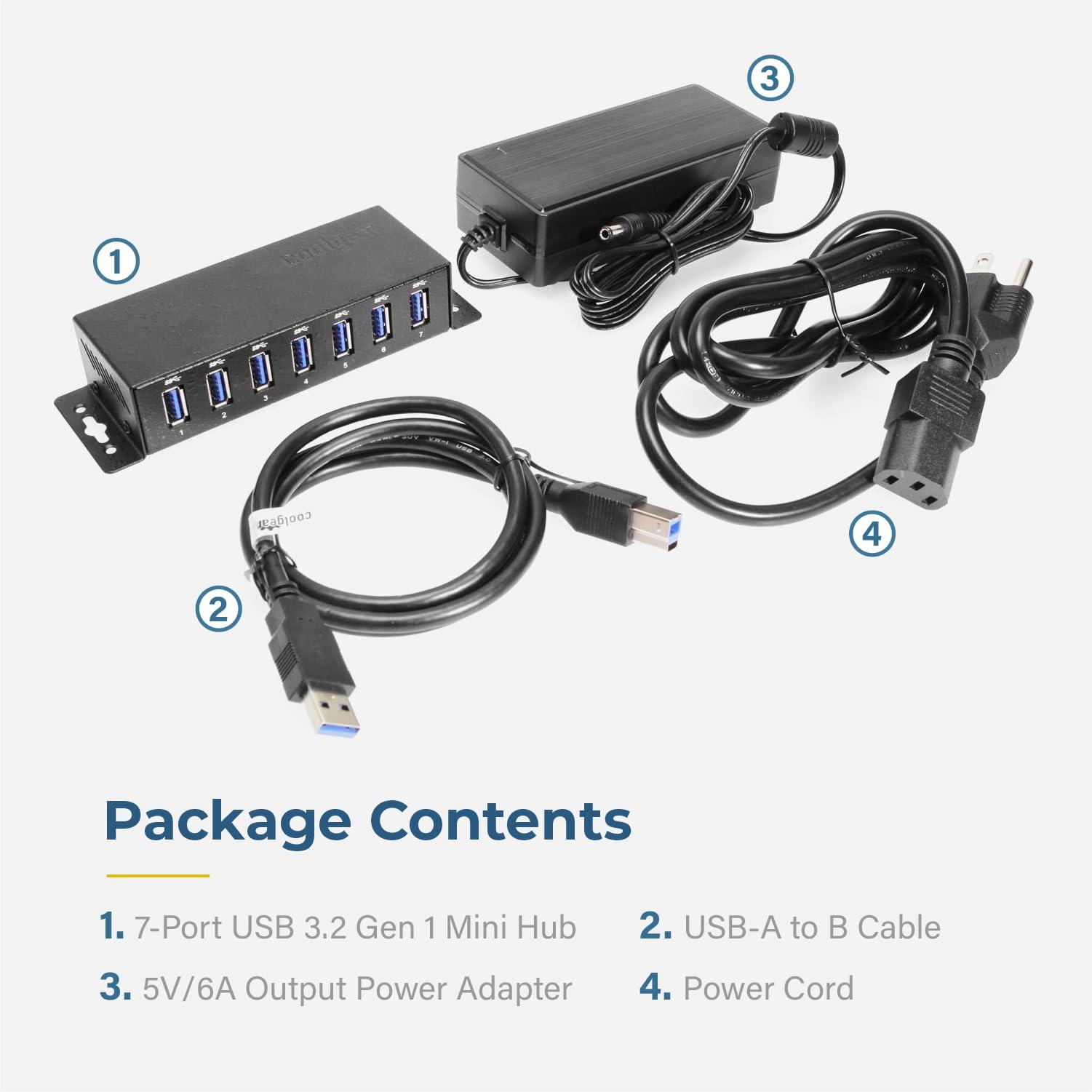

- USB 3.2 Gen 1 7-Port Hub
- 6 Amp 5V DC Mini-Switching Power Adapter
- 3ft. USB A to B Cable for Hub
- CG-U3MINI7PH - 3D Model
- CG-U3MINI7PH - Mechanical Drawing
- CG-U3MINI7PH - Technical Data Sheet - v05.230316
