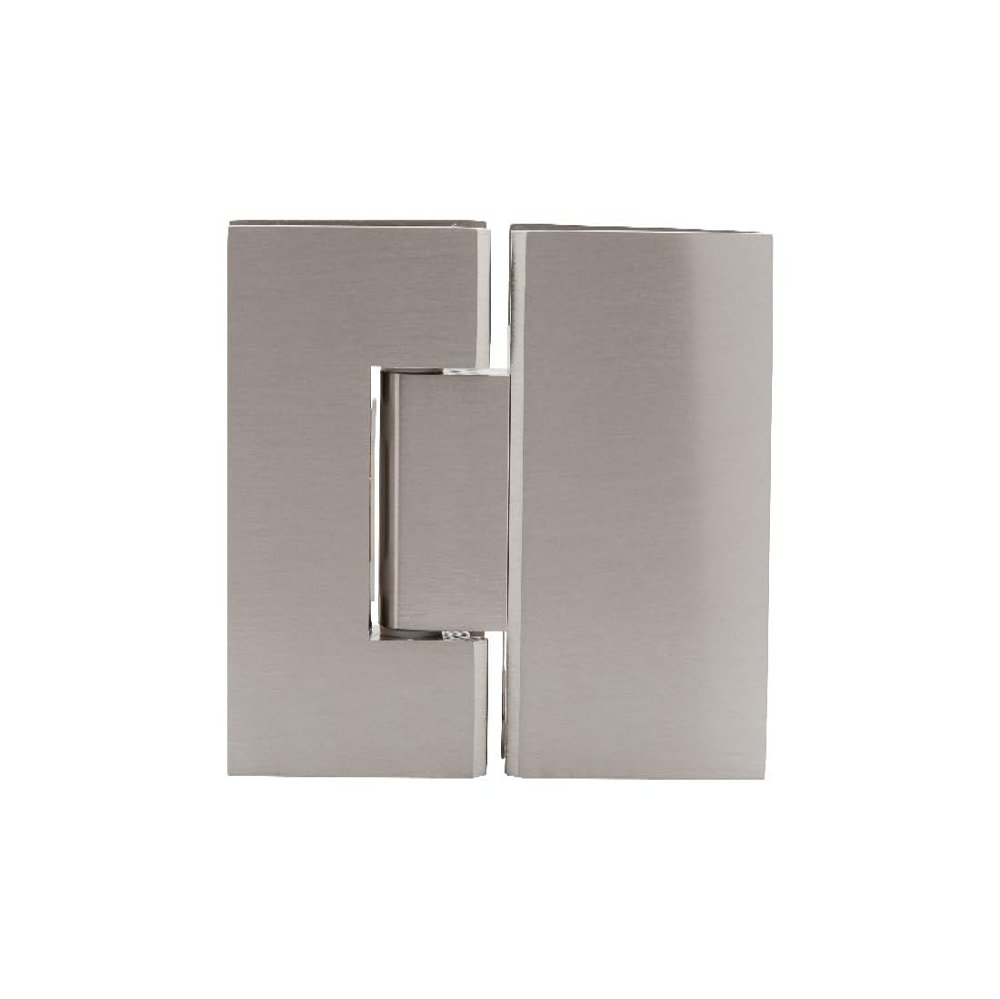

CRL MEL180BN Brushed Nickel Melbourne 180 Degree Glass-to-Glass Hinge

Description

• For Use With 1/2" 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
• Glass Fabrication Required is a Simple Rectangular Cut-out
• Inset Style Gasket System Allows Ease of Installation
• Large Hinge Plates Provide More Clamping Force

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out and inset style gasket system allow ease of installation. Constructed of solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates (for MEL024 only) to conceal the rear hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finished available.
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
