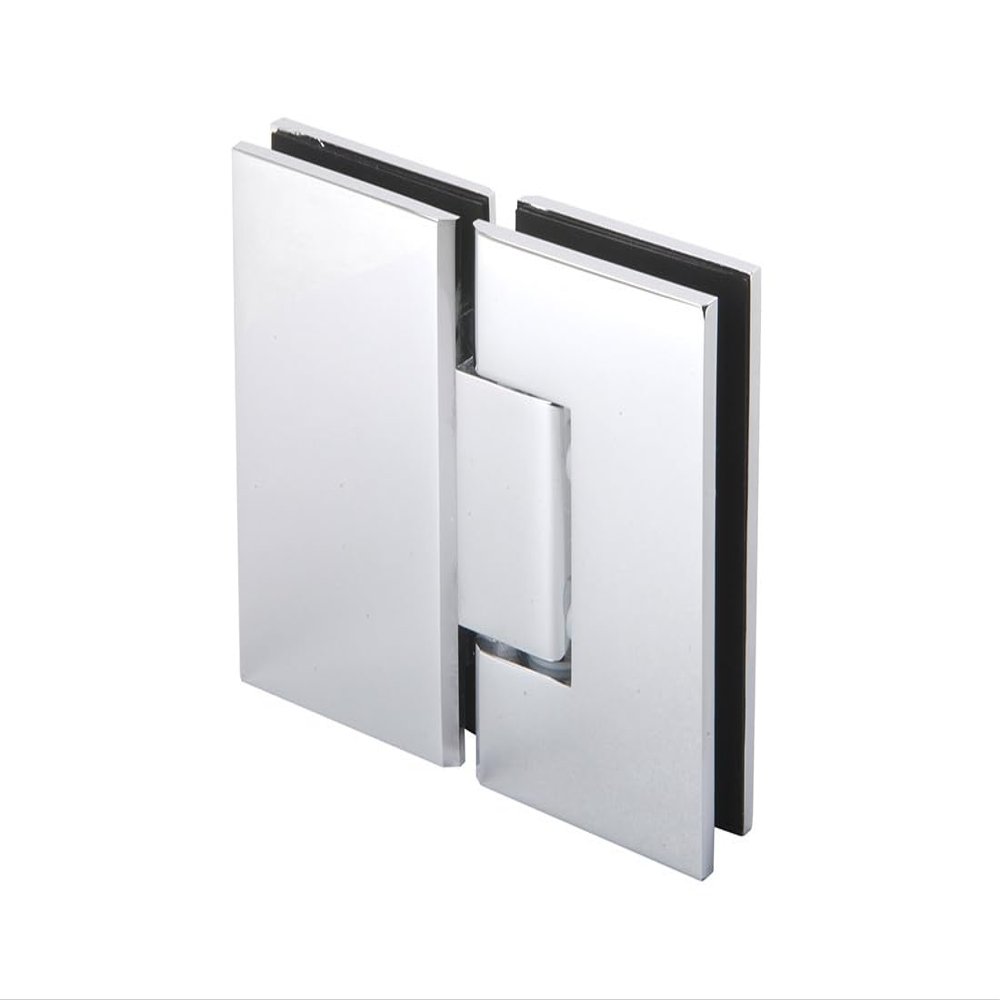

CRL MEL180CH Polished Chrome Melbourne 180 Degree Glass-to-Glass Hinge

Description

• For Use With 1/2" 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
• Glass Fabrication Required is a Simple Rectangular Cut-out
• Inset Style Gasket System Allows Ease of Installation
• Large Hinge Plates Provide More Clamping Force

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out and inset-style gasket system allow ease of installation. Constructed of solid brass, the Melbourne Series offers three versions of wall mount models, a 180-degree glass-to-glass model, and replacement cover plates (for MEL024 only) to conceal the rear hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finish available. Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm). Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm). SPECIFICATIONS: Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90 degrees in and 90 degrees out (at factory set position). Closing Type: Self-Centering when within 15 degrees of closed position. Cut-Out Required Includes Gaskets, Screws, and Glass Fabrication Dimensions For more information contact CRL Shower Door Technical Sales Department. Product Warning: CRL Shower Door Hinges are designed for residential or hotel shower use.
