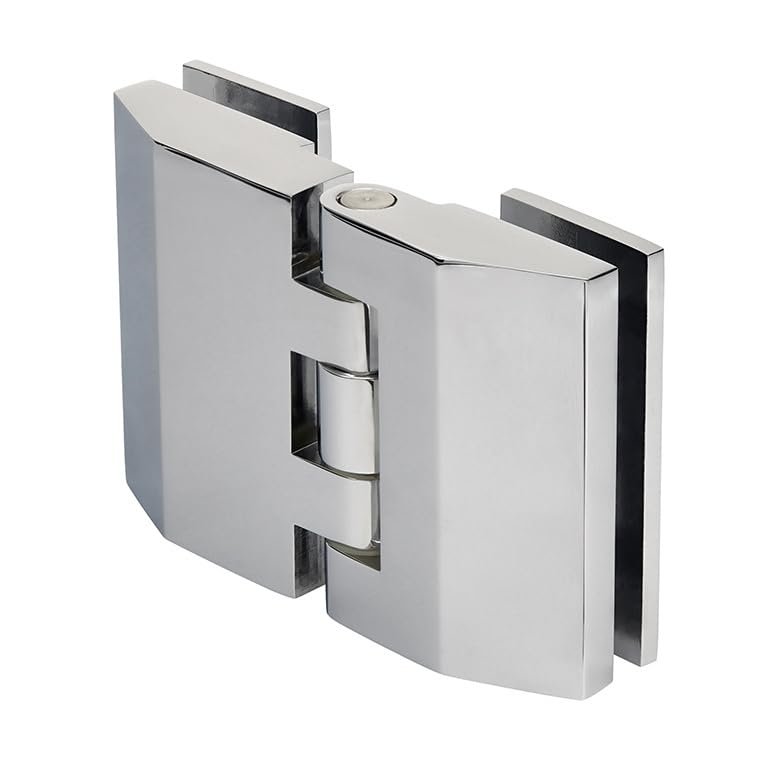

CRL REG185CH Chrome Regal 185 Series Glass-to-Glass Hinge

Description

• Glass-to-Glass Model
• Adjustable After Door is Installed
• This Regal Hinge is Only Available in Europe
• 3 Year Warranty

The CRL Regal Adjustable Hinge is unique in design and function. The Wall Mount Model requires only two holes in the door (no cut-out). The Glass-to-Glass Model only requires four holes per Hinge (two in the door and two in the fixed panel). The Regal Hinge offers an adjustable closing angle from 0 degree to 90 degree. After the door is installed, simply loosen the Allen screw adjustment, position the door to the desired closed position, and tighten the Allen screw. You have now solved the problem of walls not meeting the door at the perfect 90 degree angle. This adjustment feature means that a single Glass-to-Glass model can accommodate angles from 90 degree to 180 degree. NOTE: REG037 and REG180 are not available in Europe.Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm). Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).SPECIFICATIONS:Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety GlassConstruction: Solid BrassHinge Swings: Approximately 90 degree Outward Only (Requires Stop)Closing Type: Precise Closing to 0 degreeNo Cut-Out Required; Requires Two Holes Only Per Glass Panel.Includes: Gaskets, Screws, and Glass Fabrication DimensionsNOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges
