Description
- physical ports: 5 10/100/1000BASE-T RJ-45 ports and 1 Gigabit Ethernet SFP slots (SFP ports support dual speed 100/1000BASE-X); Packet Buffer Size: 512 KB, MAC Address Table: 8K
- Auto-negotiation, IEEE 802.3x for full-duplex, Back-Pressure for half-duplex Supports 4K IEEE 802.1Q VLANs, VLAN IEEE 802.1ad Q-in-Q IEEE 802.1p 4 priority queues per port, Per port based egress/ingress rate limit control IGMP Snooping v1/v2, Jumbo frames up to 9 KB, Storm Control: Unicast/Broadcast/Multicast storm suppression
- Web/Telnet/SNMP management interface DHCP auto provisioning TFTP/HTTP firmware upgrade
- SNMP agent SNMP v1/v2c Optical interface: SFP slot Gigabit rate
- Power input 100V ~ 240V AC Operating temperature 0 ~ 50C Humidity 5% ~ 90% (non-condensing) Dimensions 120 x 170 x 35 mm(D x W x H) Regulatory FCC, CE, RoHS

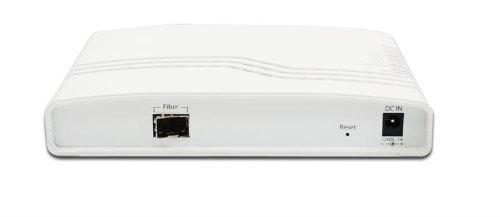

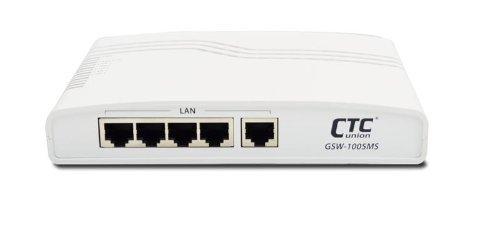

The GSW-1005MS is an Managed Gigabit Ethernet CPE switch designed to make conversion between 5-Port 10/100/1000Base-T RJ45 and 1 port 100/1000Base-X fiber optics with SFP LC connector. It can be used as a basic managed access unit in an FTTH deployent. Fiber access at Gigabit speed for Ethernet can be extended up to 550m on multi-mode fiber or more than 100km on single-mode fiber, depending on the SFP used. Also, the GSW-1005MS has a optional cable tray that allows the user to enclose the excessive fiber within the switch. It provides protection for the sensitive fiber at subscriber site. The GSW-1005MS is fully compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3z standards. Users can simply connect the other device such as Ethernet home gateway, wireless access point or NIC on PC/laptop via 10/100/1000Base-T twisted pair RJ45 port of GSW-1005MS CPE switch without crossover the Ethernet cable and monitor the device status over the comprehensive LED display. When GSW-1005MS is deployed as a stand-alone solution, it incorporates an easy to use Web user interface for operation, administration and maintenance both local and remotely. All of the enabled Layer 2 features and functions of GSW-1005MS can be configured and monitored via web and SNMP management interface.
