Description

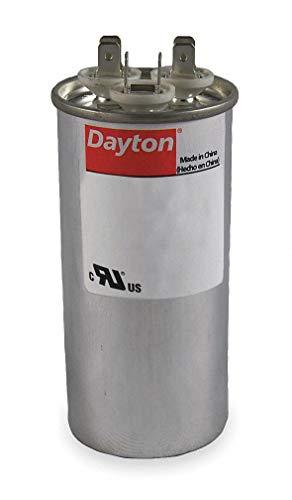

This aluminum, hermetically sealed capacitor is designed to help improve the electrical performance of motors, air conditioners, and refrigeration equipment. PCB-free, the capacitor features an aluminum case with steel cover and 1/4 male quick-connect terminals with plastic insulators. Protected to 10,000 AFC.
Motor Capacitor Type: Motor Dual Run Capacitor
Microfarad Rating: 40/7.5
Capacitor Voltage: 440VAC
Hz: 60/50
Capacitor Shape: Round
Diameter: 2-3/8"
Case Height: 4-3/4"
Overall Height: 5-1/4"
Overall Width: 2-3/8"
Terminal Type: 1/4" Male Quick-Connect
Temp. Range: -40 Degrees to 70 Degrees C
Case Material: Aluminum
Cover Material: Steel
Standards: cULs Recognized (E136401)
Motor Capacitor Type: Motor Dual Run Capacitor
Microfarad Rating: 40/7.5
Capacitor Voltage: 440VAC
Hz: 60/50
Capacitor Shape: Round
Diameter: 2-3/8"
Case Height: 4-3/4"
Overall Height: 5-1/4"
Overall Width: 2-3/8"
Terminal Type: 1/4" Male Quick-Connect
Temp. Range: -40 Degrees to 70 Degrees C
Case Material: Aluminum
Cover Material: Steel
Standards: cULs Recognized (E136401)
