Description

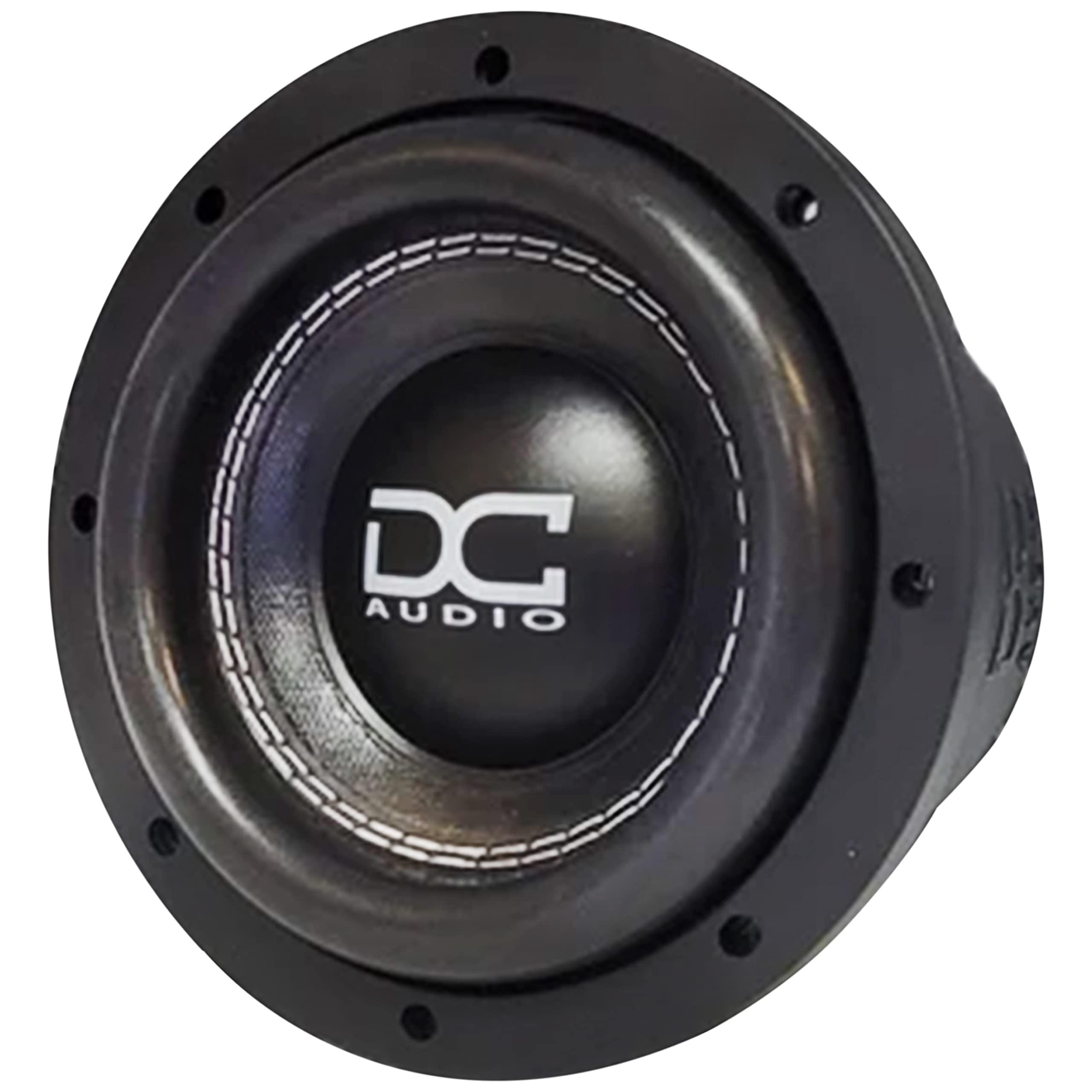

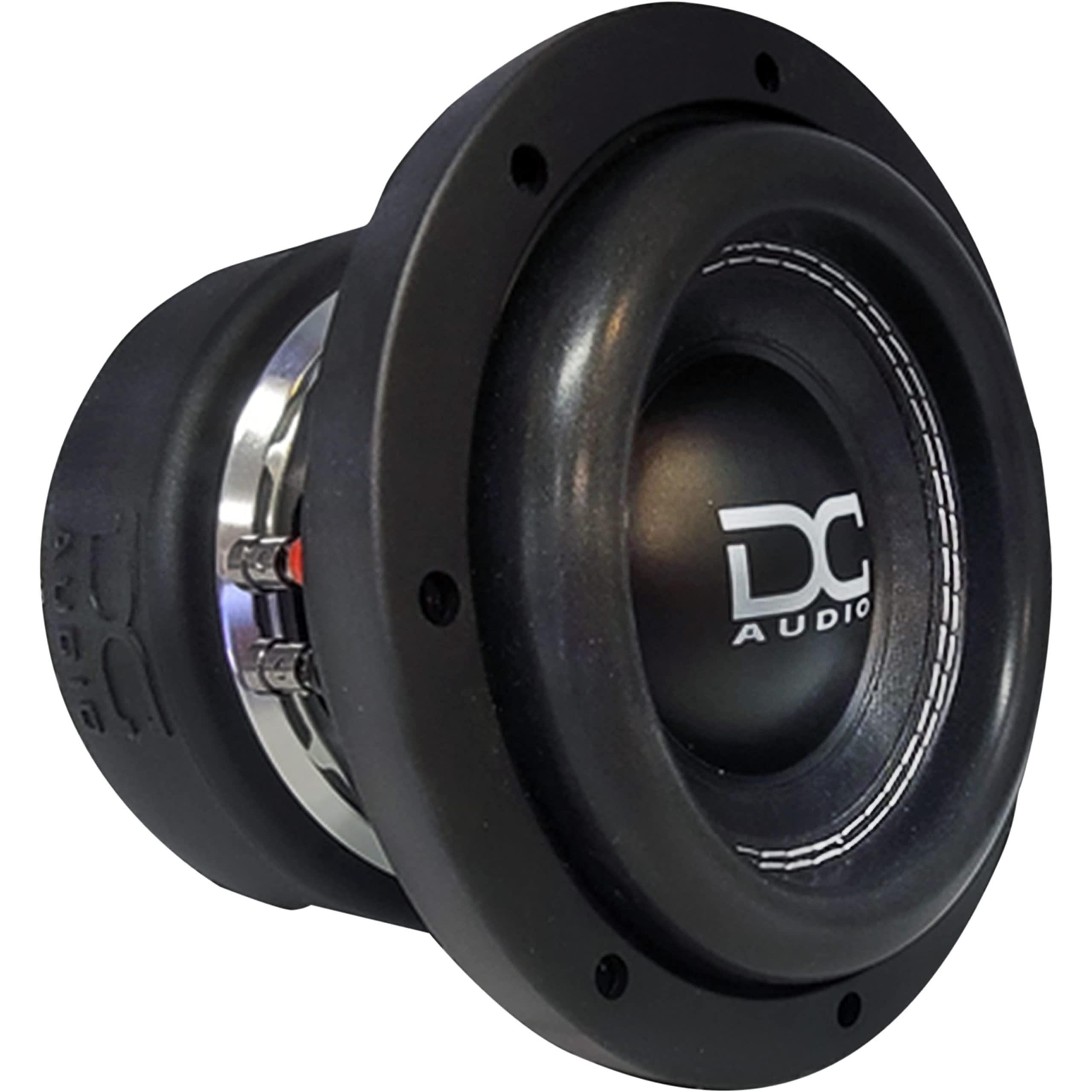

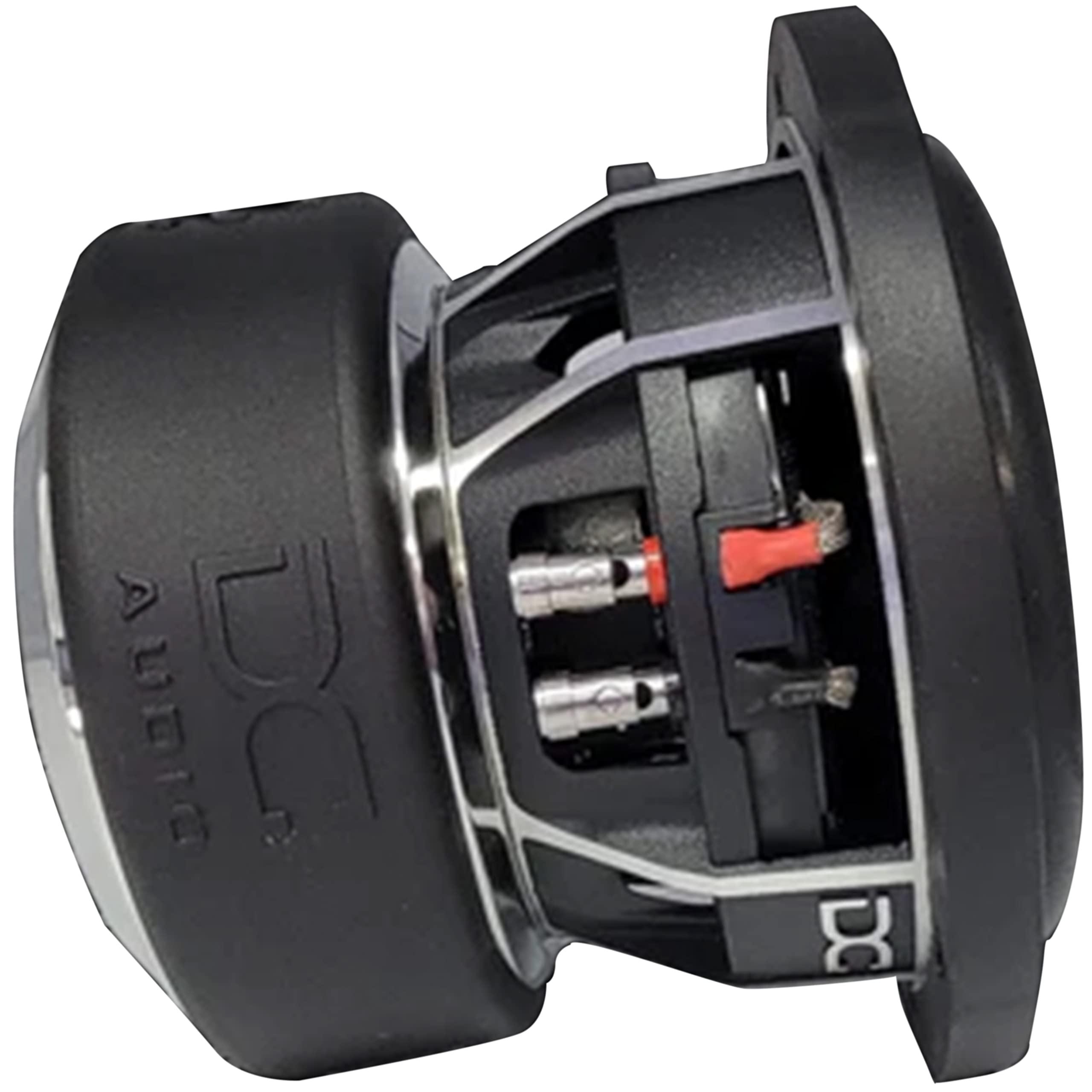

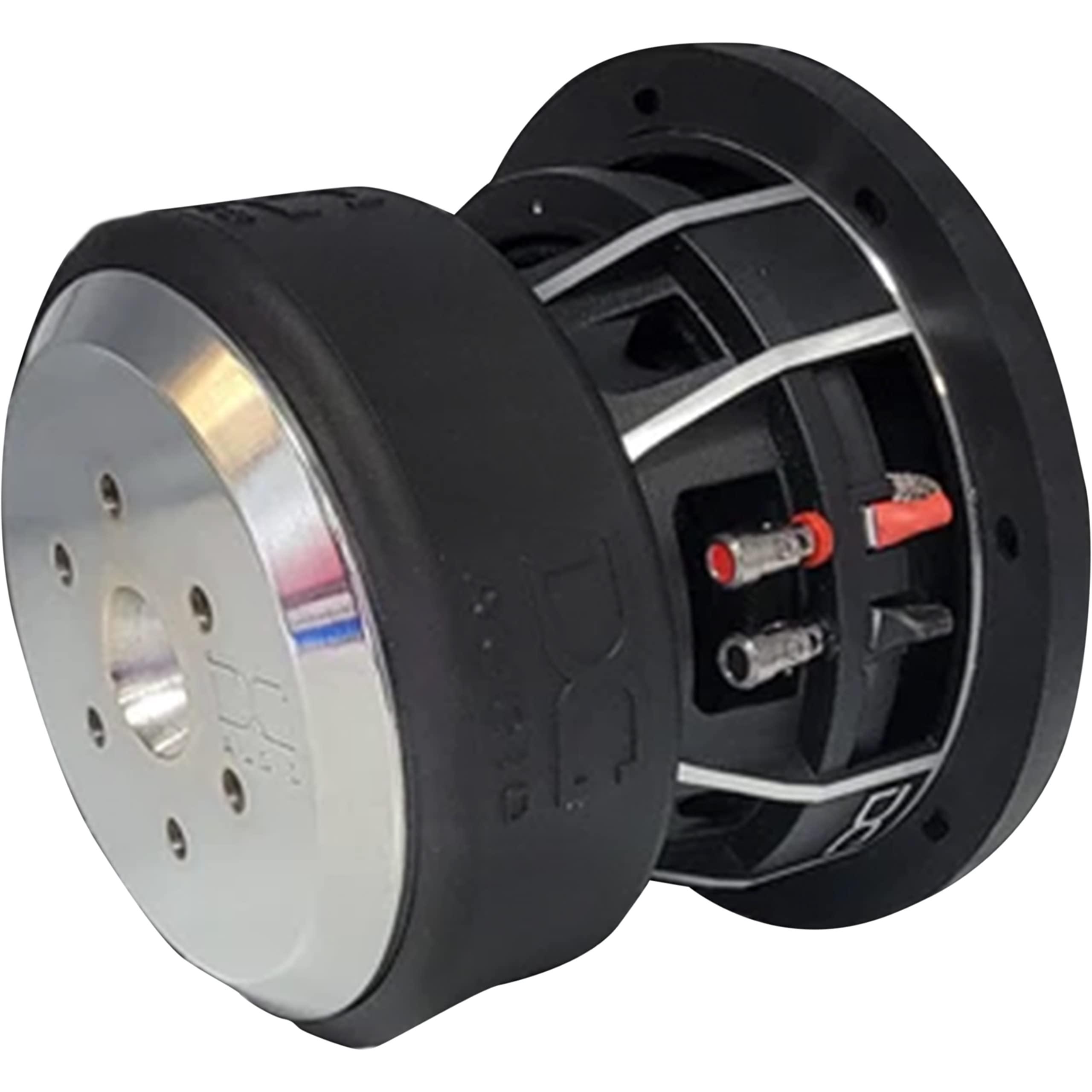

- M4 6.5 D4 - DC Audio 6.5" 300W RMS Dual 2-Ohm Subwoofer
DC Audio | M4 6.5 D4" 300W RMS Dual 4-Ohm Subwoofer
FEATURES:
SPECIFICATIONS:
As newer cars and trucks with less and less space are being designed and released, a demand for a smaller subwoofer with high output is needed to supply the demand for Bass in a small space application. The DC Audio 6.5 inch subwoofer is just that. Designed to work in extremely small box volumes and give you the maximum amount of output. These little monsters have you covered on the low frequency spectrum.
Extremely rigid non-pressed paper cone assembly
High Roll Stitched Multilayered reinforced polymer foam surround
Rigid propylene dust cover with White DC logo
Laminated Nomex Spiders
Sewn flat heavy duty tinsel lead wire
Die-Cast DC aluminum black frame / no invert mount
FEA analyzed and optimized motor assembly Fully CNC machined
Rubber mounting gasket
Rubber motor Boot
DVC 2.0 Copper voice coil.
M4 6.5" Subwoofer D2
Mounting Depth 5"
Mounting Hole Diameter 6.02"
Outside Driver Diameter 7.25"
VC Diameter 2.0"
Displacement .05 ft
Power Handling rms/peak 300/600
Sd 143.14 cm
Vas 3.464 L
Cms 0.119 Mm/n
Mms 92.57 g
Fs 47.9 Hz
Bl 14.4 N/A
Xmax 16mm
Ref SPL @1 watt 80.4 db
Suggest Sealed Box 0.15 ft
Suggested Ported Box 0.3 ft
