Description
- Note: this wireless card could not work on IBM/Lenovo/Thinkpad and HP version laptop
- Novatel Expedite wireless wwan E371 DW5804 for DELL DP/N 01YH12: Novatel Wireless ExpediteE371 PCI Express Mini Card is an embedded module that can be integrated into laptops and other devices for 3G/4G mobile data applications. Powered by the Qualcomm MDM9200 chipset, the Expedite E371 offers high performance to the user on LTE 700 MHz and AWS bands with global fallback to HSPA+/UMTS
- Technology/Bands LTE AWS, 700 MHz (B17) (with MIMO) HSPA+/UMTS 850/AWS/1900/2100 MHz GPRS 850/900/1800/1900 MHz
- Beyond Broadband Data Speeds on the Move: LTE technology provides data speeds up to 100 Mbps (much greater than many wired broadband data services). Offers fast, wireless broadband speeds
- Size - 51 x 30 x 4.4 mm (H x W x D)

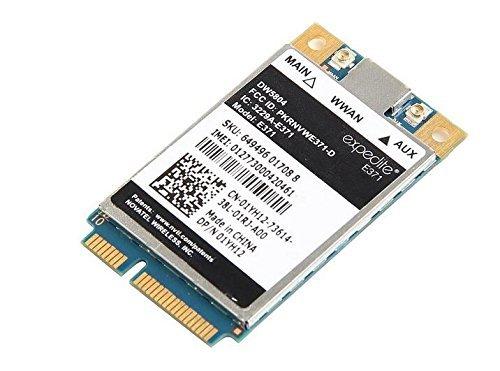

Dell Wireless DW5804/E371 4G (LTE-3G) PCI-E WWAN Card for DELL DP/N 01YH12
Novatel Expedite wireless wwan E371 DW5804 for DELL DP/N 01YH12: Novatel Wireless ExpediteE371 PCI Express Mini Card is an embedded module that can be integrated into laptops and other devices for 3G/4G mobile data applications. Powered by the Qualcomm MDM9200 chipset, the Expedite E371 offers high performance to the user on LTE 700 MHz and AWS bands with global fallback to HSPA+/UMTS
The small Expedite E371 module leverages the LTE and HSPA+/UMTS networks. Switching between networks enables your customers to work, play,and stay connected anytime, anywhere worldwide
Technology/Bands
LTE AWS, 700 MHz (B17) (with MIMO)
HSPA+/UMTS 850/AWS/1900/2100 MHz
GPRS 850/900/1800/1900 MHz
Data Speeds
100 Mbps Download
50 Mbps Upload
Advanced Technologies
2 x 2 MIMO - Enables industry leading data speeds
Receiver Equalization - improves
performance in noisy and highly mobile environments
Receiver Diversity - improves performance at cell edges and in buildings
Dimensions and Weight
PCI Express Mini Card Form Factor - F2
Size - 51 x 30 x 4.4 mm (H x W x D)
Weight - 11 g
Host Interface
PCI Express Mini Card
Antenna - 50 0hm compatible
Power consumption
Voltage 3.0-3.6 v
Optimized for low current drain
Environmental
Spec compliant*
Operating temperature: -30C to 65C(-4F to 140F)
Storage temperature: -40C to 85C (-40F to 185F)
Supported OS: Windows 10 64 bit, Windows 8.1, Windows 7, Windows Vista, Windows XP
