Description
- Diamond Elite DES Series Amplifier: The DES1000.5D is a 5-channel full-range Class D amplifier engineered for exceptional performance and efficiency.
- Compact Yet Powerful: Redesigned with a smaller footprint while maintaining consistent dimensions across all models, ensuring seamless installation without sacrificing power.
- Advanced Digital Engineering: Features multiple switched speaker level turn-on options (VOX/DC Offset/REM) and the latest digital chipset technology for precise tuning and optimal sound quality.
- Powerful Output & Versatile Configuration: Capable of 90W RMS x 4 & 150W RMS x 1 @ 4, 150W RMS x 4 & 250W x 1 @ 2, and bridged 300W x 2 / 500W x 1 @ 4, delivering dynamic and distortion-free sound.
- Premium Sound Quality: Ultra-low THD (0.03%), high signal-to-noise ratio (-96.7dBA @ full power), and damping factor >70 ensure clean, accurate bass and crystal-clear highs.
- Flexible Crossover & Tuning Controls: Includes variable high-pass (35Hz-350Hz) and low-pass (35Hz-350Hz) crossovers, giving users the flexibility to fine-tune their sound system.
- Diamond Audios Commitment to Excellence: Designed with cutting-edge technology and rigorous engineering, Diamond Audio amplifiers are renowned for durability, reliability, and superior audio performance.

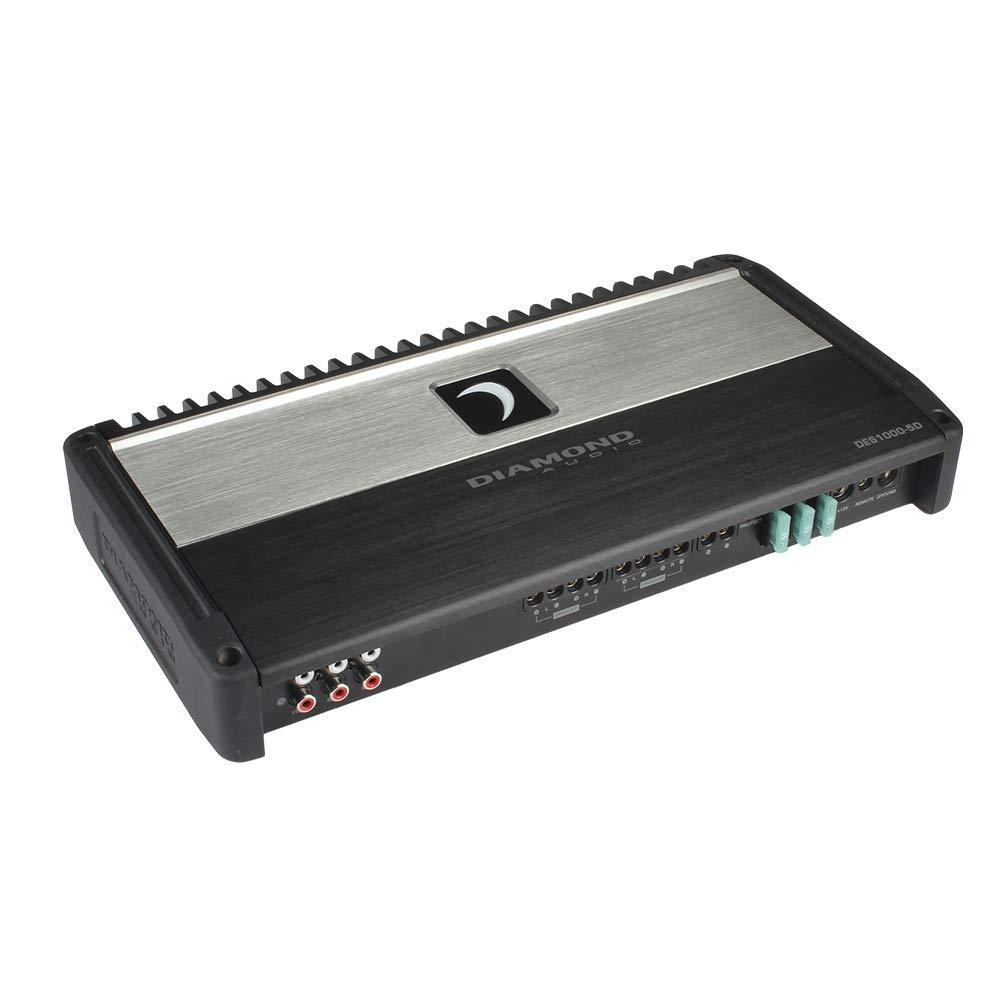

DES1000.5D - DES 5-Channel Full Range Class D Amplifier
Introducing the Diamond Elite DES Series Amplifiers our flagship line that has set the standard since its debut last year. Engineered and designed from the ground up, these amplifiers are more compact than previous generations while maintaining consistent footprint dimensions across all models. This meticulous design ensures the Diamond Elite DES Series amplifiers deliver even more dynamic sound and optimal rated power at all impedance levels.
Each amplifier in the Diamond Elite DES Series boasts advanced features such as multiple switched speaker level turn-on options (VOX/DC Offset/REM) and the latest digital chipset technology. These innovations provide unparalleled installation flexibility and the precise controls needed to fine-tune and elevate the sound quality of any car audio system.
Experience the next level of audio performance with the Diamond Elite DES Series Amplifiers. Upgrade your car audio system with these powerhouse amplifiers and hear the difference that cutting-edge engineering and superior design can make. Dont just listen to your music feel it, with the Diamond Elite DES Series.
Specifications: Channels 1-4: CH 1-4 150WRMS x 4 @ 2 CH 1-4 90WRMS x 4 @ 4 CH 1-4 300WRMS x 2 @ 4 Bridged Channel 5: CH 5 500WRMS X 1 @ 1 CH 5 250WRMS X 1 @ 2 CH 5 150WRMS x 1 @ 4 S/N Ratio (A weighted @1W): -76.7dBA S/N Ratio (A weighted @ FP): -96.7dBA Dimensions (Remote Included): 11.81" x 7.25" x 2" (299.9mm x 184.2mm x 50.8mm) Latest High-Efficiency Full Range Digital Topology Surface Mount Component Technology with 4-Layer PCB Common Compact Size with Single-Sided Connections and Top Mount Controls Handles HI and LO level input up to 12V Switched Speaker Level Turn On Options (VOX/DC Offset/REM) Remote Bass Level Control Included Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers 0 -180 Degrees of Phase adjustment Bass Boost EQ Up To 12dB
What's in the box: DES1000.5D Amplifier Remote Bass Level Control with 16-foot cable Mounting Brackets and Hardware
