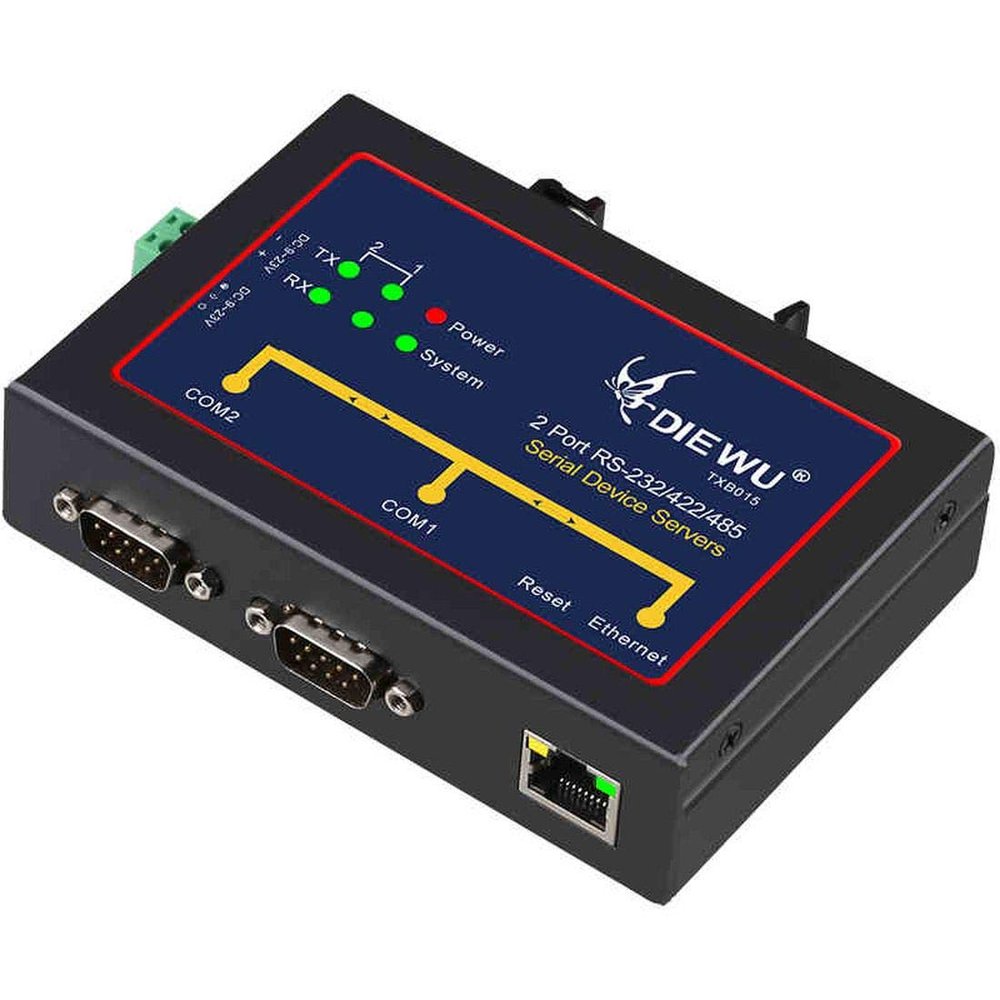

DIEWU Industrial 2 Ports RS232/422/485 Serial Device Server Converter Support VCOM/TCP Server/TCP Client/UDP Mode

Description

• - Chipset: TX214
• - Port number: 1 port 10/100M Auto MDI-MDIX RJ45
• - Operation modes; VCOM,TCP Server, TCP Client, UDP
• - Data rate: 10/100M
• - Other function: DIN Rail type

Product specification:
- Model number: TXB015
- Chipset: TX214
- Port number: 1 port 10/100M Auto MDI-MDIX RJ45
- Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x
- UART port: 2* COM PORTS
- Data rate: 10/100M
- Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
- LED Indicator: Link/Act, Power, TX/RX
- Baud rate: 110bps~2304000bps
- Operation modes; VCOM,TCP Server, TCP Client, UDP
- Dimension: 119*81*31mm
- Power Input: DC12V/1A
- Power Consumption: Max3.5W
- Environment
Operating Temperature: -10 ?-60 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -20?-70?
Relative Humidity: 5%-90%(non-condensing)
- Other function: DIN Rail type

ID: admin
PW: system
IP Address: 192.168.2.1
Subnet mask: 255.255.255.0
Working mode: VCOM
Serial port baud rate: 921600bps
Serial Port parameters: 921600,8,N,1
