Description
- DIGITAL TO ANALOG AUDIO CONVERTER Converts coaxial or toslink digital PCM audio to analog L/R and 3.5mm Jack audio simultaneously ( not capable of being reversed).
- WIDE COMPATIBILITY This DAC converter works perfectly with most home audio device, including for PS3, for PS4 for -ray players, HD DVD HDTV Home Cinema Systems, AV Amps, etc.
- 192KHZ SAMPLING RATE Supports Sampling Rate at 32KHz, 44.1KHz, 48KHz, 96KHz and 192KHz; 24-bit S/ PDIF Incoming Bit Stream on Left and Right Channels.

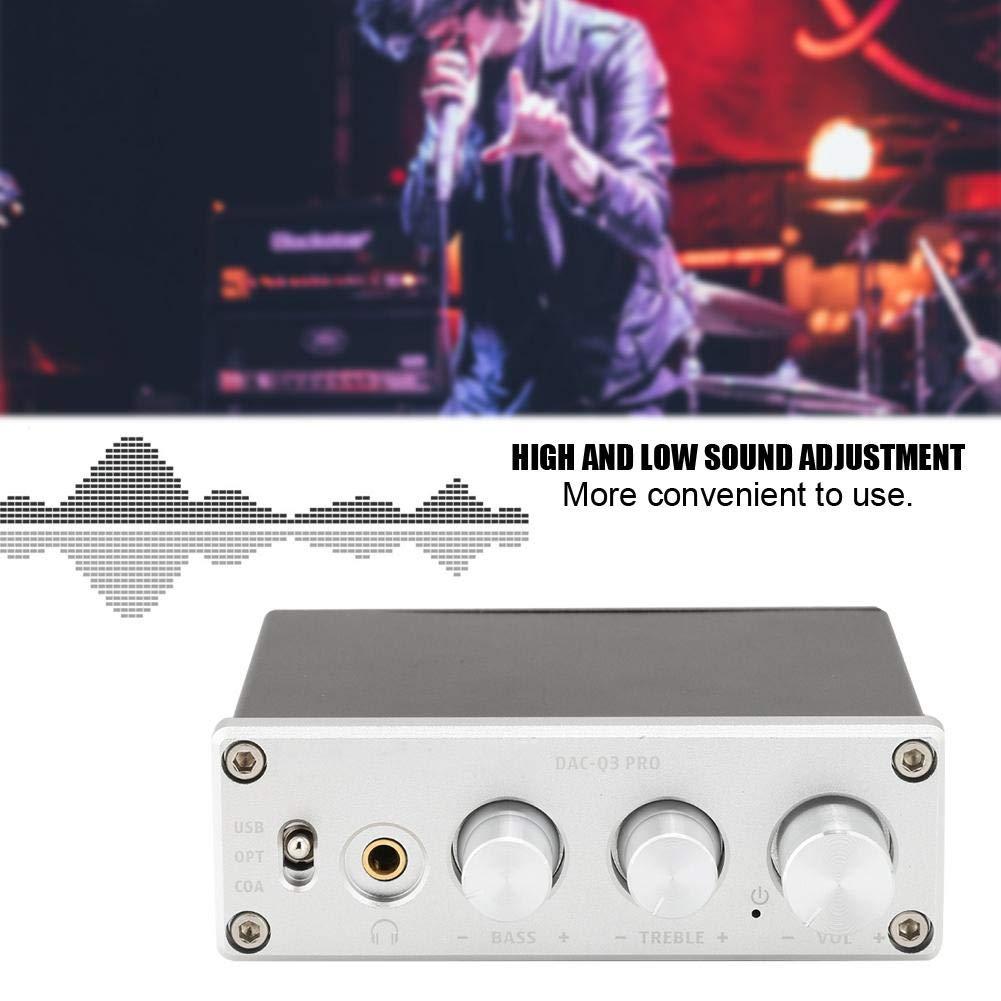

- INDEPENDENT ADJUSTMENT OF TREBLE AND BASS The volume control can be used to adjust the output volume of headphones and , specially designed independent adjustment function of treble and bass, enjoy more delicate and smooth HIFI sound quality.
- INPUT AUDIO CONNECTOR 1 x Toslink, 1 x (Coaxial), 1 x USB; Output Audio Connector: 2 x (R/L), 1 x 3.5mm Jack; 1xDC 5V Power Supply.
Specification:
Headphone amplifier output maximum power: 90mW / 32 ohms
Color: Black / Silver (Optional)
Power supply: DC5V1A
Frequency response range: 20Hz-20kHz (3dB)
to Noise Ratio (SNR): 105dB
Treble adjustment range: 6dB
Bass adjustment range: 6dB
Sampling rate: USB-24bit/96kHz, Coaxial/Optical-24bit/192kHz
Control mode: tact switch + potentiometer knob
Input interface: fiber / coaxial; PC-USB
Output interface: gold-plated for ; 3.5MM headphone jack
Package List:
Decoder *1
Charging cable *1
Fiber optic cable *1
Data line *1
Instruction manual*1
