Duet3D PanelDue LCD Controller Module, Without Touchscreen

$ 75.74
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description

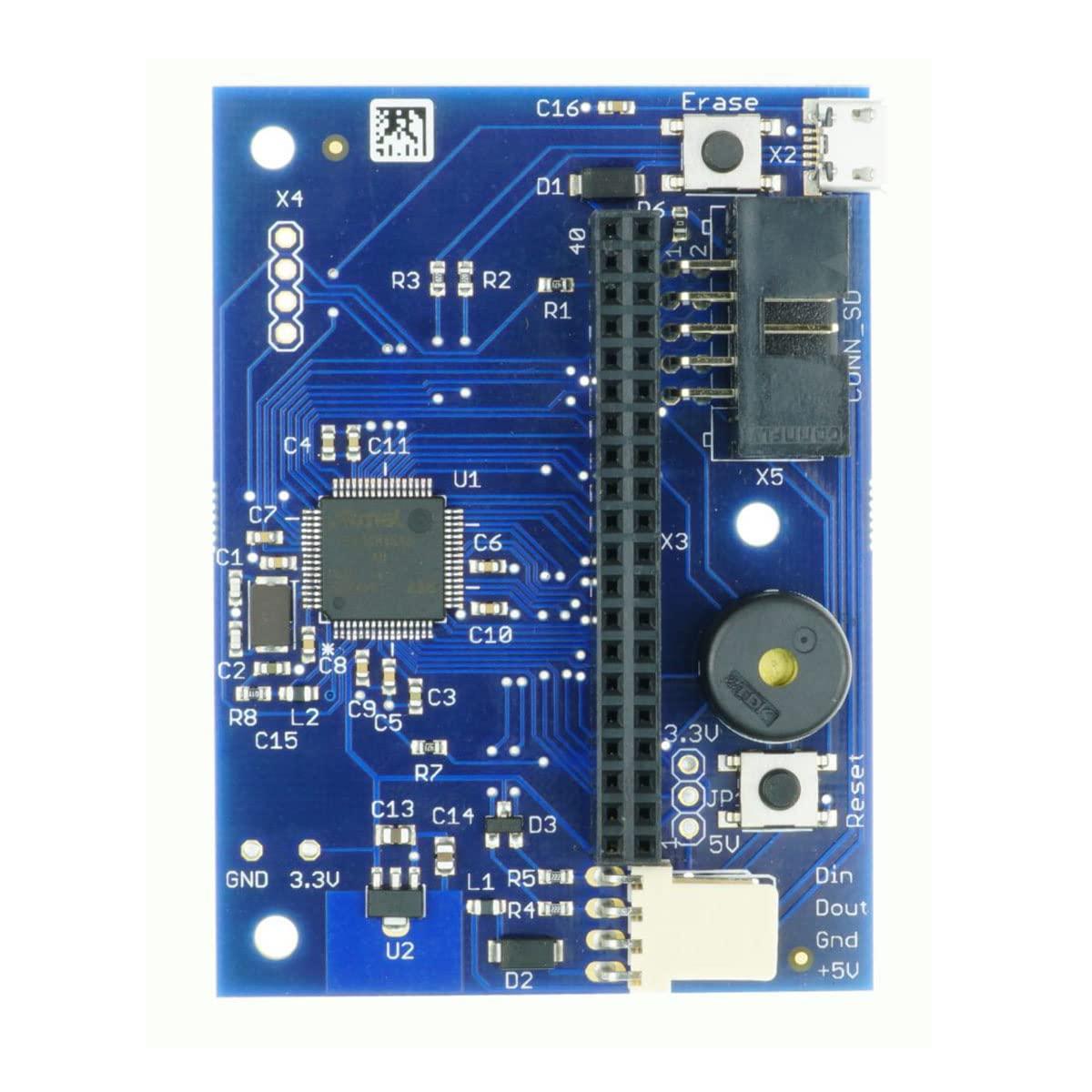

  • a separate controller PCB that is not integrated into the LCD PCB
  • Supports a separate LCD of 4.3", 5" or 7" sizes.
  • 4-wire cable to connect the PanelDue to your controller board for the serial and power connections.


Connectivity: A 300mm long ribbon cable (maximum recommended length) is supplied for the on board SD card, power and serial data. Alternatively if the onboard SD card is not required then a 4-wire cable for the serial and power connections is also supplied (1m long)

Voltage: 5V power from host 3D printer controller. 2-wire async serial interface with 3.3V signal level (5V tolerant input).

Compatible screens: TFT displays using a SSD1963 controller, Resistive touch panel using a XPT2046 or compatible chip, have a 220 2.54mm pitch connector.
