Description
- Connector (transmitter) : DVI-D (male), SC connector (female)
- Connector (receiver) : DVI-D (male), SC connector (female)
- Optic fiber : 1ch / Multi-mode(50/125m)
- WUXGA (1920 x 1200) @ 60Hz / 500M (1,650ft) SXGA (1280 x 1024) @ 60Hz / 1,000M (3,300ft)
- Dimensions : 40W x 67D x 15H (mm)

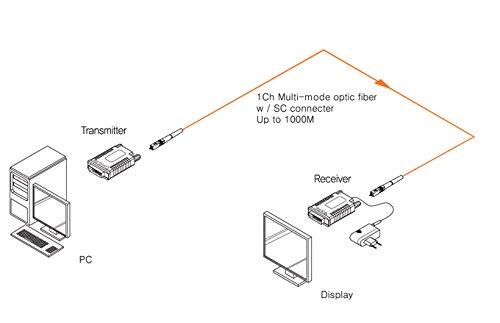

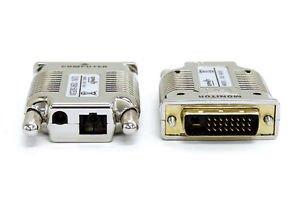

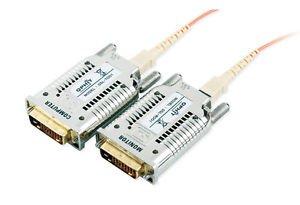

The DSL-M Fiber Optic Extender is designed to route high resolution DVI signals up to 5600ft 1.7KM with unmatched signal fidelity and transparency. The unit consists of a high-speed optical transmitter module that converts the DVI input signals into light pulses for transmission over a single strand of multi-mode fiber optic cable, and an optical receiver module that converts the light pulses back to a DVI signal for display on a monitor or projector. A programmable memory chip provides EDID support for any display without the need for a copper cable. These features make the DSL-M the perfect solution for critical display applications that demand flawless DVI signal quality over very long cable runs. Connector (transmitter) : DVI-D (male), SC connector (female) Connector (receiver) : DVI-D (male), SC connector (female) Optic fiber : 1ch / Multi-mode(50/125m) Pixel Clock : 165MHz (single link) Supporting Resolution & Distance - WUXGA (1920 x 1200) @ 60Hz / 500M (1,650ft) - SXGA (1280 x 1024) @ 60Hz / 1,000M (3,300ft) Power Consumption (transmitter) : 0.8W (max) Power Consumption (receiver) : 0.6W (max) Power Supply (transmitter) : Optional Power Supply (receiver) : 100~240V DC 5V, 2A Dimensions : 40W x 67D x 15H (mm) Operating Temperature range : 0C ~ 50C Storage Temperature range : -20C ~ 70C
