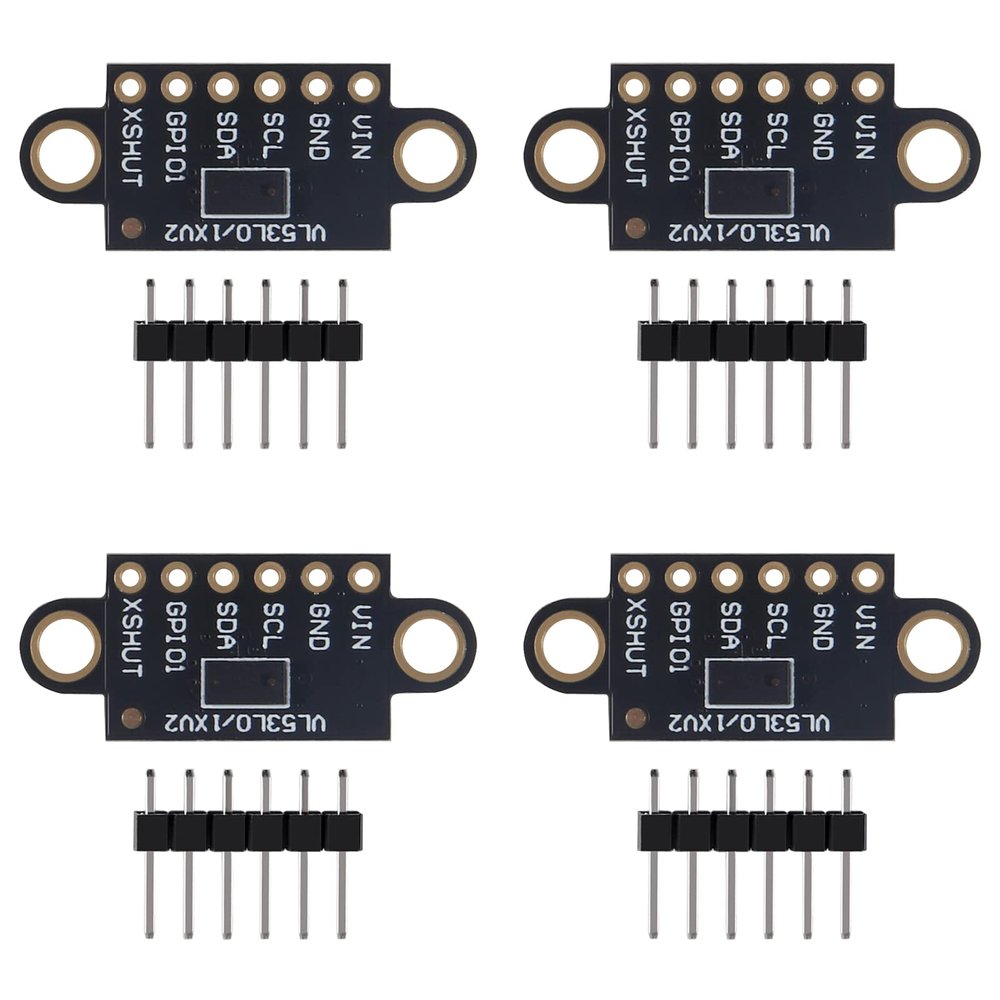

DWEII VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout VL53L0X ToF Laser Range Finder Pack of 4

Description

• The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use.
• Working Voltage: 2.6V - 5.5V; Maximum Sensoring Distance: 2m
• A time-of-flight ranging system integrated into a compact module ;Ranging measurements are available through the sensors IC (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.
• Range from 3% at best to over 10% in less optimal conditions
• you will get 4pcs VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout

PIN Description VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator,
you can instead use this pin as a 2.8 V input with VIN disconnected.) VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the IC lines high to this level. GND The ground (0 V) connection for your power supply. Your IC control source must also share a common ground with this board. SDA Level-shifted IC data line: HIGH is VIN, LOW is 0 V SCL Level-shifted IC clock line: HIGH is VIN, LOW is 0 V XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low
puts the sensor into hardware standby. This input is not level-shifted.
Package included:
4* VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout
