EBYTE High Power ZIGBEE Gateway 100M Adaptive Network Speed Full Duplex 4 Working Modes Sopports Two SOCKETs

Description

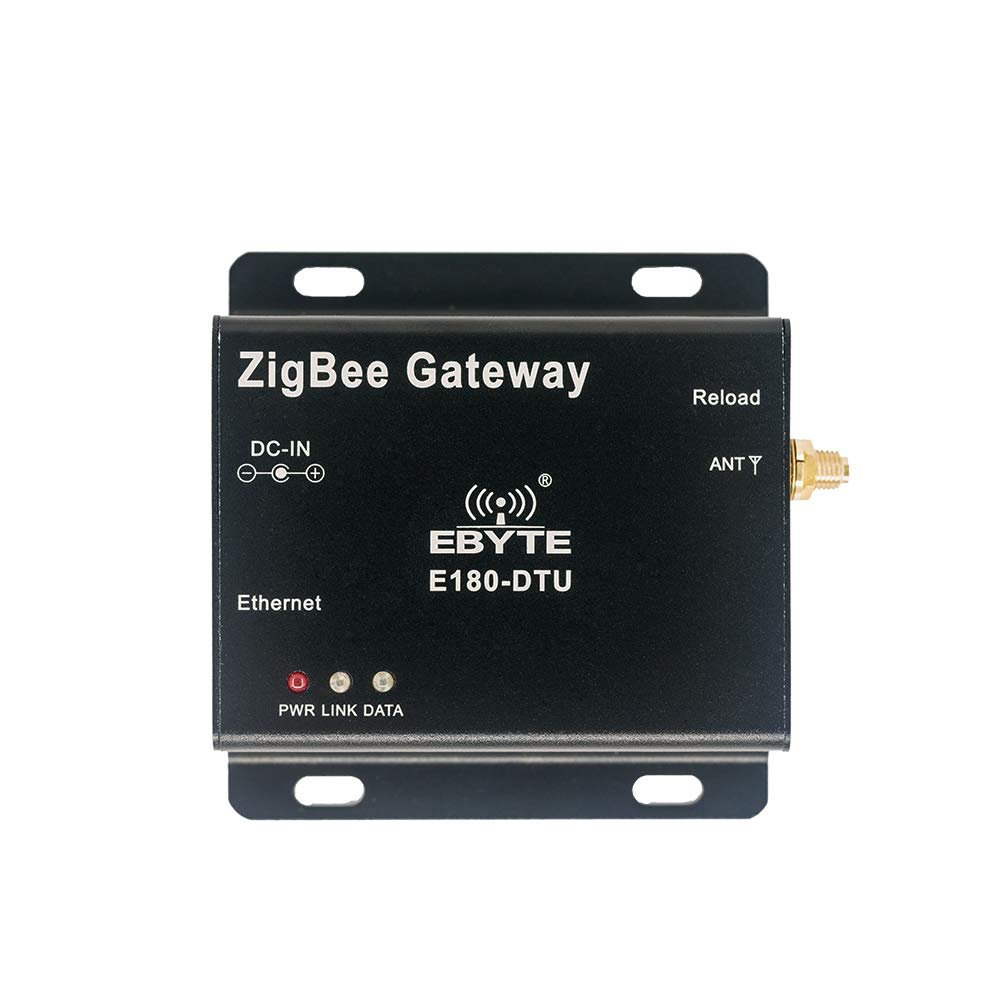

• E180-DTU (ZG120-ETH) is a high-power ZIGBEE gateway, working as ZIGBEE node devices with adaptive network speeds (up to 100M, full duplex)
• It provides four working modes, i.e. TCP Server, TPC Client, UDP Server, and UDP Client. Two SOCKETs can work at the same time.
• There are four kinds of logical devices in a ZigBee network, coordinator, router, terminal device, and dormant terminal.
• Users can perform related configurations through WEB page.

Introduction?
E180-DTU (ZG120-ETH) is a high-power ZIGBEE gateway, working as ZIGBEE node devices with adaptive network speeds (up to 100M, full duplex). It provides four working modes, i.e. TCP Server, TPC Client, UDP Server, and UDP Client. Two SOCKETs can work at the same time. There are four kinds of logical devices in a ZigBee network, coordinator, router, terminal device, and dormant terminal.

Specifications:
Network port specifications: RJ45?10/100Mbps
Network protocol: IP? TCP/UDP? ARP? ICMP? IPV4
Simple transparent transmission method?TCP Server?TCP Client?UDP Server?UDP Client?IoT platform
TCP Server connection: Supports up to 6-way TCP connections
IP acquisition method: Static IP? DHCP
DNS: Available
User configuration: Web configuration
Operating current: Coordinator 99mA Router 103mA Terminal 102mA dormant terminal 95mA
Voltage: 8V~28VDC, 12V or 24V power supply is recommended
Operating temperature: -40 ~ +85??Industrial grade
Operating humidity: 10% ~ 90%?Relative humidity, non-condensing
Size: 84mm*82mm*25mm
Weight: 125.85g
Storage temperature: -40?+125??Industrial grade
