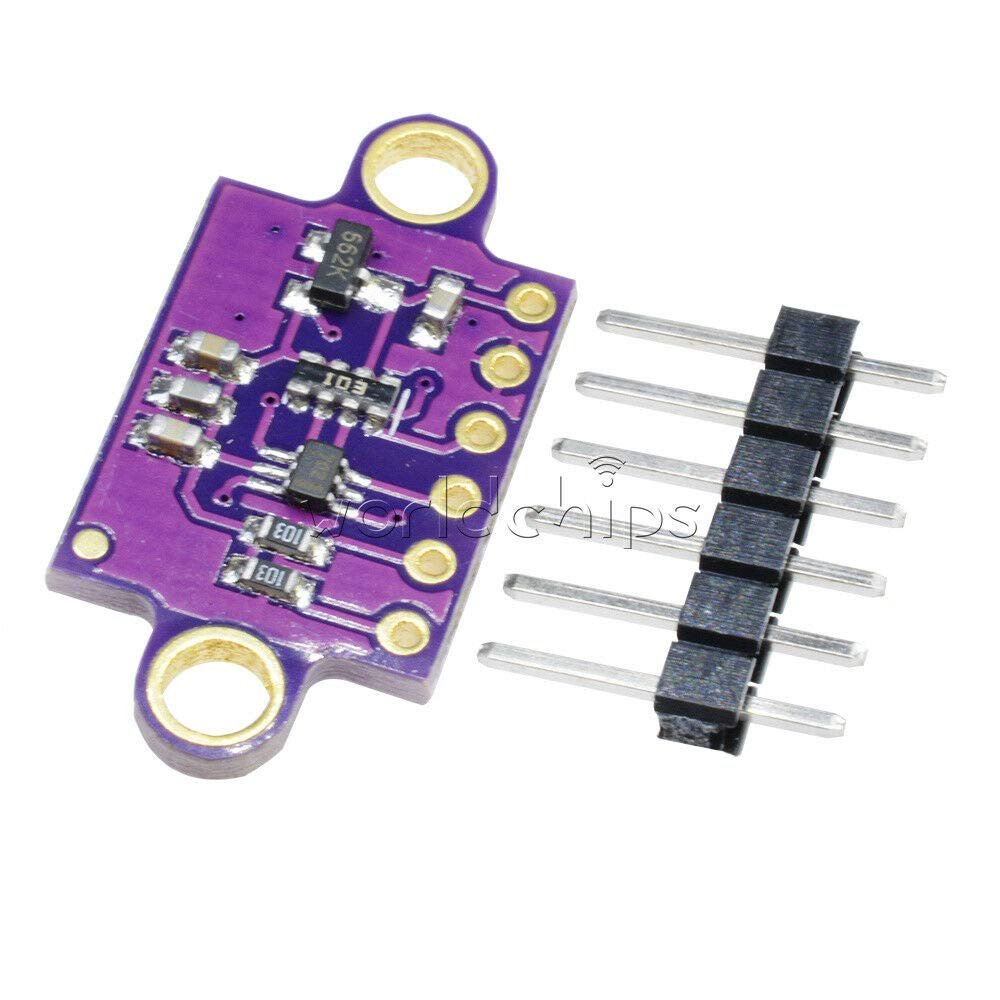

Electronic Components GY-VL53L0XV2 VL53L0X Time-of-Flight Distance Sensor Breakout Module

Description

Product Description:
Home
Arduino
Module
Sensor
Chips
About Us
Descriptions:
PIN DescriptionVDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the IC lines high to this level.
GND The ground (0 V) connection for your power supply. Your IC control source must also share a common ground with this board.
SDA Level-shifted IC data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted IC clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
Package include
1x GY-VL53L0XV2V L53L0X Time-of-Flight Distance Sensor
