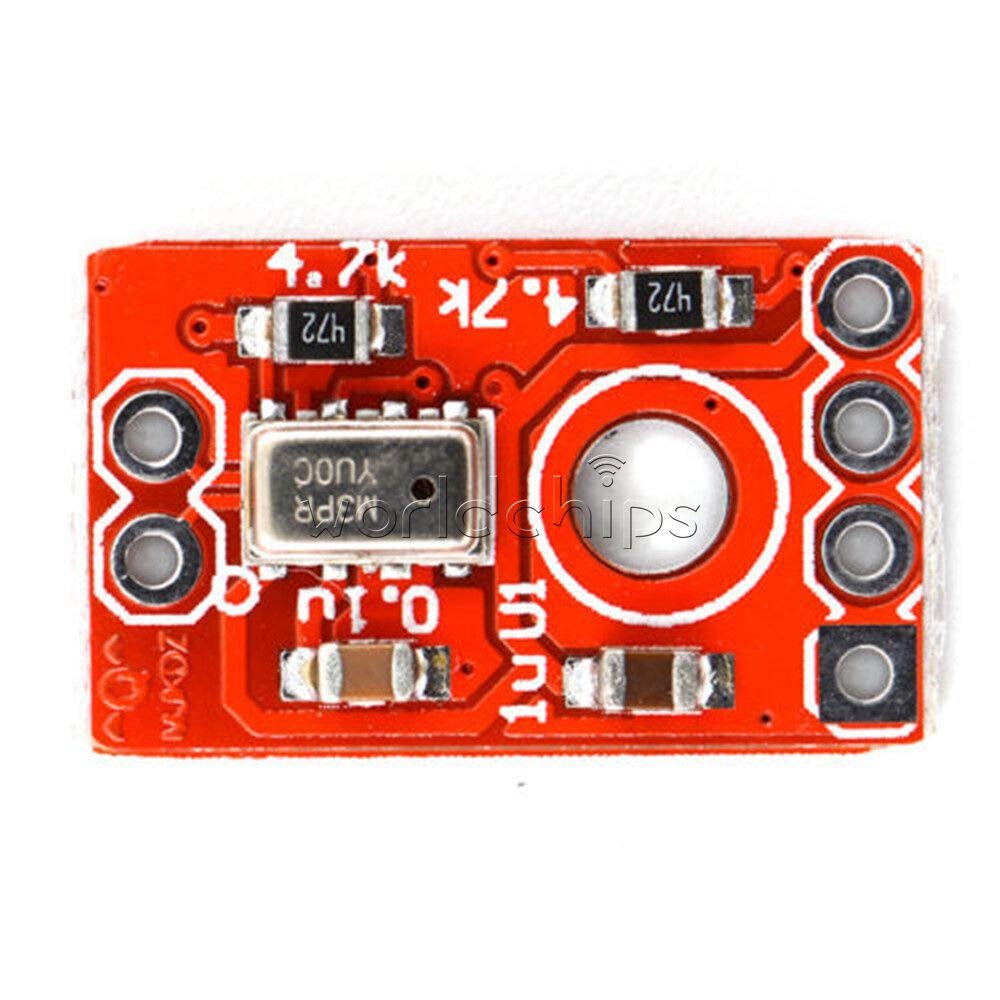

Electronic Components MPL3115A2 Intelligent Temperature Pressure Altitude IIC I2C Sensor for Arduino

Description

Product Description:
Home
Arduino
Module
Sensor
Chips
About Us
Features:
Resolution less than 1 ft / 0.3 m
Pressure range: 20-110 kPa
Compensation, direct reading (no software required):
20-position pressure measurement (Pascal)
20-bit height measurement (m)
12-bit temperature measurement
I2C digital output interface
2 programmable interrupt pins
Built-in 32 sampling FIFO buffer
Onboard intelligence: Flexible sampling rate up to 128 Hz
Specifications:
Absolute measurement range: 20 to 110 kPa
Relative measurement accuracy: 0.05 kPa
Effective resolution: 1.5Pa / 0.3m
Operating temperature range: -40 to 85 C
Supply voltage: 2.5 to 3.6 V
Logic IO port: 2.5 to 5.0 V
I / O supply voltage: 1.62 to 3.6 V
PCB size: 18 * 11mm
Power consumption: 2A (Standby mode)
Low power mode: 8.5A, 1Hz sampling
Package Include:
1 x MPL3115A2 I2C Intelligent Temperature Pressure Altitude Sensor For Arduino
