Description
- PoE output: 95W Max.
- PoE Standard: IEEE802.3 af/at/bt.
- Support 10/100/1000 Base-T, DIN-Rail / Wall-mount installation.
- Industrial Grade PoE injector. Operating temperature: -40 to 80 ( -40 to 176).

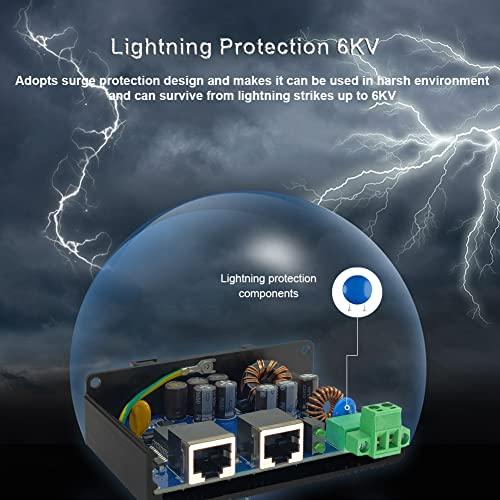

- The PoE adapter can be used in harsh environment, with design of 6KV lightning protection.

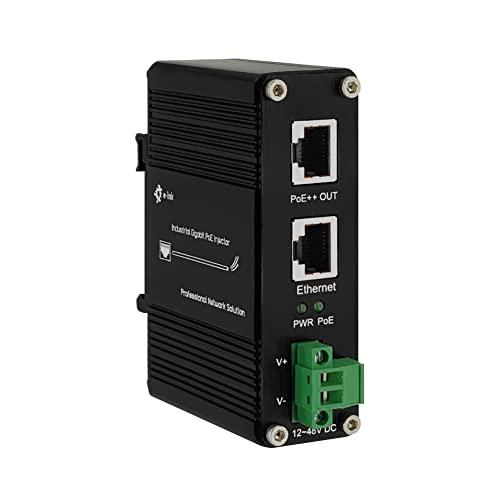

Elenzk Hardened Industrial Gigabit PoE++ Injector 12-48VDC Input with DIN-Rail and Wall Mount Connecting The IEEE802.3 af/at/bt PoE Device (95W)
Overview:

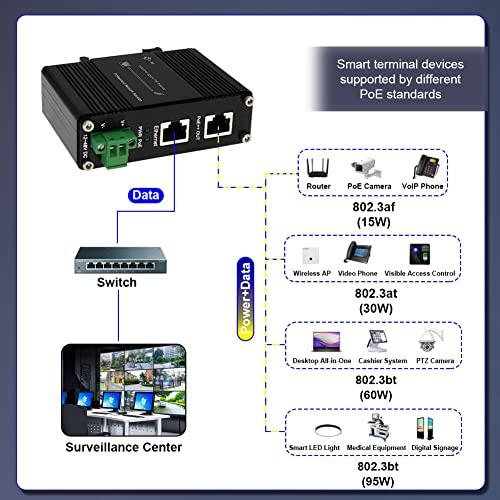

The 95W PoE Injector is an Industrial Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-TX and are compliant with IEEE 802.3ab.
The PoE Injector provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

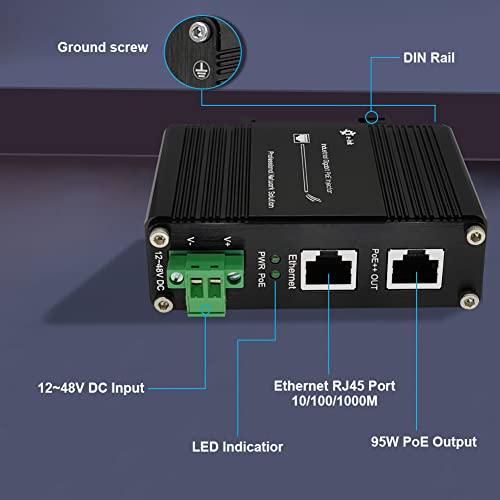

Interface: 2 x RJ-45 (Data-In, Data+PoE Out)
Ethernet Data Rate: 10/100/1000Mbps
Power Input: 12~48VDC (Terminal Block)
Standard: 802.3 af/at/bt, PoE++ 95W

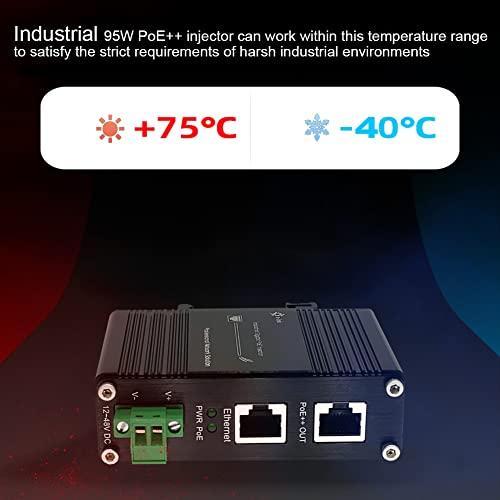

Operating Temperature: -40C to 80C (-40F to 176F)
Features:
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power;
-- Over Ethernet Output Port(Data + Power);
-- Support 95W Power over Ethernet (PoE++) Power Sourcing Equipment;
-- Support 10/100/1000Base-TX;

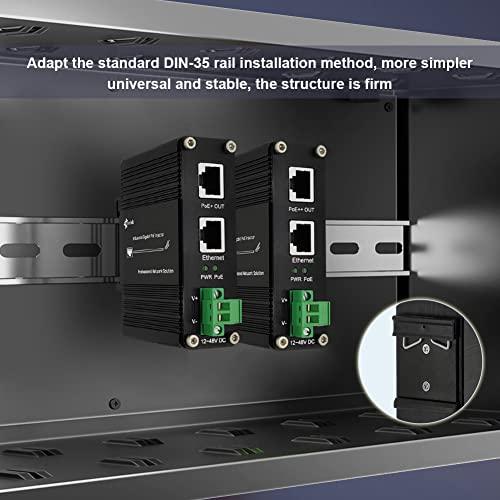

-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics.
Electrical and Mechanical
PoE Standard: Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
Transmission Distance: 100m (328 feet)

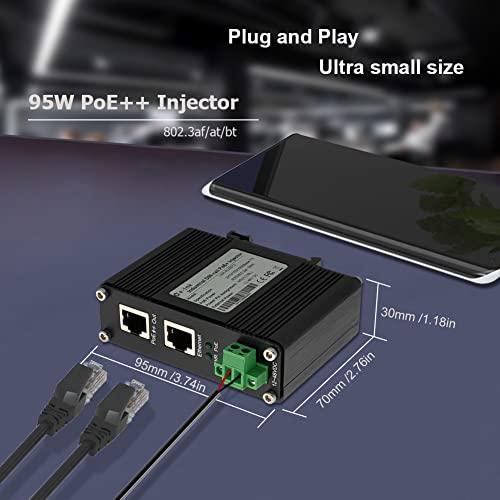

Dimensions (WxDxH): 95*70*30 mm (3.74*2.76*1.18 inch)
Weight: 0.25Kg (0.55Ib)
Casing: Aluminum Case
Warranty: 5-Year Warranty
Package:
1 * EK-001-95W PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
