Description

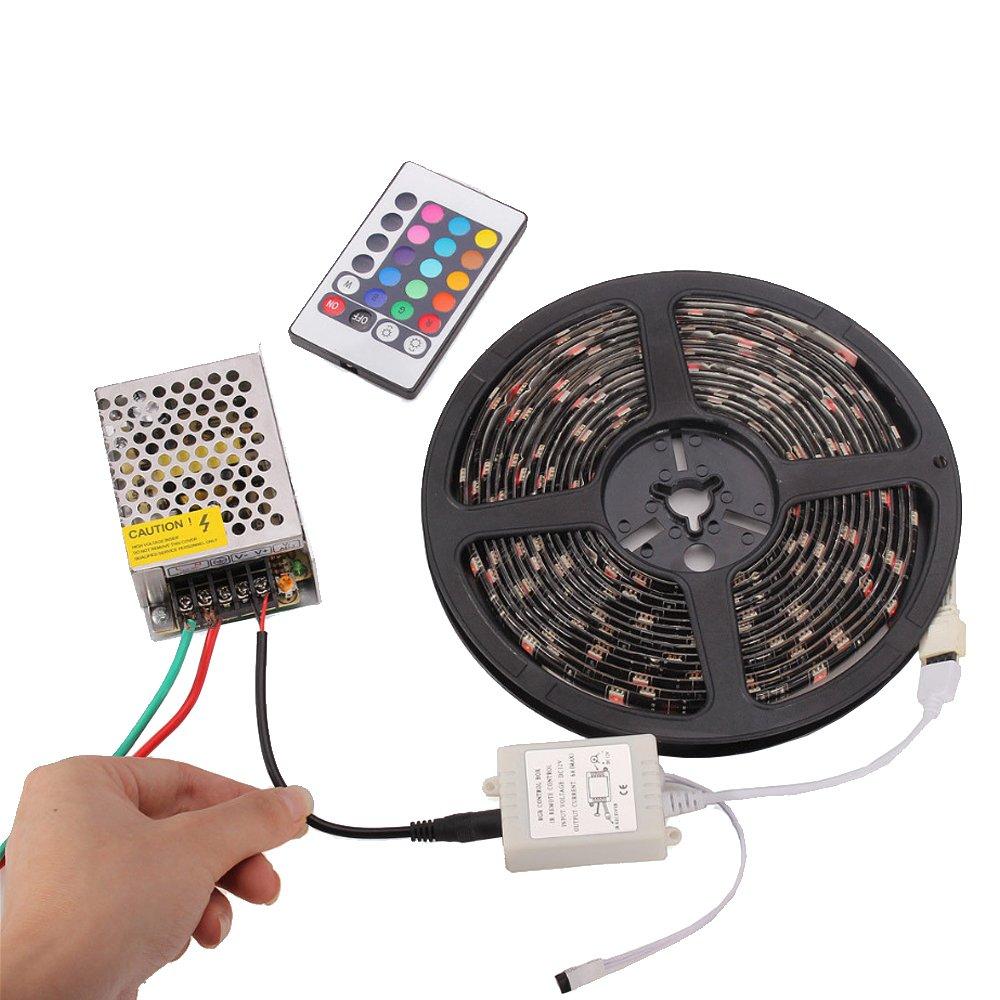

- This is a DC12V Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
- There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
- Full range of current output is possible for LED lighting with dimmable function.
- Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED 60LEDs/m=12W/m, 24W(this listing)12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m

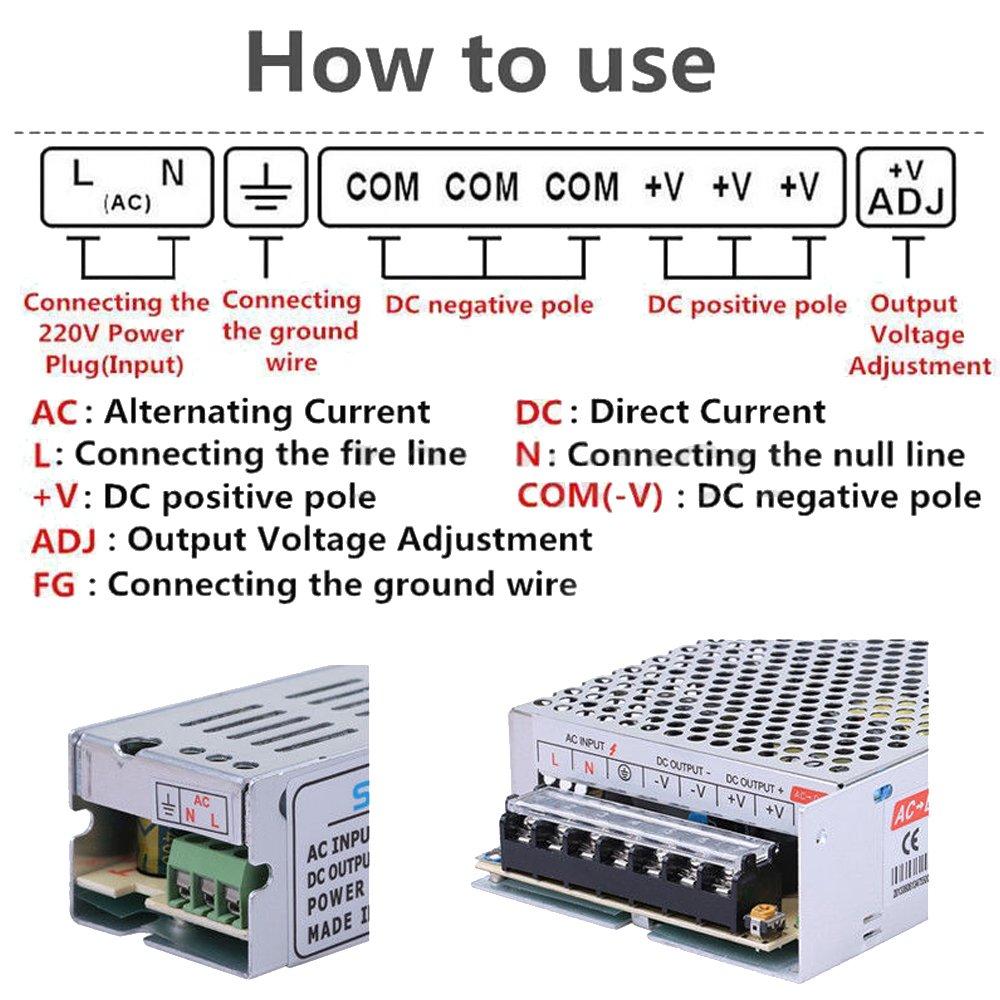

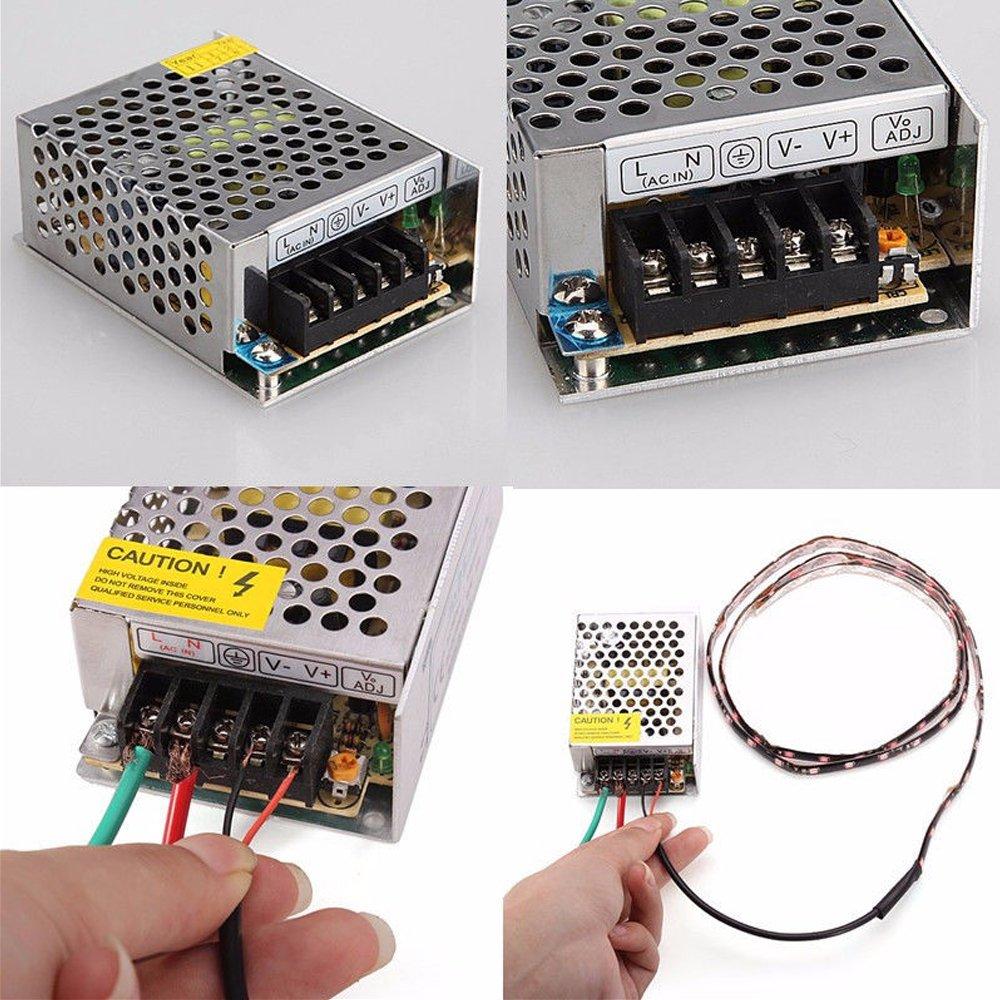

Connection:
1.L, N: AC power input
2.GND: DC power output -
3.V: DC power output +
4.+V / ADJ: Adjust the output voltage
5.Input: 110V/220V AC; Output: DC 12V Output voltage is adjustable 10%. Two sets of output Channel.
Package Include:
1 x switch power
