Description
- 12V DC

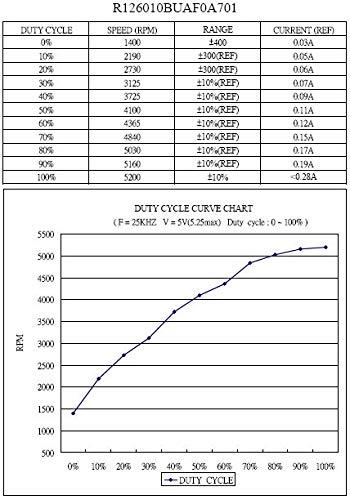

- 1400~5200 RPM (PWM)
- Noise Level: 21 ~44 dBA
- Air Flow: 5.66~21.03 CFM
- Fan connector: 4-pin PWM

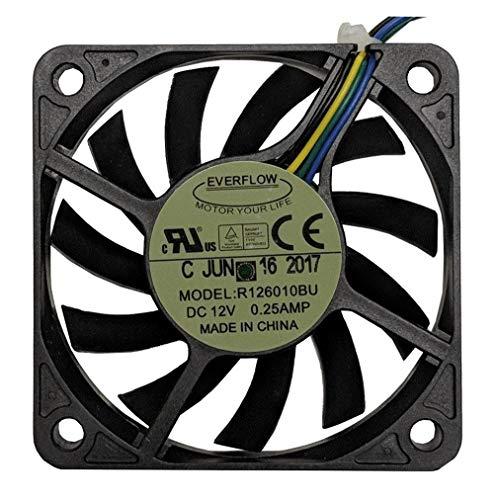

Everflow 60x60x10mm 12 volt DC Fan with PWM Function, Model R126010BUAF
840556022497

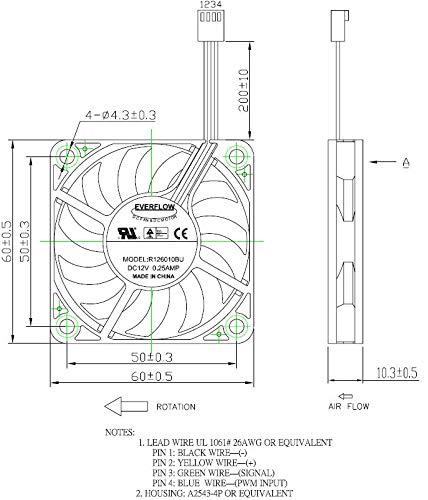

Fan Size: 60x60x10mm
Fan voltage: 12V (Operating range:11.4~12.6 V DC)
Bearing: Dual Ball bearing
Fan speed: 1400~5200 rpm
Noise Level: 21 ~44 dBA
Air Flow: 5.66~21.03 CFM
Power Draw: 0.72 ~3 W
Static pressure: 0.27~2.75 mmH2O
Fan connector: 4-pin PWM
Lead wire: UL1061 #26AWG or equivalent
Pin Assignment: Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
