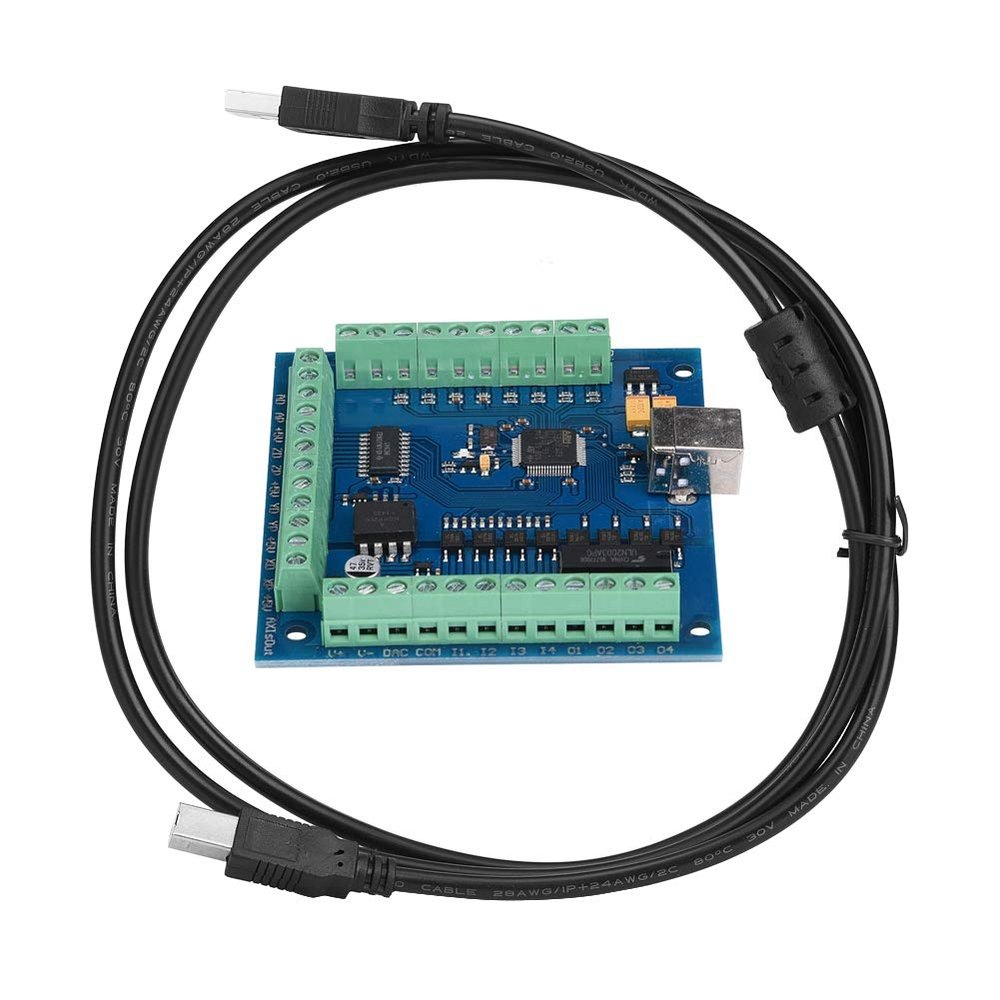

EVTSCAN Mach3 Motion Card MACH3 USB 4 Axis 100KHz USB CNC Motion Controller Card Breakout Board Controller for Engraving

Description

• Support for 4-axis linkage, you can connect four stepper motor drives or servo drives. 1 status LED, indicate connection status on the board
• Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor
• Support automatic probe tool .Have 0-10V output port, you can use mach3 software to control the spindle motor speed.4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device
• Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
• Support for limit switch

This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers,it can be used after plugging in the computer. ,suitable for all versions of Windows. Fully supporting all Mach3 versions.

Features: Support for connecting electronic handwheel Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable. Have 0-10V output port, you can use mach3 software to control the spindle motor speed. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device; 1 status LED, indicate connection status on the board.
Specification:
Product name: MACH3 motion control card
Support Axis:4
Support drive type: stepper/servo driver
Maximum step-pulse frequency:100KHz
Weight: Approx.128g/4.5oz

Package list:
1 x Mach3 Motion Card
1 x cable
