Description
- High-Quality Video Capture: This device supports 4Kp60, 1080p240, and 1440p120 HDMI input and loop-through, ideal for high-quality video recording and live streaming.Supports HDR and Variable Refresh Rate (VRR), ensuring high-quality video output and smooth viewing experiences, enhancing user engagement
- HDMI to USB 3.0: Equipped with USB 3.0 interface for fast and stable data transfer. Plug and play functionality with no driver installation required, making setup quick and easy
- Low Latency: With latency under 50ms, this device is suitable for real-time gaming streams and professional video production. Supports HDMI LPCM 5.1/7.1 channel audio
- Compatibility and Interface: Features a USB 3.2 Gen1 Type-C interface compliant with the UVC standard, eliminating the need for additional drivers. Compatible with most third-party video capture software, easy to set up and use
- Compact and Portable: Lightweight and compact design makes it easy to carry and use anywhere. Whether you're at home or on the go, the card is a reliable tool for all your video capture needs
GameDock Ultra
4Kp60, 1080p240, and 1440p120 HDMI input and loop-through.
Supports HDR and VRR input and loop-through.
4Kp60, 1080p120, 1440p60, 10bit HEVC MP4, 10bit HDR recording.
RGB native color video output, up to 1080p60.
Less than 50ms latency.
UVC standard, no need for manual driver installation.
Supports the majority of third-party video capture software.
USB 3.2 Gen1 Type-C high-speed interface, plug and play.
Equipped with the latest ezcap Link software for easy live streaming recording.
Specifications:
Interface: USB 3.2 (Gen 1) Type-C (plug and play, UVC)

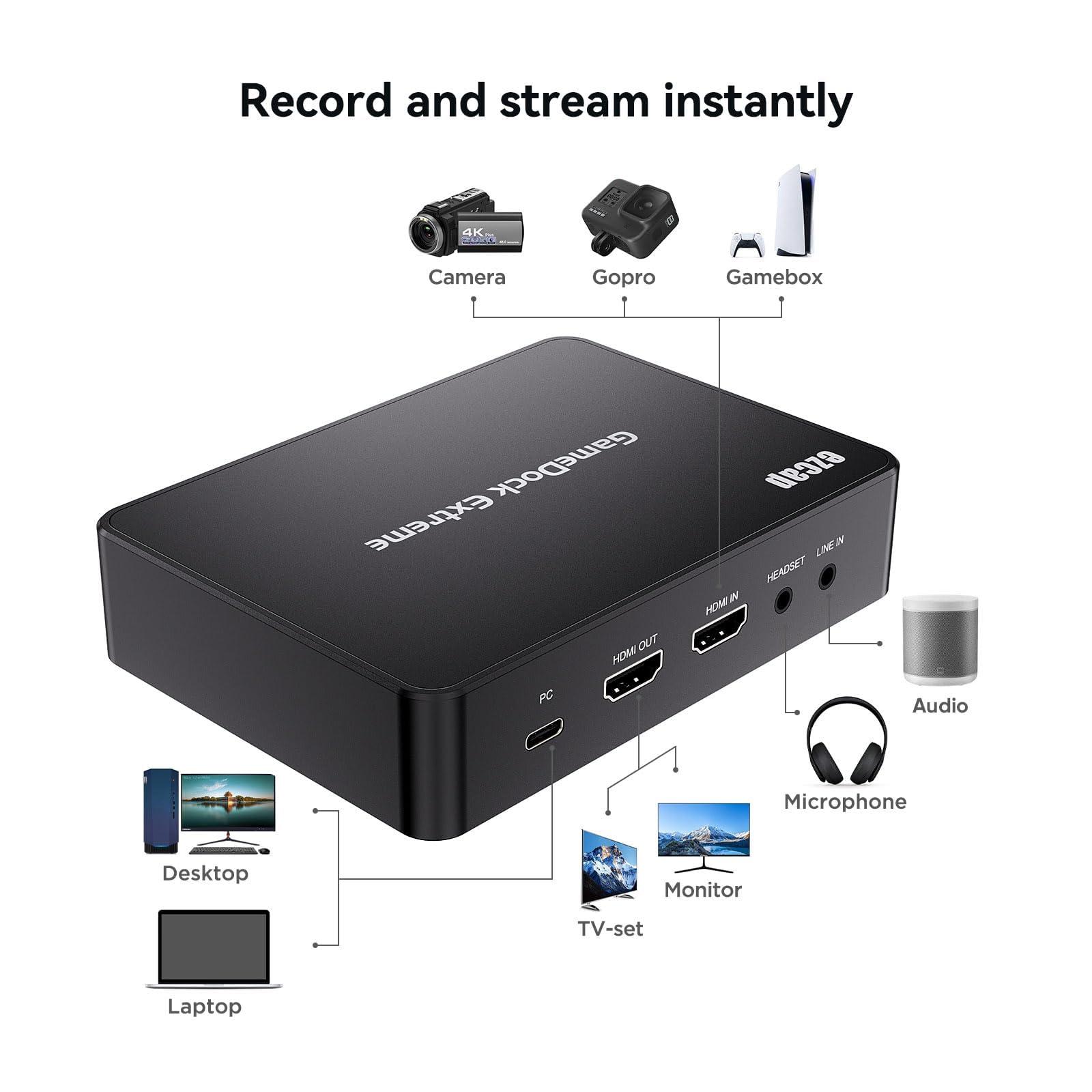

Video input/output (loop-out): HDMI 2.0
Audio input: HDMI 2.0 - Supports LPCM 5.1/7.1 channels, 3.5mm line input (3-pole TRS), 3.5mm headphone input (4-pole CTIA)
Audio output (loop-out): HDMI 2.0, 3.5mm headphone output (4-pole CTIA)
Maximum HDR loop-through resolution: 2160p60, 1440p120, 1080p240
Maximum VRR loop-through resolution: 3840 x 2160 - VRR (48 - 60 Hz), 1920 x 1080 - VRR (48 - 120 Hz). (Note: YCbCr 420 VRR input is not supported. For example, XBOX X1, please select YCC 4:2:2 settings to enable VRR functionality.)
Highest recording resolutions:3840 x 2160 - 60fps/MJPG, 30fps/NV12/I4202560 x 1440 - 60fps/NV12/I420/MJPG, 50fps/YUY22560 x 1080 - 60fps/NV12/I420/YUY2/MJPG1920 x 1080 - 120fps/NV12, 60fps/I420/YUY2/RGB24/MJPG1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG
Status indicator: Red - power on, blue - HDMI signal connected, color slow flashing - device running.
System Requirements:
Windows 10 x64 / 11 x64, USB 3.2 (Gen 1) UVC port x1Desktop: Intel Core i5-6XXX or better, NVIDIA GeForce GTX 1060 or better.Laptop: Intel Core i7-7700HQ or better, NVIDIA GeForce GTX1050 Ti or better.8 GB memory recommended.
macOS 11 / 12, USB 3.2 (Gen 1) UVC port x1Apple M1 or Intel i7 quad-core or better, Radeon Pro 555 (2 GB VRAM), 16 GB 2400 MHz DDR4 memory.
