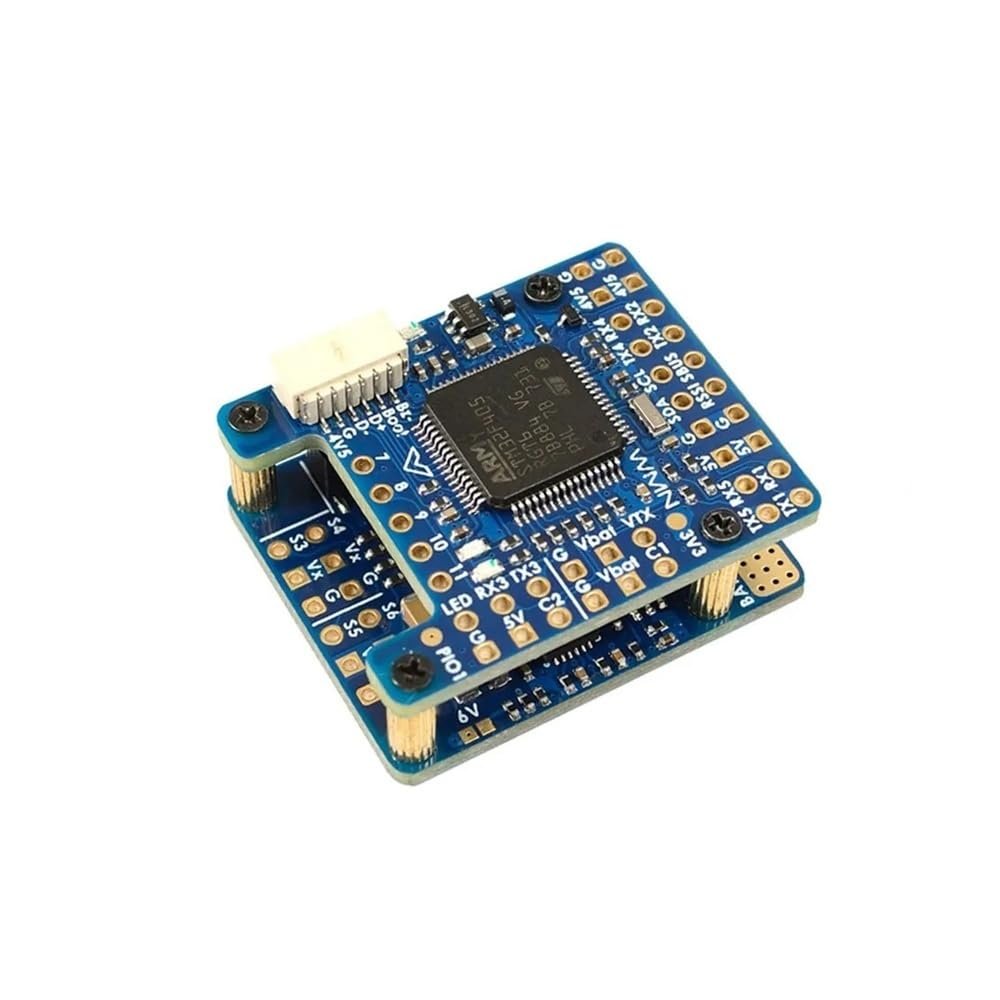

F405-WMN Flight Controller With Baro OSD Blackbox 132A Current Sense For 2-6S LiPo 22X22mm RC FPV Multirotor Airplanes

Description

• Compatibility: Suitable for fixed-wing aircraft, supports INAV 5.0 and above firmware, provides multiple interfaces such as UART and PWM for peripheral expansion
• Power supply: supports 6~30V DC input (2~6S LiPo battery), integrated BEC output 5V 1.5A and servo BEC optional 5V/6V 5A
• Dimensions: Designed to fit standard drone frames.
• Unit: Optimized overall balance for smooth lift delivery.
• Compatibility: Replacement parts support a wide range of models, simplifying installation.

Flight control specifications
MCU: STM32F405RGT6, 168MHz, 1MB Flash
IMU: ICM42688-P
Barometer: SPL06-001
OSD: AT7456E
Black box: 16MB Flash
5 UART interfaces, 1 Softserial_Tx option (INAV)
12 PWM output interfaces
1 I2C interface
3 ADC interfaces (VBAT, current, RSSI)
1 spare PINIO interface
Type-C interface USB/buzzer expander (USB2.0)
UART2-RX interface built-in inverter for SBUS input
Switchable dual camera input
Power supply
6~30V DC input (2~6S LiPo battery)
132A current detection (INAV Scale 250, ArduPilot 40A/V)
PDB/current detection resistor: 90A continuous current, 132A burst current.
Flight control and peripherals BEC 5V 1.5A
Servo BEC Vx 5A 5V 6V optional
Vbat supplies power to image transmission and camera
LDO 3.3V 200mA
Battery voltage : 1k: 20k
Flight control firmware
INAV: MATEKF405TE (INAV 5.0 or higher)
Physical parameters
Dimensions: 31 x 26 x 16.5 mm
Installation dimensions: 22 x 22mm, 2mm
: 10g
Includes:
1 F405-WMN
1 USB (Type-C)/Beep (passive buzzer) + 20cm JST-SH-6P to JST-SH-6P (for USB ).
2.54 pin ( board is not welded and shipped)
Is it electric: no battery
Quantity: 1 piece
Wheelbase: bottom plate
Is it with battery/power supply: no
Is it with charger/adapter: no
Is it including battery: no
Dimensions: 31 x 26 x 16.5 mm
Technical parameters: value 2
Applicable machine type: fixed-wing aircraft
Tools and consumables: assembly category
Four-wheel drive attribute: assembly
control peripherals/equipment: ESC
Upgrade parts/accessories: flight control
control parts and accessories: F405 flight control
Material: composite material
