Description
- Screen Advantage10.4" G104V1-T03 640X480 500nit high brightness WLED full viewing angle LCD Screen,Outline Size 225.5176.39.34 (WHD)mm,Display Area 211.2 158.4(WH)mm,Contrast Ratio 1500:1,CMOS/TTL (1 ch, 6-bit) , 31 pins Connector ,Input Voltage 3.3V .
- LCD Driver BoardVideo Input: VGA,Pls use it in insulated environment.
- Input Power12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

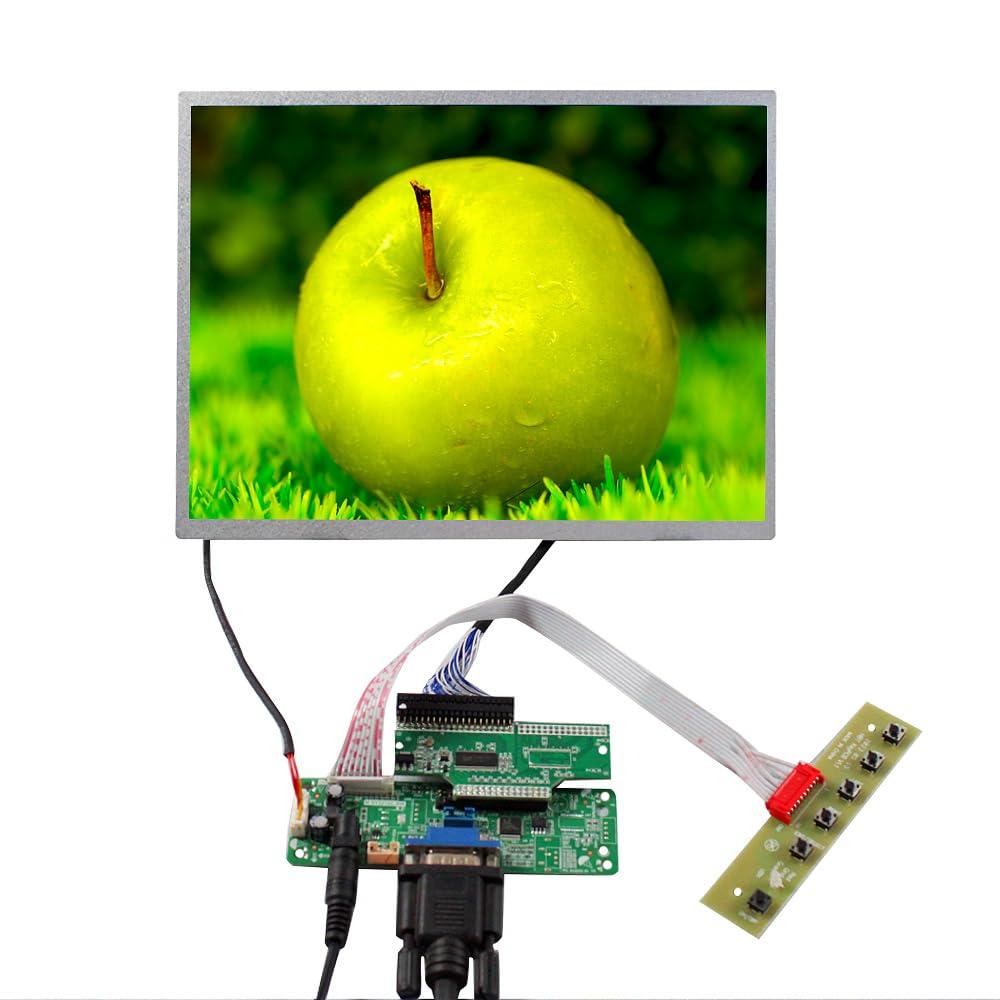

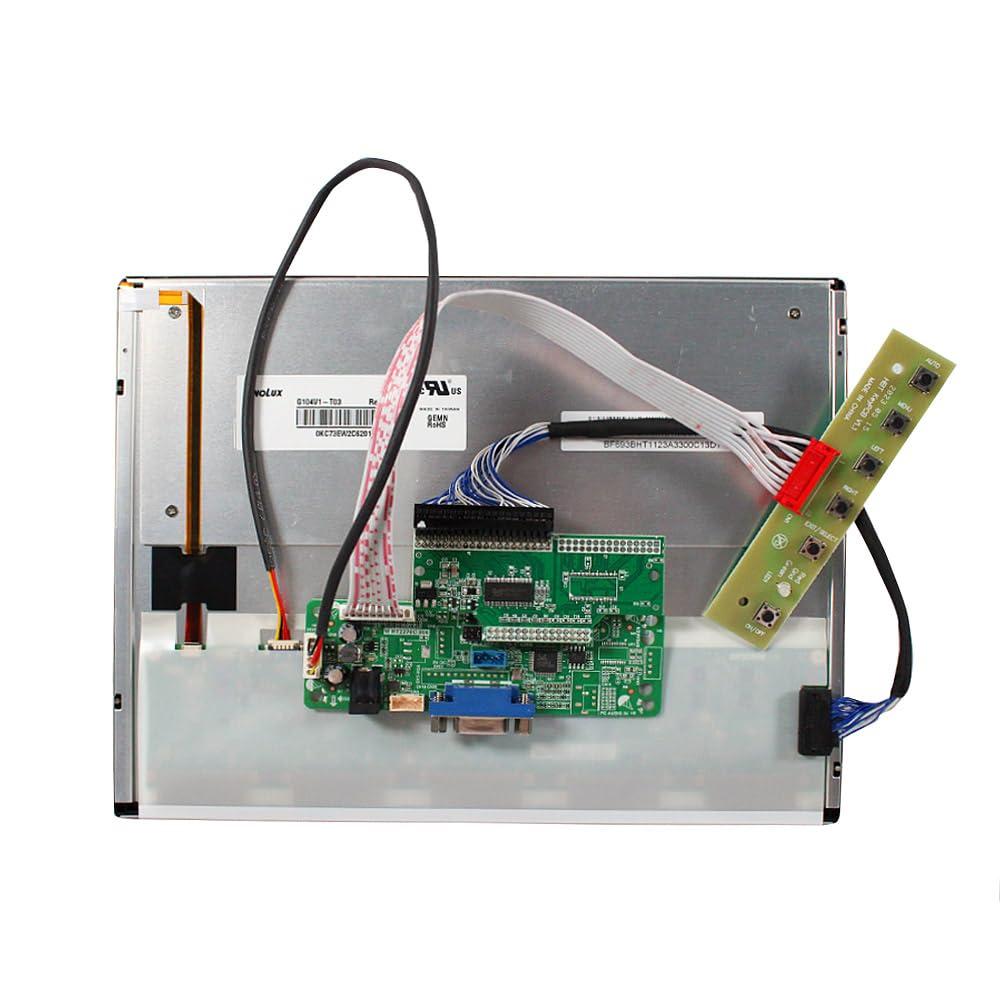

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- Packing lists1 VGA LCD Controller Board RT2270C-806 ,110.4" G104V1-T03 640X480 LCD Screen,1 Inverter Board,1 LVDS Cable,1 Keyboard With Cable

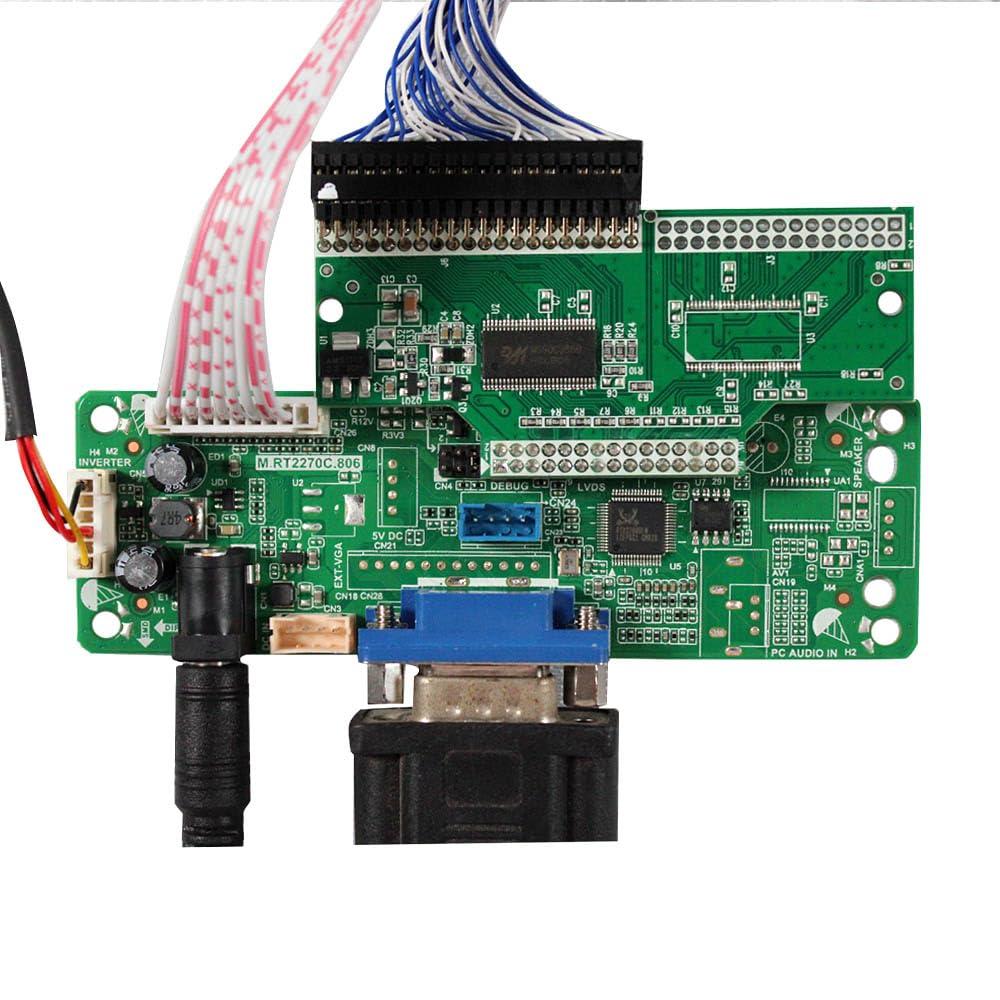

LCD Controller Board:
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 37mm x 18mm
10.4" G104V1-T03 640X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 640(RGB)480, VGA 76PPI
Outline Size 225.5176.39.34 (WHD)mm
Display Area 211.2 158.4(WH) mm
Brightness 500 cd/m (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR10) [Left / Right / Up / Down]
CMOS/TTL (1 ch, 6-bit) , 31 pins Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

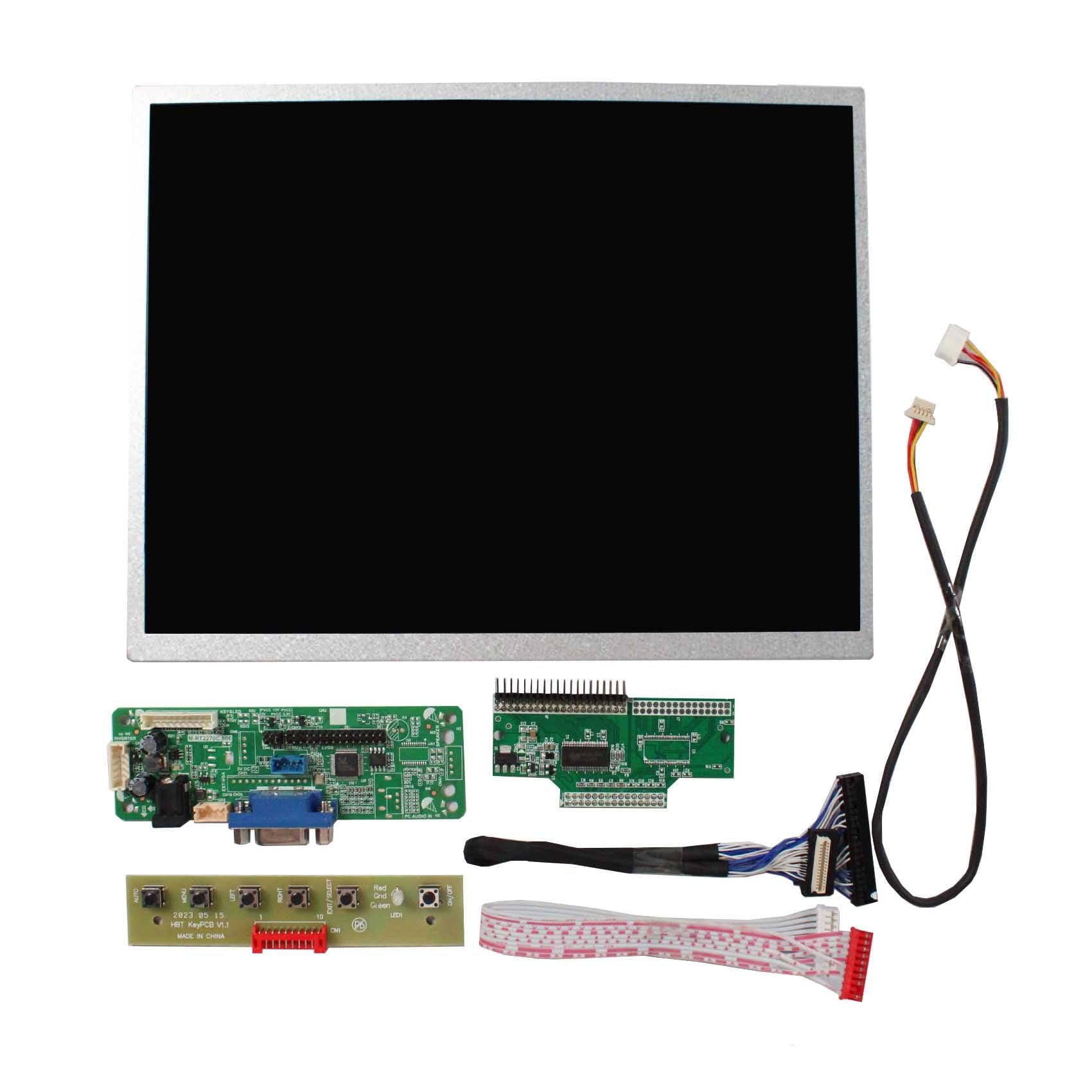

Packing list :
1 VGA LCD Controller Board RT2270C-806
110.4" G104V1-T03 640X480 LCD Screen
1 Inverter Board
1 LVDS Cable
1 Keyboard With Cable
