FCD

FCD - 250M OM4 MTP MTP 12 Fiber Patch Cable | 100G Plenum Multi-Fiber 50/125 MTP to MTP Multimode Jumper 250 Meter (820.21ft) |8 B Type Polarity | 1/10/40/100g mmf qsfp 100gbase 12f MTP

$ 2,409.72
Pseudo Checkbox Icon
Order within 0 hours and 0 minutes to get between -
Buying Bulk?
Delivery Truck IconTracked Shipping on All Orders Secure Payments
Headphones Icon 24/7 Customer SupportReturn Product Arrow Icon14-Day Returns
Description
  • Fiber Cable Description: OM4 MTP/MTP 12 Strand Multi-Fiber Patch Cable - 250 Meter | 100G OFNP Laser Optimized Multimode Fiber (LOMMF), Jumper Cord. Twelve (12) Corning 50/125 optical fiber cores, B type polarity. High bandwidth fiber for high speed, low loss, data transmission. | B Type Polarity.
  • Fiber Cable Description: OM4 MTP/MTP 12 Strand Multi-Fiber Patch Cable - 250 Meter | 100G OFNP Laser Optimized Multimode Fiber (LOMMF), Jumper Cord. Twelve (12) Corning 50/125 optical fiber cores, B type polarity. High bandwidth fiber for high speed, low loss, data transmission. | B Type Polarity.
  • Fiber Patch Cable Details: 250 Meter (820.21 feet), 12 Fiber Patch Cable, Plenum OFNP Rated, 1/10/40/100Gb, Zip-cord Reinforced, Fiber Optic Cable.
  • Core/Cladding: Corning 50m (micron) diameter fiber core / 125m diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core and cladding.
  • Optical Modality Details: Ethernet Over OM4 Multimode Fiber 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Basw-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 10Gb Ethernet 10GBase-SR 400m | 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 150m.
  • Fiber Network Bandwidth: 3600/500 MHz-km @850/1300 nm (OM4 - Optimized for 850nm VCSELs / higher speed).

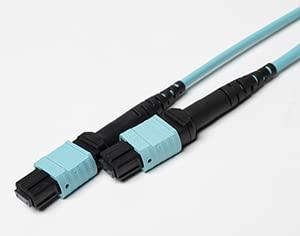

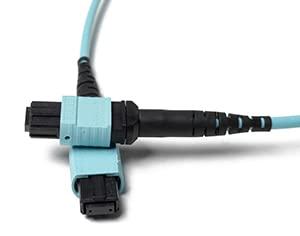

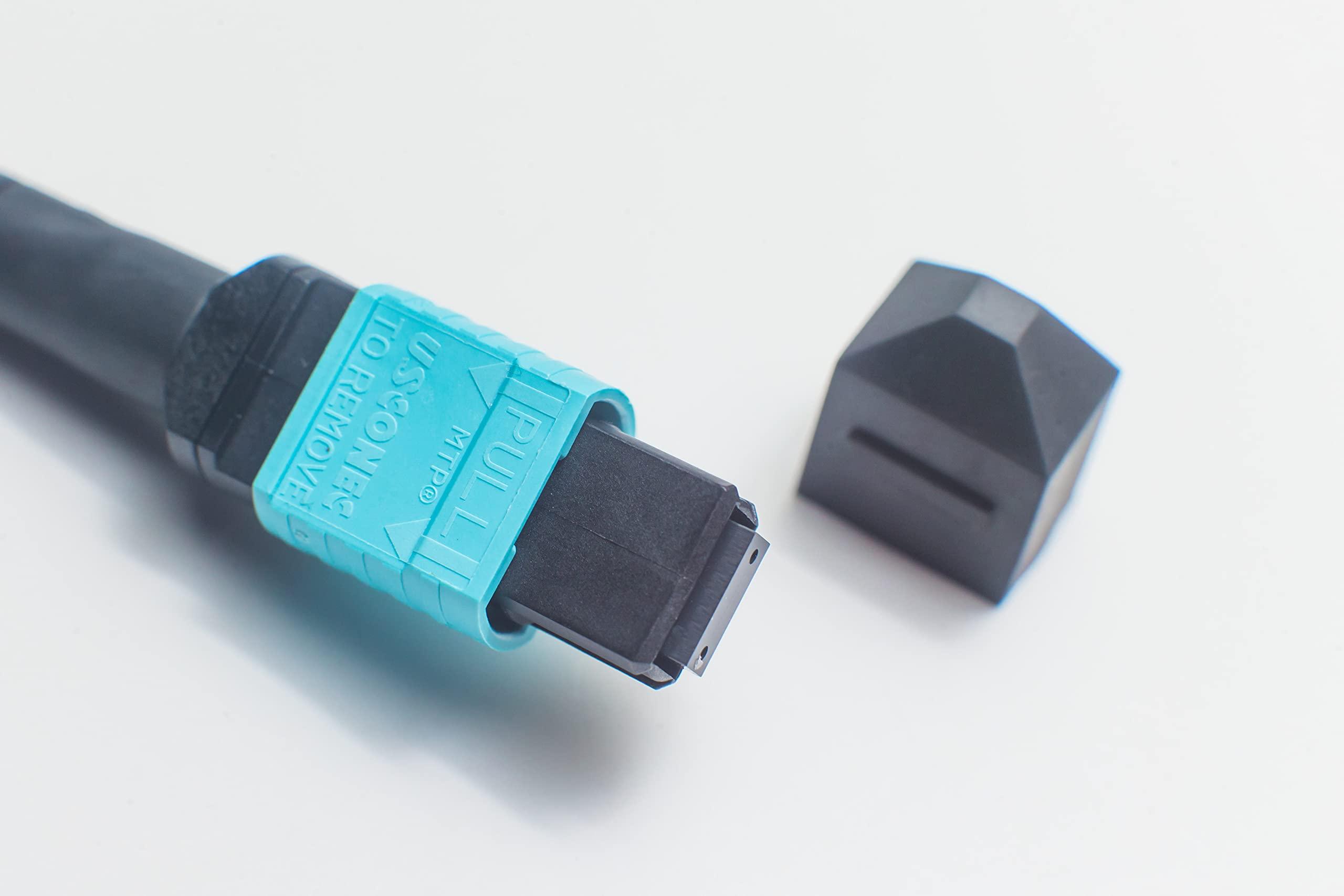

250 Meter OM4 MTP MTP 12 Multi-Fiber Optical Patch Cable, OFNP Plenum Rated 100Gb Multimode 50/125 Corning fiber core/cladding. Terminated with female MPO/MTP 12 fiber strand connectors (no pins), B type polarity. Connector insertion/return loss:
- Maximum Insertion Loss: 0.50 dB
- Typical Insertion Loss: 0.30 dB
- Typical Return Loss -25 dB.

MTP connector has 12x 50/125 fiber cores. This plenum rated OFNP, 1/10/40/100Gbps, aqua distribution fiber cable is UV resistant, water resistant, flame retardant and free from electromagnetic interference.
Engineered for fast and reliable connectivity between switches, transceivers, media converters, patch panels and other 1/10/40/100g fiber optic equipment. Supports Fast Ethernet, 100 Gigabit Ethernet, SFP+, QSFP+, Fiber Channel, OIF, ATM, VCSELs and other service provider applications. Ethernet Over OM4 Multimode Fiber Details:
Modal Bandwidth 3500/4700MHz-km 850nm/1300nm
- Fast Ethernet 100Basw-FX 2000m
- 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning cord)
- 10Gb Ethernet 10GBase-SR 400m
- 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4)
- 100Gb Ethernet 100GBase-SR10 150m

Every fiber optic patch cable FiberCablesDirect ships is individually tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician and carefully packaged with test results. We provide 35+ popular length options in our online catalogs between 0.5 and 300 meters that can ship the same day. Expedited Next Day, 2 Day, 3 Day, Ground and other delivery options available from USPS and UPS. FedEx service options also available for international orders. We do it right with quality products, superior packaging and fast delivery anywhere in the world.
