Description

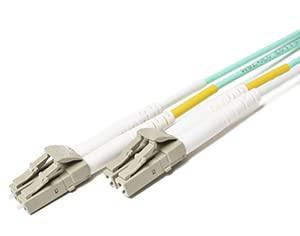

- Fiber Cable Description: OM4 LC to LC Fiber Patch Cable 150 Meter | 100gig Duplex Multi Mode fiber optic cable, 50/125 Corning optical fiber, Aqua, OFNP (plenum rated), 2.0mm outer diameter, zip-cord reinforced, Plenum jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
- Fiber Cable Description: OM4 LC to LC Fiber Patch Cable 150 Meter | 100gig Duplex Multi Mode fiber optic cable, 50/125 Corning optical fiber, Aqua, OFNP (plenum rated), 2.0mm outer diameter, zip-cord reinforced, Plenum jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
- Fiber Patch Cable Details: 150 Meter (492.12 feet), plenum duplex (2 fiber strands), 2.0mm outer diameter, zip-cord reinforced, LC to LC terminated (Max Connector Loss: 0.50 dB, Typical Connector Loss: 0.30 dB, Typical Return Loss -55 dB), Multimode Fiber (MMF) Optical Patch Cable / Jumper Cord.
- Core / Cladding: Corning 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
- Optical Modality Details for OM4 Ethernet Over Multimode Fiber: 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Basw-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 100Gb Ethernet 10GBase-SR 400m | 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 150m.
- Durable Commercial Grade Construction, Cost Effective and Built to Last | 100% Lifetime Warranty On All Products Purchased From Fiber Cables Direct.
OM4 LC LC 40/100Gb Plenum 50/125 Multimode Duplex Fiber Optic Cable. OFNP multimode fiber (mmf) optical assembly with self-extinguishing, flame retardant, UV resistant, plenum rated jacket, Corning 50/125um fiber core, zip-cord reinforced and terminated with small form factor 1.25mm ceramic ferrule LC connectors including duplex lc clips
