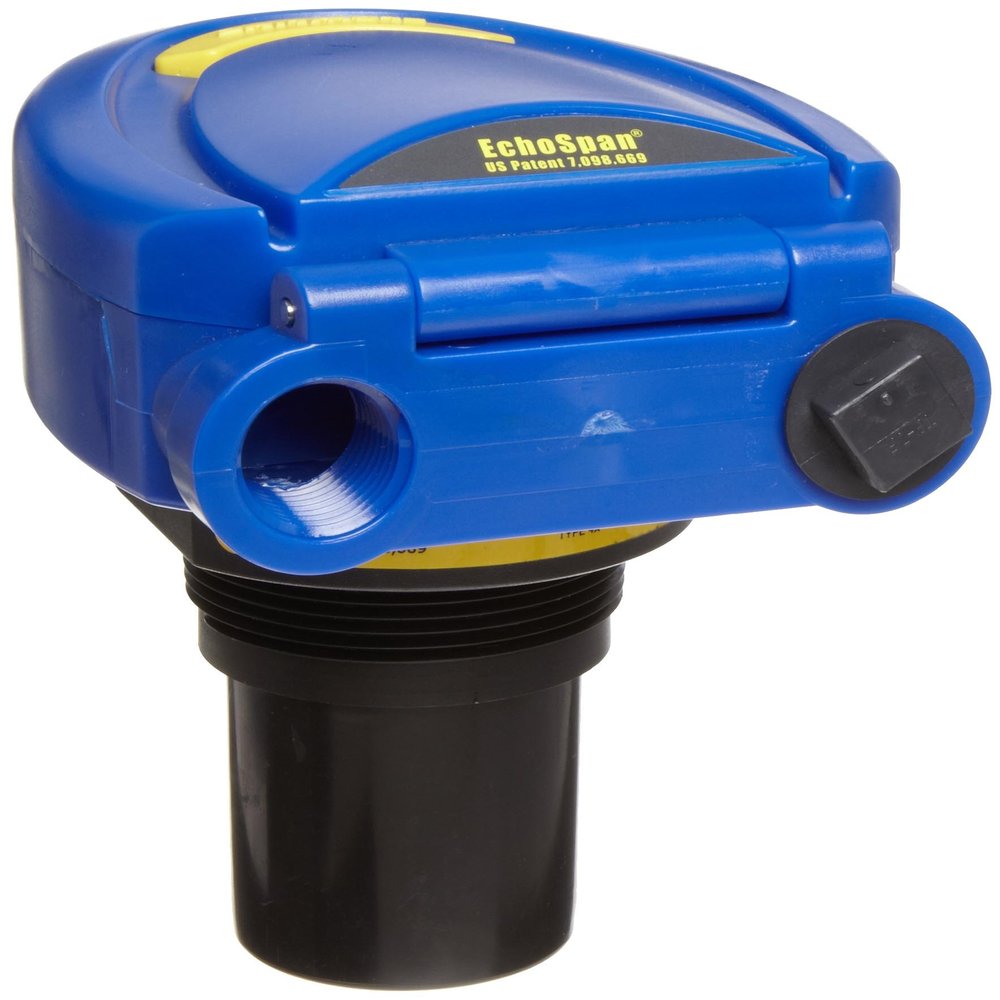

FLOWLINE LU81-5101 12-28 VDC Operating Voltage, 18FT/5.5M Sensing Range, 2IN Male NPT Process Connection., 4-20 MA, LCD Digital Display with PUSHBUTTONS

Description

• 12-28 VDC OPERATING VOLTAGE
• 18FT/5.5M SENSING RANGE
• 2IN MALE NPT PROCESS CONNECTION.
• 4-20 MA
• LCD DIGITAL DISPLAY WITH PUSHBUTTONS

The general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8' with a 4-20 milliampere signal output, and is configured via its integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications. Automatic temperature compensation for accurate measurement. Configuration is fast and simple with the scrolling single layer menu, 3-button interface and 6-segment LCD display. Troubleshooting is easy with our powerful setup and diagnostic modes. Setup displays the transmitters calibration set points and diagnostics provides users with a snapshot of the installed sensor performance in the application. Range: 8" to 16.4'. Accuracy: +/- 0.2 percent of range. Resolution: 0.039". Dead band: 8". Beam width: 3". Configuration: push button. Memory: non-volatile. Display type: LCD, 6-digit. Display units: Inch, cm and percent. Supply voltage: 12-28 VDC. Loop resistance: 500 Ohms at 24 VDC. Signal output: 4-20 milliampere, two-wire. Signal invert: 4-20, 20-4 milliampere. Signal fail-safe: 4, 20, 21, 22 milliampere or hold last. Process temprature: -7 to 140 degreeF. Temprature compensation: automatic. Ambient temprature: -40 to 160 degreeF. Pressure: MWP equal to 30 psi. Enclosure rating: NEMA 4X (IP65). Enclosure material: polycarbonate. Enclosure hardware: brass and stainless. Enclosure vent: water tight membrane. Conduit entrance: dual, 1/2" NPT. Transducer material: PVDF. Process mount: 2" NPT. Mount gasket: Viton. Classification: general purpose. Compliance: CE, RoHS.
