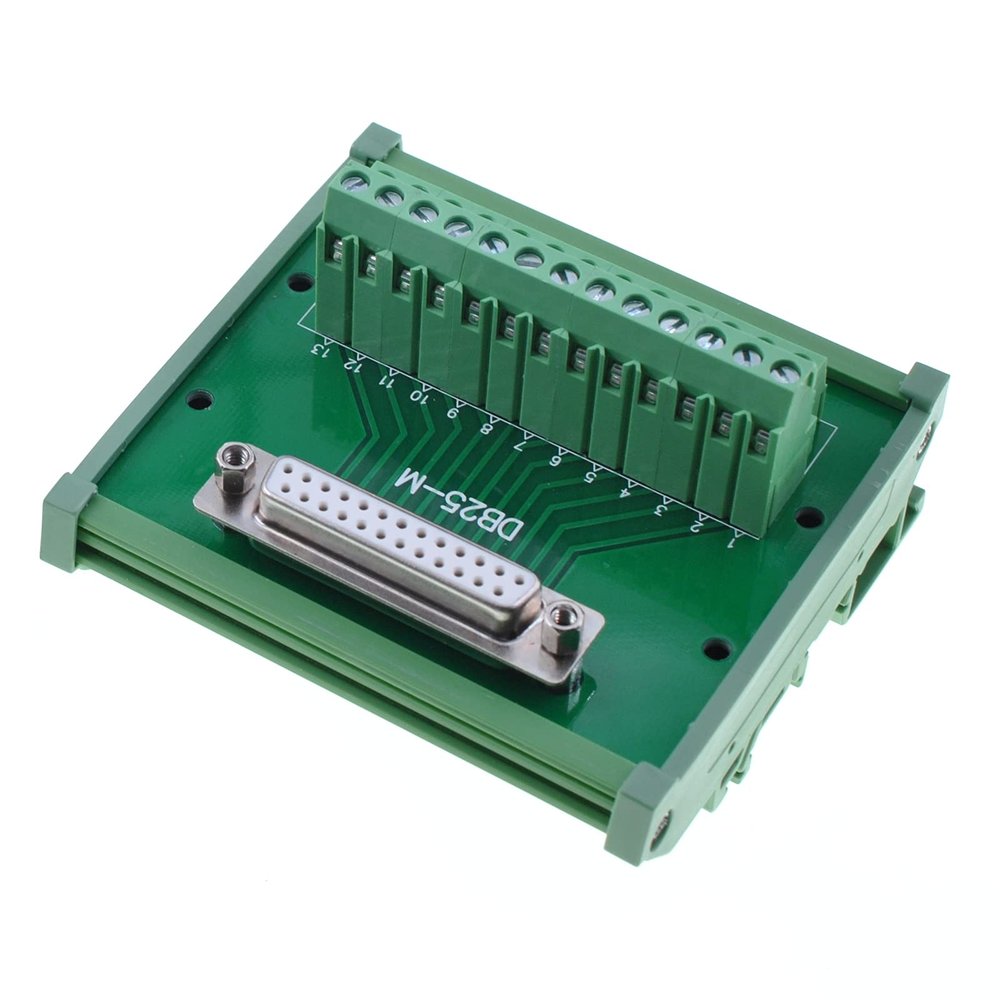

Ganasome DB25 D-Sub Female Header Breakout Board Terminal Block for DIN Rail Mounting, 35mm C45 Rails

Description

• PRODUCT PARAMETERS: This is DB25 DIN rail mount interface module, female connector breakout board, terminal block. Size: 8.5 x 5.5 cm / 3.35 x 2.17 in.
• HIGH QUALITY MATERIAL: This Male DB25 connectors is made of high quality material, Eco-friendly terminal and by delicate workmanship treatment, with long serving life.
• PERFECT DESIGN: The DB25 Din Rail Mountable has a compact structure, made up of screw terminal block, high quality PCB carrier, FR-4 glass fiber PCB.
• EXCELLENT STABILITY: Gold plated DB head, for enhancing the stability of signal transmission.
• APPLICATION: Din rail mountable, used for C45 rails of 35 mm width. Din mount case can be taken apart for panel mount use.

Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C.
Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
FR-4 fiber glass PCB, dual copper layers.
