Description

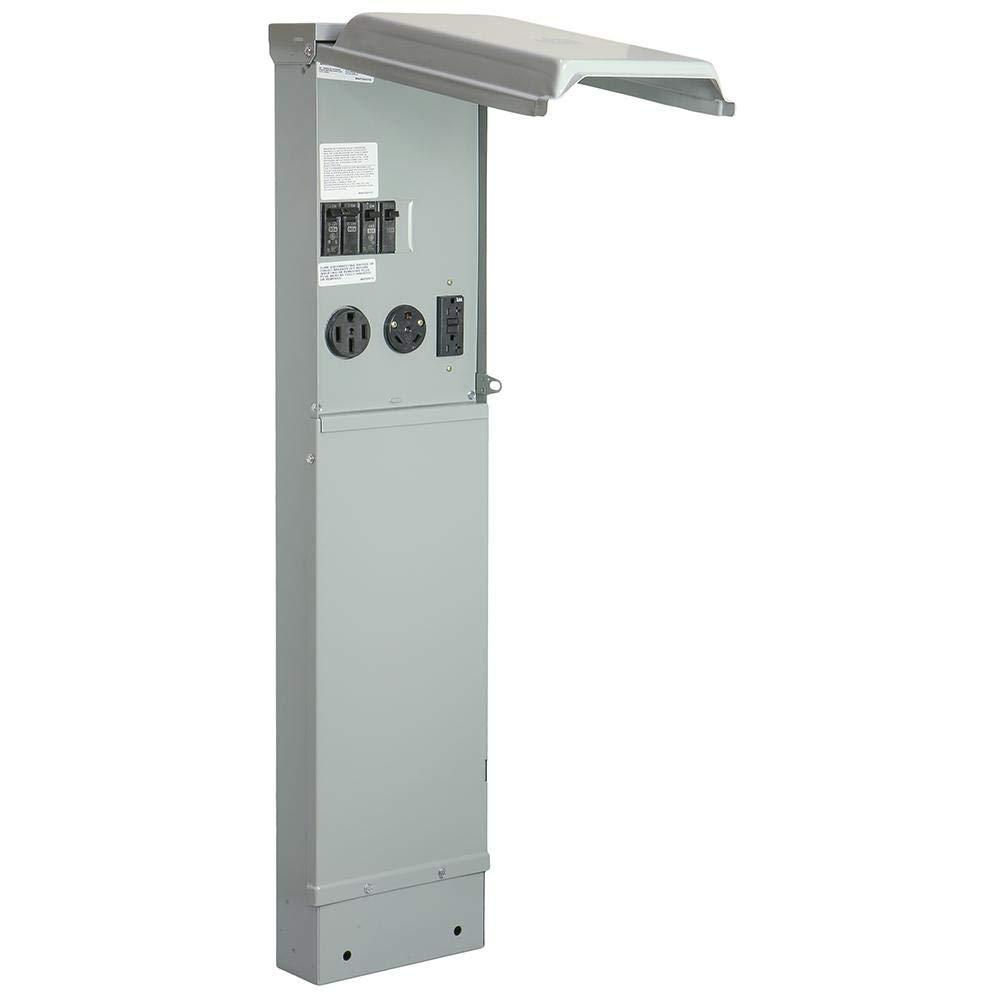

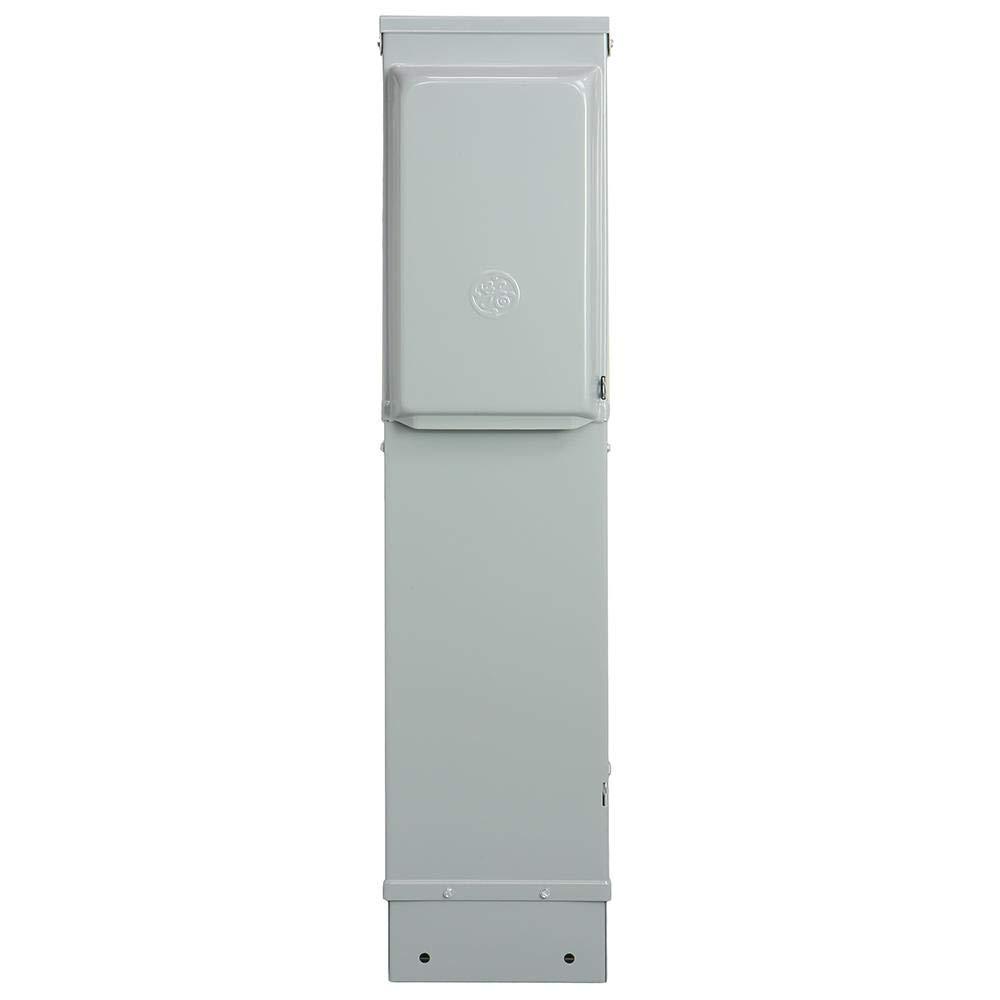

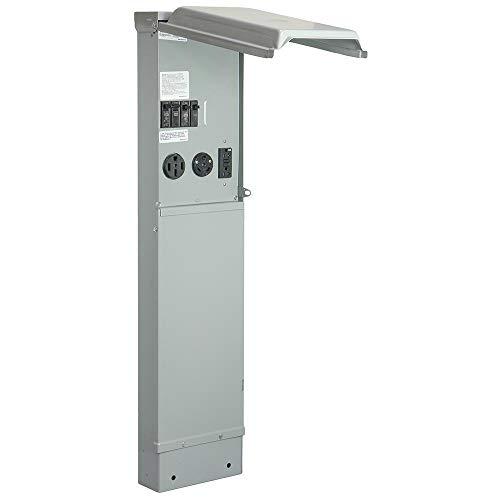

This pad mount RV pedestal is lockable and engineered for maximum protection of receptacles, cords, plugs, breakers. It comes to the construction job site ready to install with no need to assemble individual parts, saving installation time. The dual, heavy-gauge NEMA 3R rainproof enclosures protect against weather, vandalism and nuisance tripping. The unit complies with National Electrical Code and OSHA requirements.
Installed receptacles: 1-50 Amp 240-Volt, 1-30 Amp 120-Volt and 1-20 Amp GFCI
Single 100 Amp power head pad mount pedestal
All components are factory wired and assembled, reducing installation time
Installed breakers; 1-THQL2150 240-Volt breaker, 1-THQL1130 120-Volt breaker, 1-THQL1120 120-Volt breaker
All-in-one construction for factory assured terminations
All terminals accept copper or aluminum wire for added installation flexibility
UL listed
Heavy galvanized zinc coated steel, with highest quality electro-deposition finish - resists corrosion and fading
Dead front construction prevents accidental contact with live parts
Padlock provision can prevent unauthorized entry
Rolled edge door for cord protection
5 spaces/5 circuit capability and 1 open space available
Underground feed
Power outlet door has stay-open position for user convenience
Voltage (volts): 240
Maximum Amperage (amps): 100
Mounting type: Plug In
Product Weight (lb.): 22.00 lb
Load Center Type: Temporary Power
Number of Phases: 1
Electrical Product Type: Distribution Load Center / Breaker Accessory
Number of Spaces: 5
Manufacturer Warranty: 1 year
Certifications and Listings: 1-UL Listed,cUL Listed
Load center depth (in.): 5.6
Load center height (in.): 41.1
Load center width (in.): 9.5
