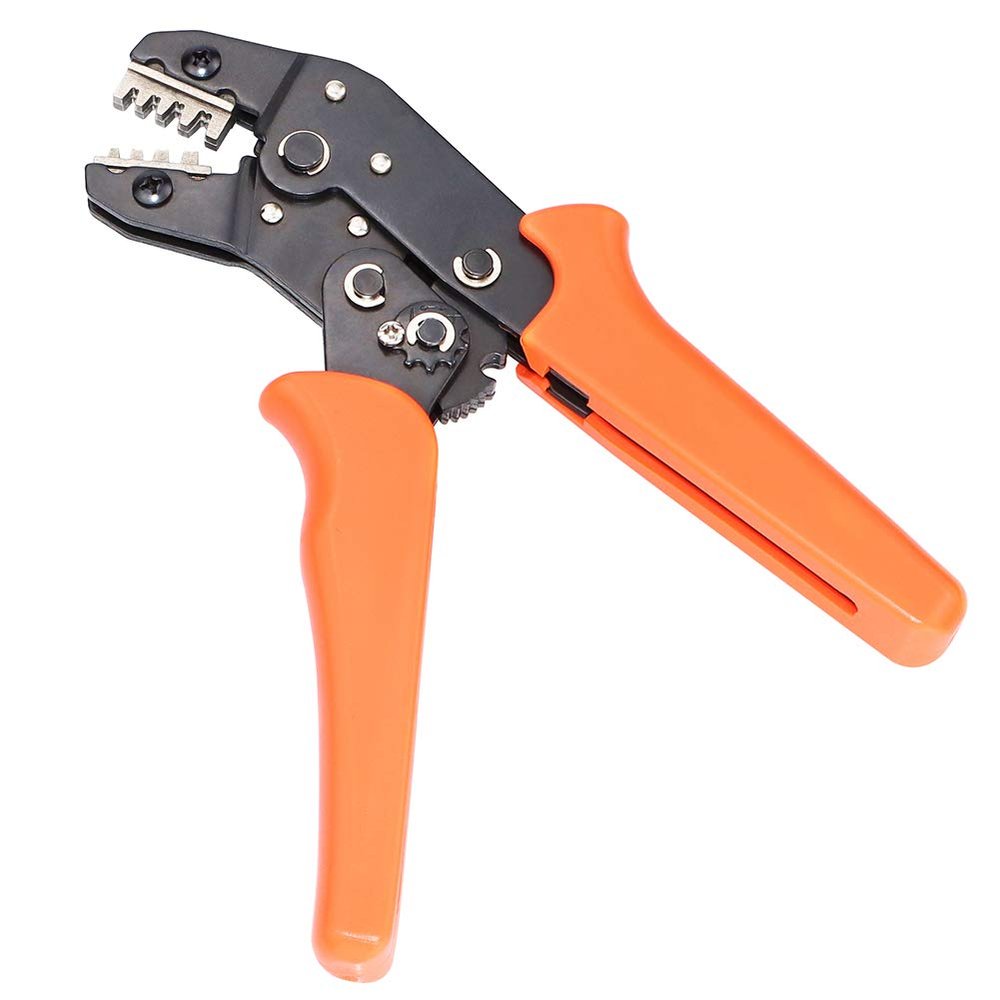

GeeBat Crimping Tool Crimper Plier Ratcheting Wire Pin Connectors for AWG28-16 (0.1-1.5mm) PH2.0mm/XH2.54mm/Dupont 2.54mm/TAB 2.8mm 3.0mm 3.96mm 4.8mm/KF2510/JST Servo Terminals (Crimping Tool)

Description

• Crimping capacity: 0.1-1.5mm; AWG 28-16.
• Length :190mm; Jaw Thickness: 5mm.
• Material: High-carbon Steel. Wire-electrode cutting die sets promise a high-precision crimping result.
• Our pliers come with jaws that support 4 sizes of connectors, that's to say "Buy one means a combined purchase of 28B, 48B and 01BM".
• For PH2.0mm/XH2.54mm/Dupont 2.54mm/TAB 2.8mm 3.0mm 3.96mm 4.8mm/KF2510/JST Servo Connectors Terminals.

Wanna buy the connectors kit together? Just search

- JST Connector Kit ASIN ***B01MCZE2HM***
- Dupont Connector Kit ASIN ***B01M7V1X88***
- KF2510 Connector Kit ASIN ***B01M69TKAM***

The First Mouth:
Applied to: AWG 22-20; 0.08-0.5mm.
Terminals: PH2.0mm/XH2.54mm.

The Second Mouth:
Applied to: AWG 28-24; 0.25mm.
Terminals: Dupont 2.54mm / KF2510 / XH2.54mm.

The Third Mouth:
Applied to: AWG 22-20; 0.5mm.
Terminals: TAB 2.8mm/3.0mm.

The FOURTH Mouth:
Applied to: AWG 20-18; 1.0mm.
Terminals: TAB 3.96mm.

How to use it?
* Leave the pinhead (contact to be crimped) on the punching tape, but insert it from the right side and in the correct position;
* Stripping the cable with approx. 4 mm;
* Press fully until release;
* Check how firmly the cable is crimped, maybe press it a second time.

Package Included:
1* Crimping Tool
