Description

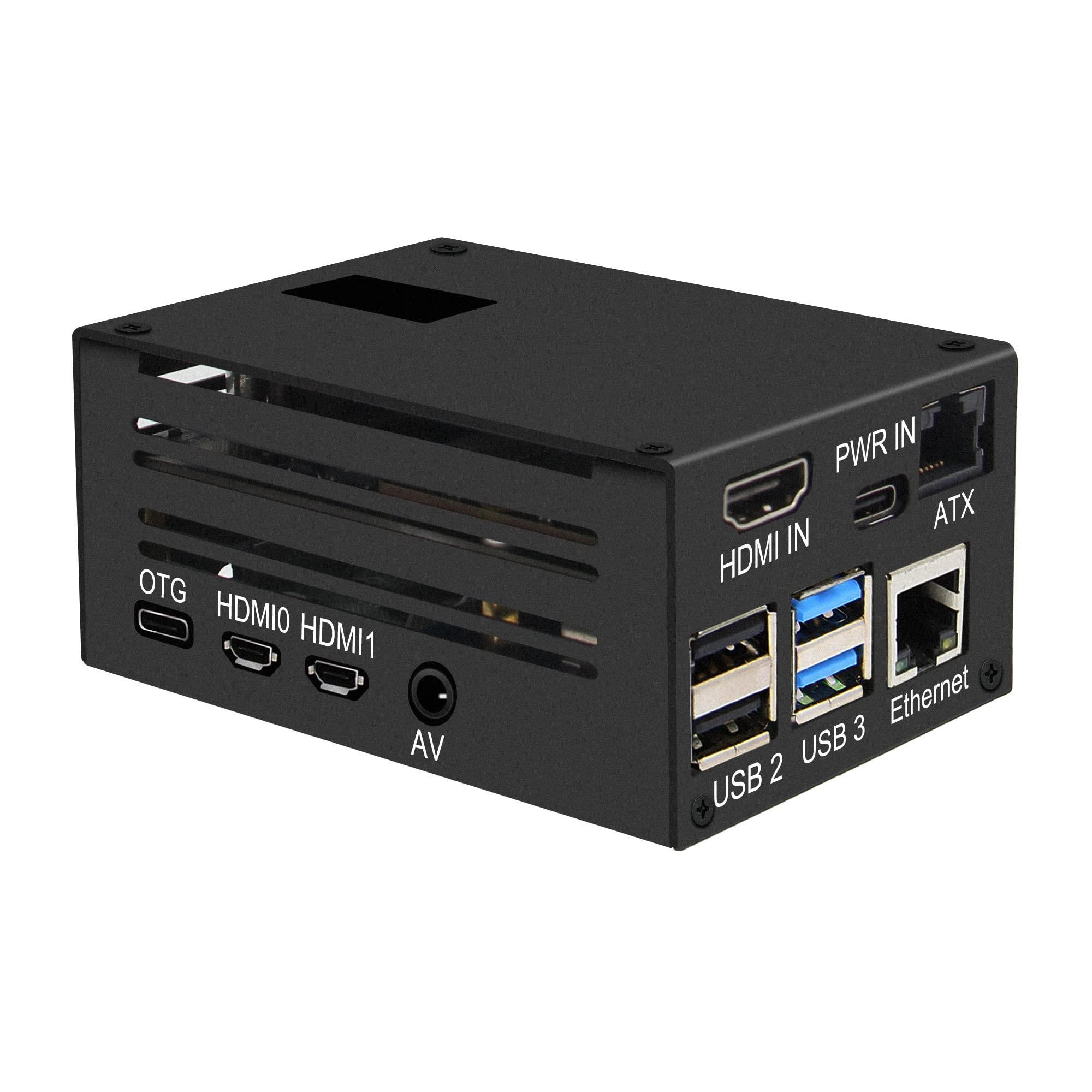

- What is it: This kit allows user to realize a KVM project with Raspberry Pi 4 which can control a computer using a web browser; Model: KVM-A3; Unassembled
- Compatiblity: for use with Raspberry Pi 4 Model B 8GB/4GB/2GB/1GB only ( The Raspberry Pi 4 is not included); NOT SUPPORT Raspberry Pi 5
- Function: Remotely turn on/ turn off / restart your computer; configure configure the UEFI/BIOS; reinstall the OS using the Virtual CD-ROM or Flash Drive; remote use your keyboard and mouse; Simulate a keyboard, mouse, and a monitor and presented in a web browser etc
- User Manual: Google Geekworm WiKi search KVM-A3 for hareware installation and software configuration guide
- How to Power: Power Input: 5.1Vdc +/-5% , 3A; Power Via USB Type-C port of X630-A3 (DON'T power via Raspberry Pi's TYPE-C port, because it is occupied as USB OTG)
- What Included: 1 x KVM-A3 Metal Case with Accessories, 1 x X630-A3 V1.3 Expansion Board with Accessories, 1 x X630-A5 V1.0 Adapter Board with Accessories, 1 x X630 HDMI to CSI-2 Module with Accessories, 1 x Ethernet Cable(1m length), 1 x0.96 inch OLED Module
- How to Cool: X630-A3 comes with a cooling fan to cool the Raspberry Pi 4
- Extra Need to be Prepared: Raspberry Pi 4, TF Card, HDMI Cable, Power Adapter (Not included, need to prepare by yourself)
