Description

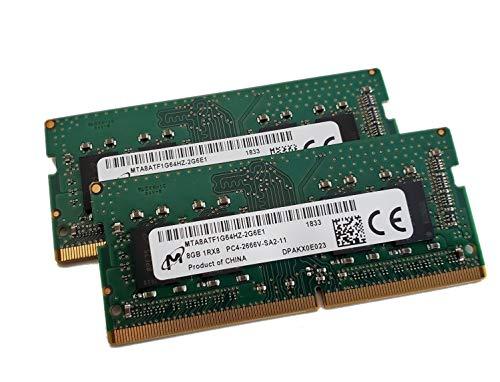

- Form Factor 260PIN SODIMM
- Total Capacity 16GB kit (2 x 8GB)
- Fast data transfer rates: PC4-3200, PC4-2666, or PC4-2400
- Speed 2666 MT/S, Voltage 1.2V
- DIMM Type Unbuffered
DDR4 functionality and operations supported as defined in the component data sheet 260-pin, small-outline dual in-line memory module (SODIMM) Fast data transfer rates: PC4-3200, PC4-2666, or PC4-2400 8GB (1 Gig x 64) VDD = 1.20V (NOM) VPP = 2.5V (NOM) VDDSPD = 2.5V (NOM) Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2C serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Gold edge contacts Halogen-free Fly-by topology Terminated control command and address bus
