Description

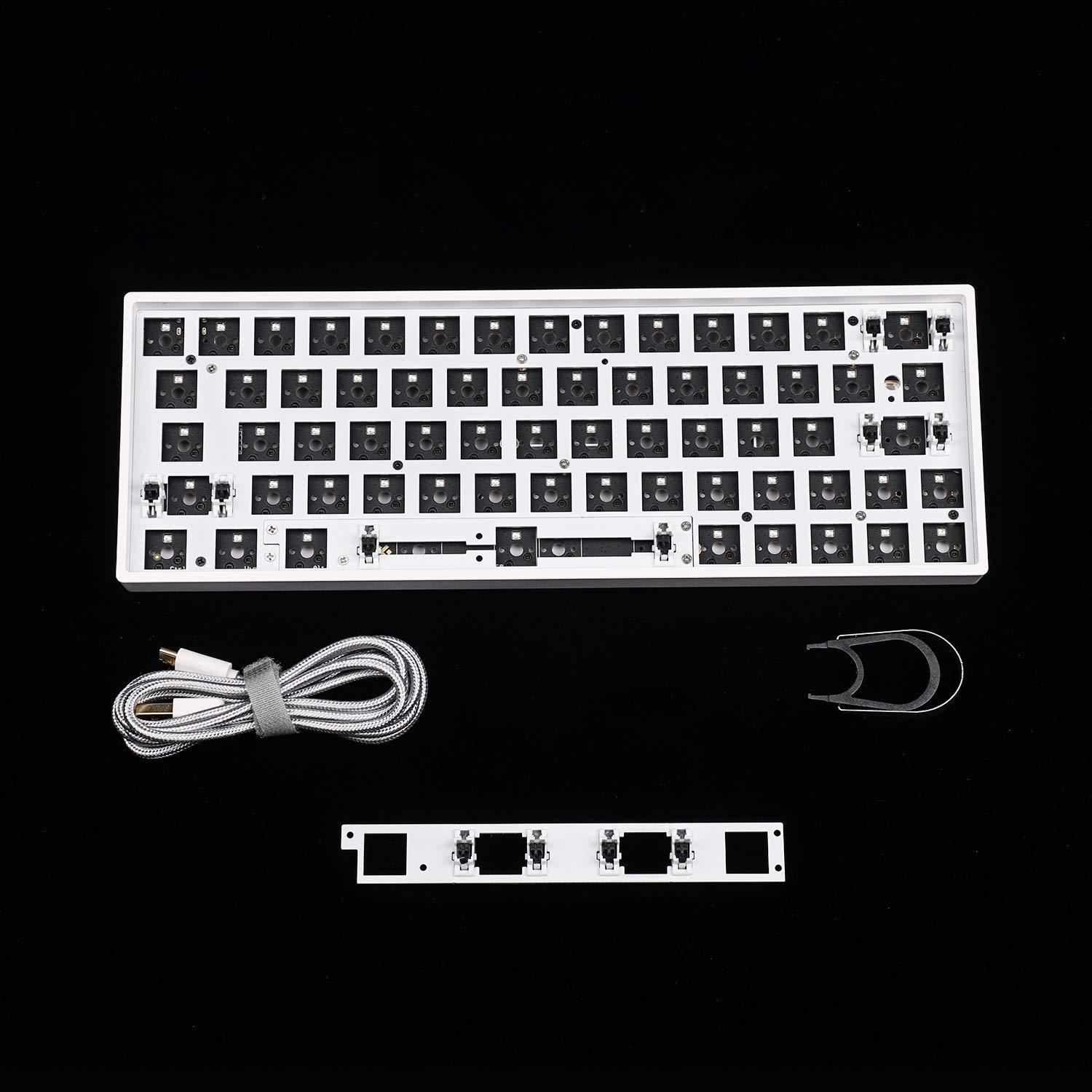

- Package Included:Plastic Case + Feet + Stabilizers + GK64x Hotswap Type C PCB + Plate + Cable + Removal Tool + Space Module.This is DIY kit,after you assemble it,if you have issue with leds or any keycode,just message us directly is ok.We will help you solve directly.If can't solve,can replace PCB for you.
- Pls note:GK64x is wired kit.The PCB is fully programmable with GK software,the Fn key is the last key at the bottom and can't change place.If some keys not working after plugging,please check whether your switch pin is bent or not.Make sure plug in 90 degree above plate

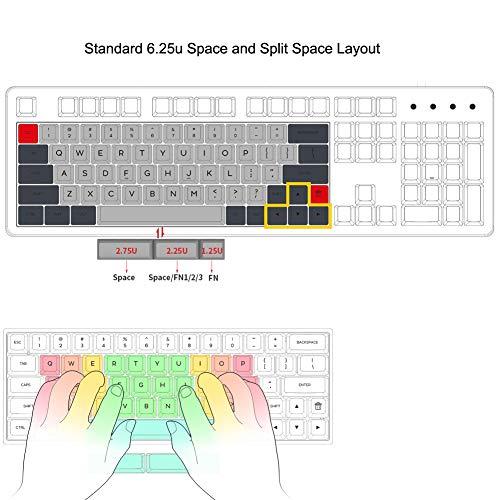

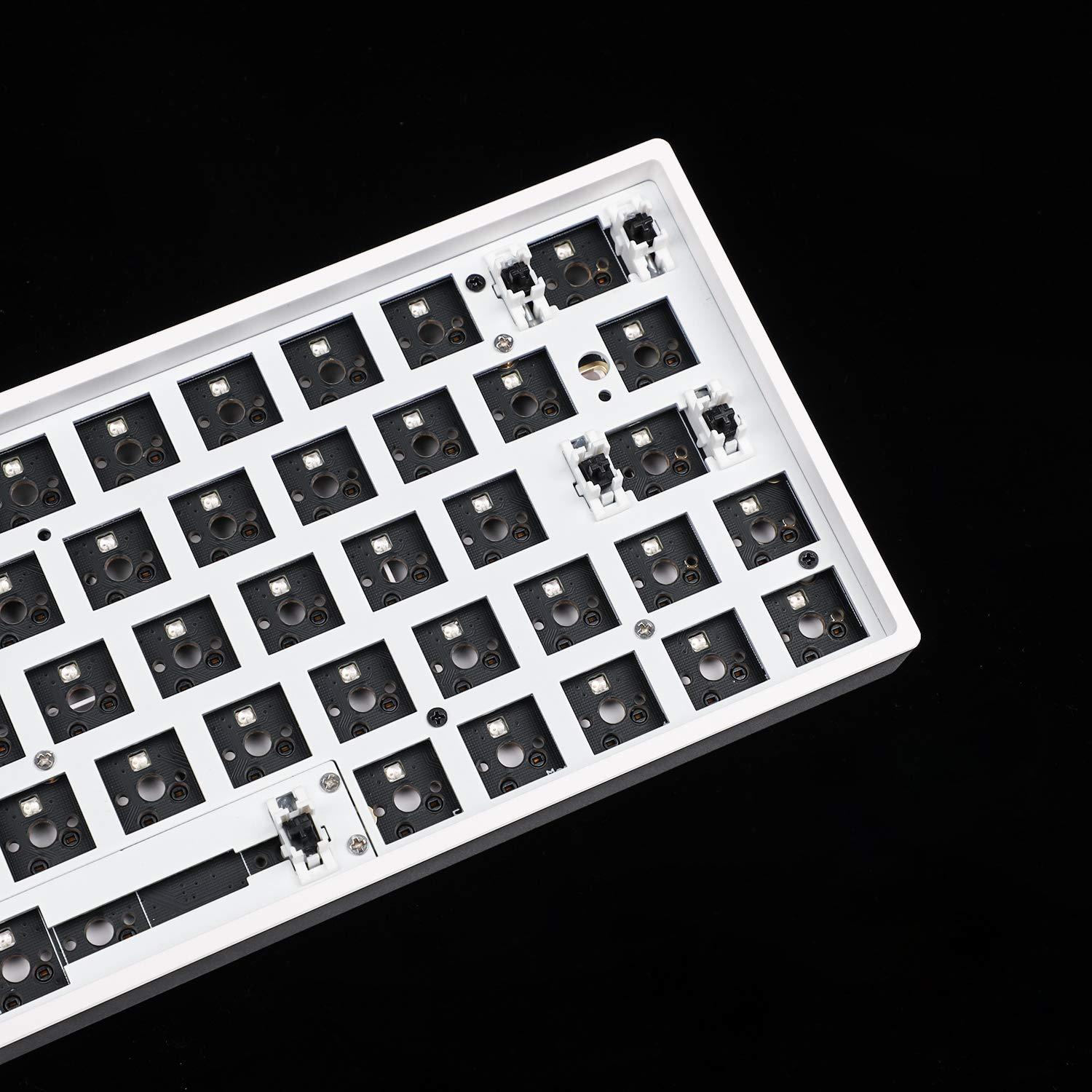

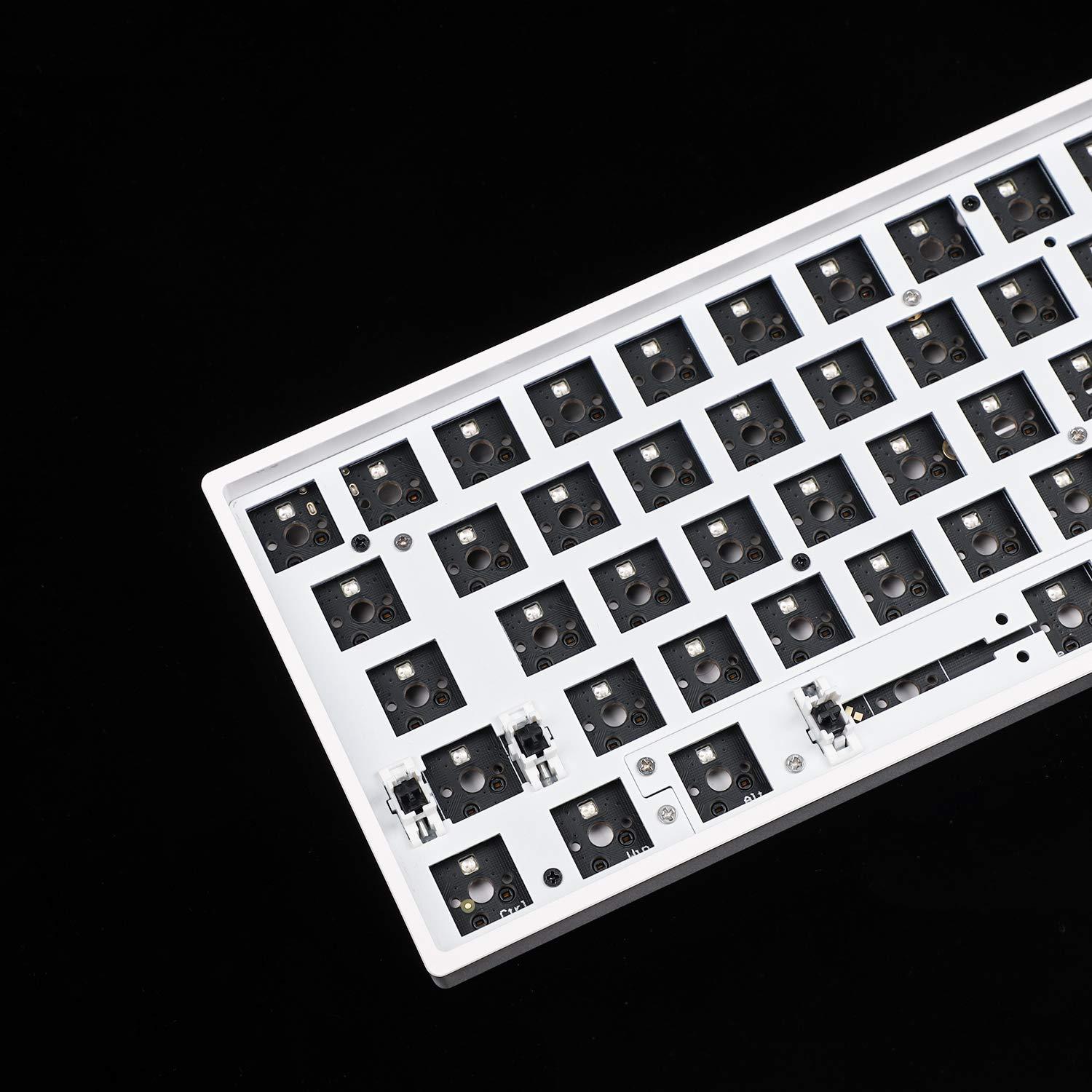

- This kit support 6.25u space and split double space.This plate is screwed to case directly.So if you want to replace normal GH60 case,you need to replace a non -replacable GH60 size plate is ok.
- PCB has RGB presoldered,it's under per switch.This kit need to use Cherry MX switches and clones,optical switches is not supported
- There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in PCB is ok,no need soldering again.3 pin 5 pin both are ok
- If you want to pull PCB off the case,please remove the plate off totally at first and then pull the PCB out.Or it may break the PCB USB port.
- This PCB can only support Type A to C cable.Type A to A is not working
- To replace space bar module,only need remove 2 screws on space module is ok.
Details
GK64X is wired edition which is upgraded for GK64.PCB is black high quality.GK64XS is bluetooth edition upgraded for GK64s,battery is 1900mah.Bluetooth edition support wired and bluetooth both.

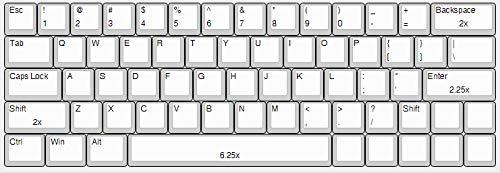

The one sold in this link is replacable plate which support 6.25u space as well as 2.25u 2.75u split space.The space is screwed to case directly.So if you want to replace normal GH60 case,you need to replace a non -replacable GH60 size plate is ok.
The stabilizers is produced by Gateron factory which is better than before.For linear switches,please unistall the stabilizer and clip it to get better tactile feeling.If clicky switches,can just keep the status..

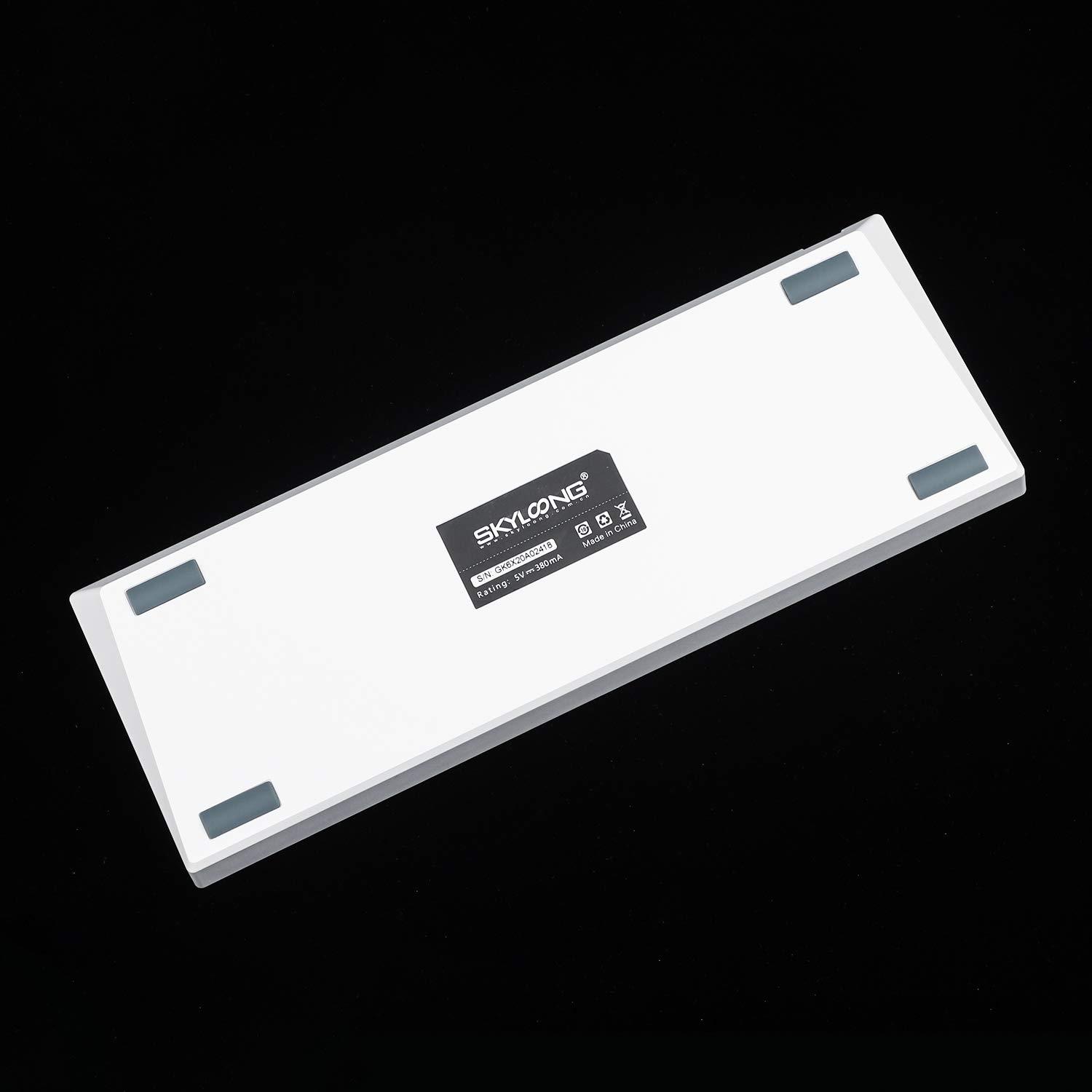

GK64x /GK64xs adds insert pin for underglow RGB strip now. The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.
Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change.

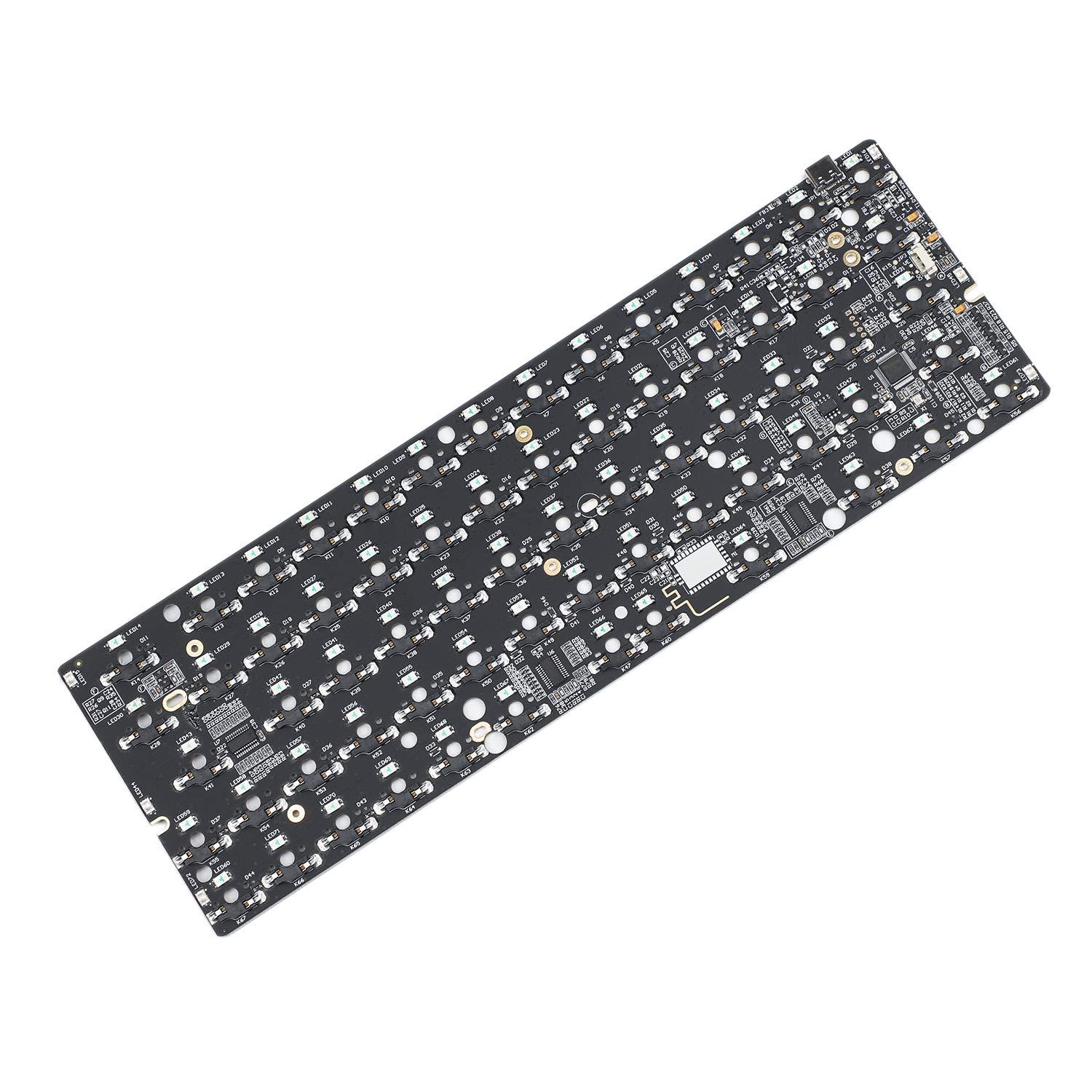

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.
PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered.
PCB is programmable with the software GK6x Plus (Can download on official website)
